7.

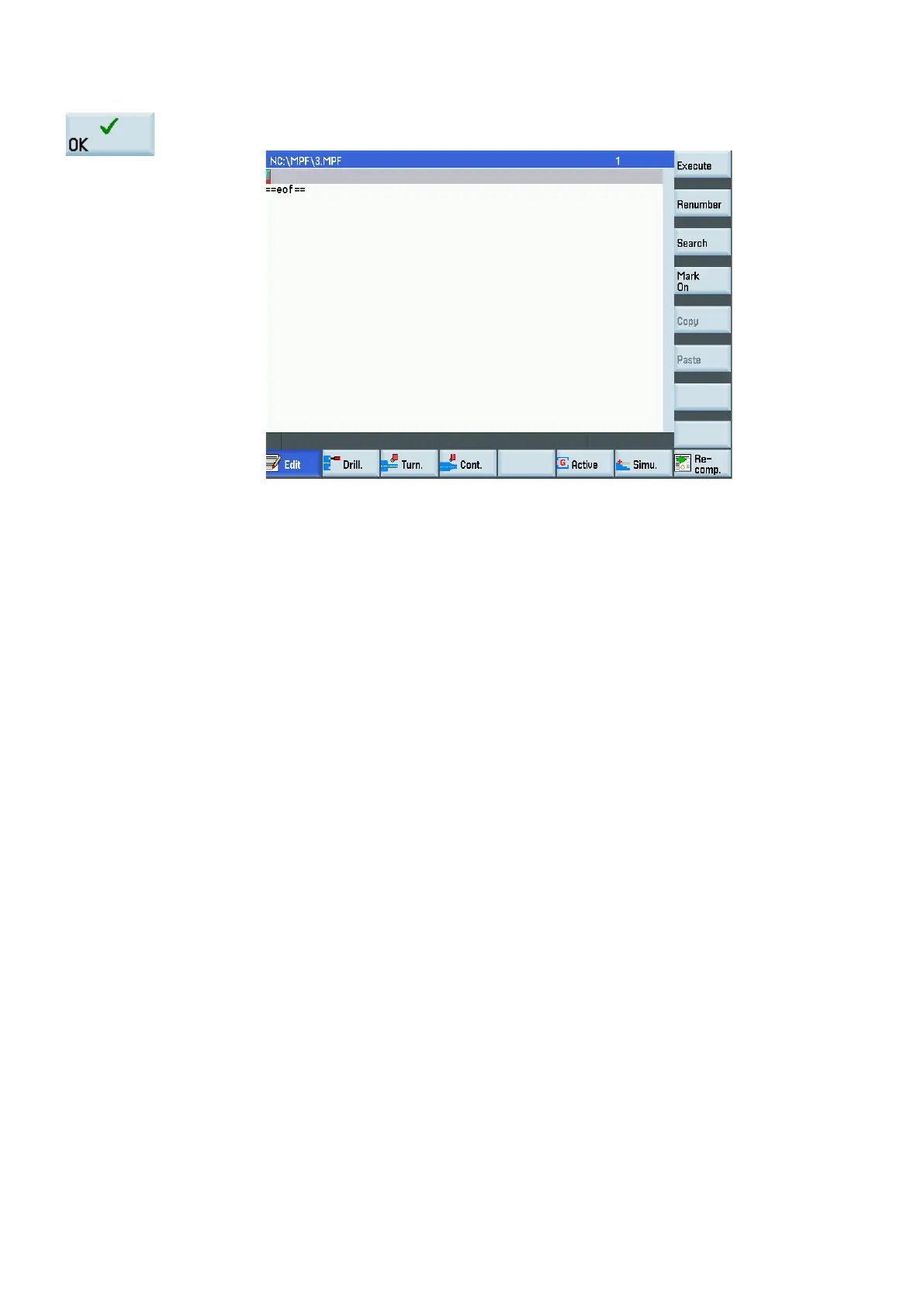

Press this softkey to confirm your entry. The part program editor window opens automatica
l-
ly.
8.
Enter the following program:
G291
T0101
M3 S1000
G0 X100 Z100
G0 X46 Z3
G71 U2 R1
G71 P10 Q20 U0.15 W0.1 F0.2
N10 G0 X0 Z3
G1 Z0
X17
X20 Z
-1.5
Z
-20
X25.596 Z
-35.868
G2 X34.722 Z
-39.987 R5
G3 X44 Z
-44.974 R5
G1 Z
-68
N20 X45
M3
S2000
G70 P10 Q20 F0.1
G0 X100 Z100
M00
T0303
M3 S600
G0 X100 Z100
Z
-20
X22
G1 X17 F0.1
X20 F0.5
G0 X50
Z
-54.27
X46
