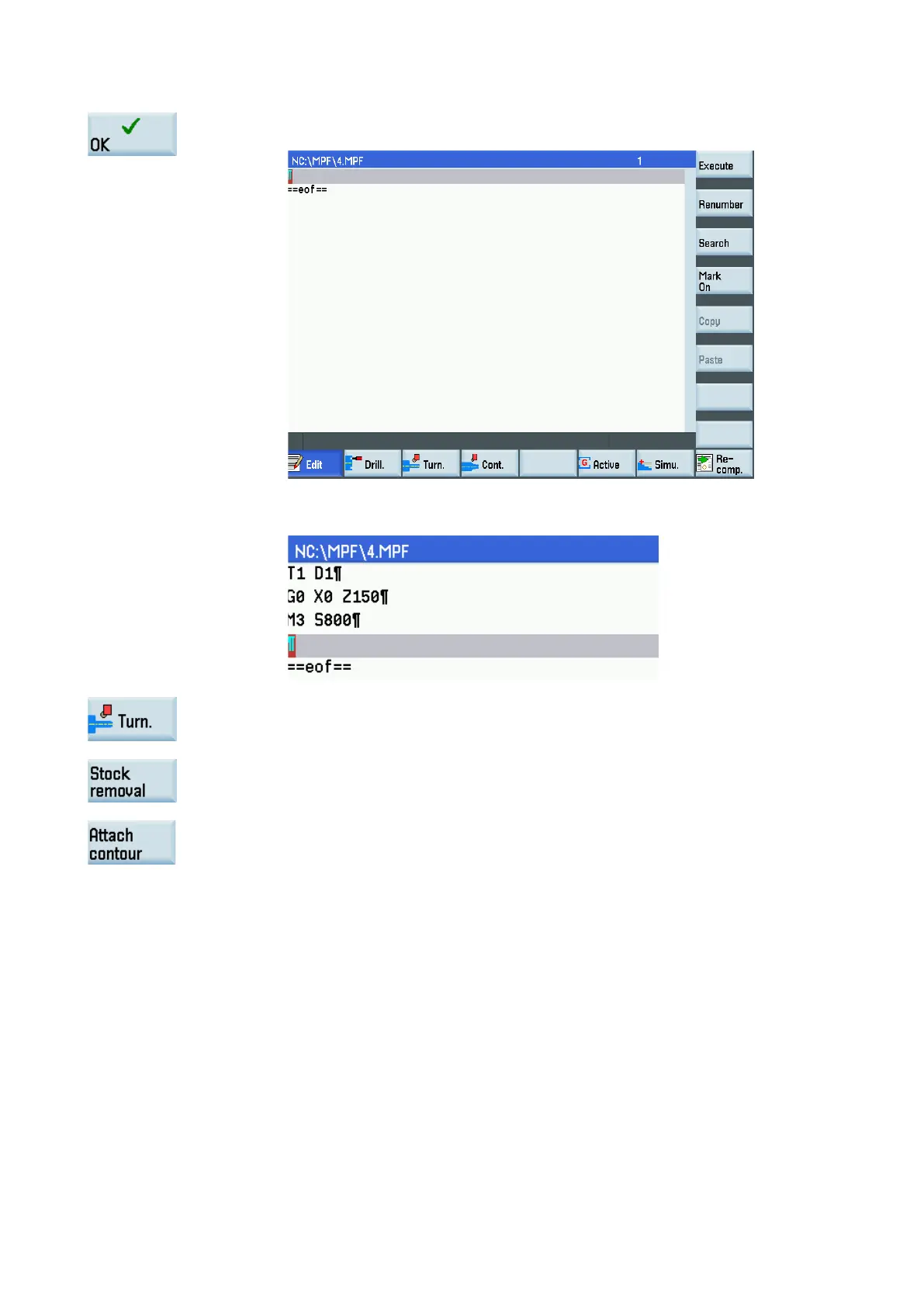

Press this softkey to confirm your entry. The part program editor window opens automatica
l-
Enter the following program in the window. The co
ntrol system saves your editing automati-
Open the vertical softkey bar for available tur
ning cycles.
Press this softkey to open the w
indow for CYCLE95 and enter the name of the contour
subroutine in "NPP", for example, "LL".
Press this softkey to open the program editor window again and enter the program blocks
for the external contour:
-10
-30
-35
-50 RND=10
-61
the bottom hole diameter of the blank in the last line of the program for
the external contour (for example, "X18" in the above program). Besides, the program for
the external contour has to be positioned after "M30". For detailed information, see the
screenshots of the complete program at the end of this example.
