Programming and Operating Manual (Turning)

80 01/2017

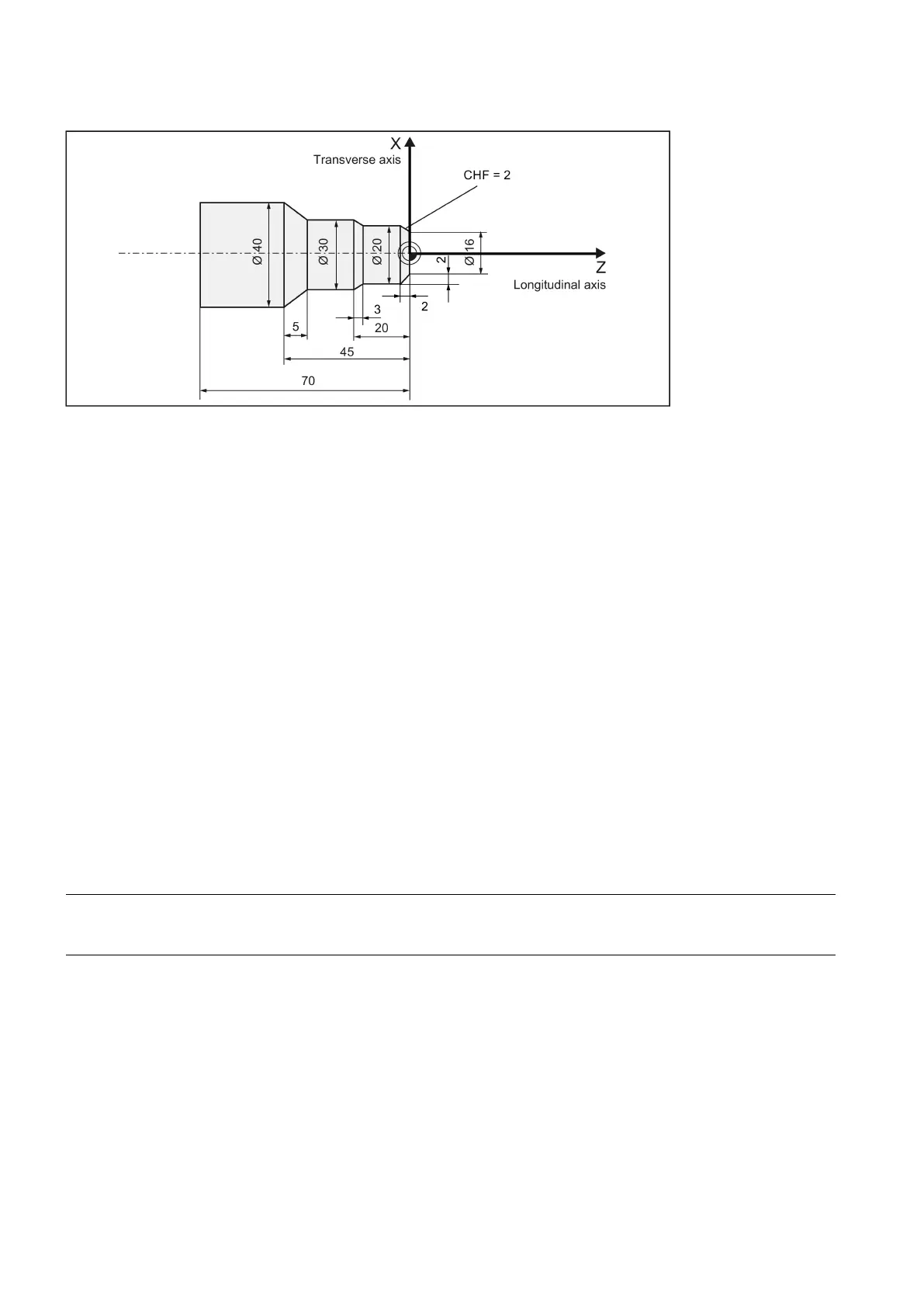

See the following diameter and radius dimensioning for the traverse axis:

Programming examples

Diameter dimensions (DIMON)

DIAMON

; Diameter dimensions active

G1 X0 Z0 F0.2

; Traverse to diameter position X0 and Z0

X20 CHF=2

Z-17

X30 Z-20

Z-40

X40 Z-45

Z-70

M30

; End of program

Radius dimensions (DIMOF)

DIMOF

; Diameter dimensions inactive

G1 X0 Z0 F0.2

; Traverse to diameter position X0 and Z0

X10 CHF=2

Z-17

X15 Z-20

Z-40

X20 Z-45

Z-70

M30

; End of program

Note

A programmable offset with TRANS X... or ATRANS X... is always evaluated as rad

ius dimensioning. Description of this

function: see the next section.
