7 Application examples for configuring the controller
7.3 Configuration examples
Manual
212
SIPART DR21
C73000-B7476-C143-08

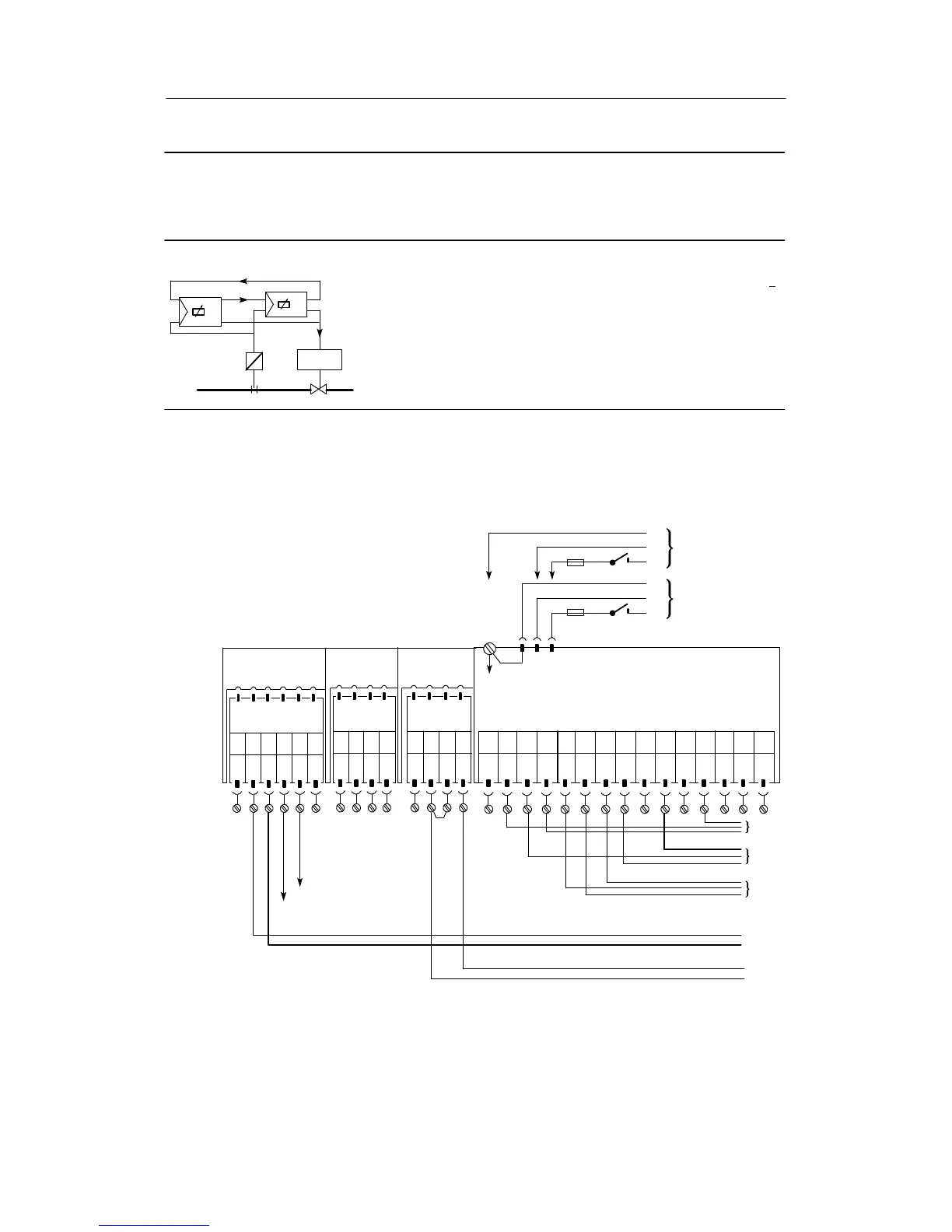

Configuration example L3 control unit (LG) with slave controller (FR)
LG operates as a setpoint transmitter and manual control unit
with S-output.
With the LG the setpoint and the S-output of the slave controller can be remote con-
trolled. The FR has priority with respect to setpoint and manual operation. The set-
point of the FR can only be set with the LG when the LED (17) internal, LED (18)c
and LED (4) w display are alight. It is recommended to switch off the setpoint ramp
on the FR. Before switching over to setpoint presetting from the FR, you have to
wait for the setpoint set on the LG (max. 6 s).
Parallel to the FR, the process variables setpoint, controller variable and position
feedback can be displayed on the LG. x2 must be structured with S16 on the LG
for the analog x value display.
Drive
±Δy
w
x
F-controllerControl unit
w
w
±Δy
w
Please read the foreword to chapter 7.1, page 193
Control unit (LG)
Setting the structure switches of the control unit:
S1 = 4, control unit S30 = 2, --yBL ! DI2
S2 = 0, S-controller i.Rf. S42 = 2, wi: int $ ext
S15 = 0, x1 = 0 S49 = 1
S17 = 1, we ! AI1 S54 = 1, yR display
S19 = 3, yR ! AI3 S56 = 2, w ! AO
S22 = 1, Opt. Position 3 S57=1,±Δy ! DO1/2
S23 = 1, CB ! DI1 S58 = 3, RB ! DO3
S25 = 0, N = 0 S60 = 4, H ! DO4
S26 = 0, Si = 0 S62 = 5, A1 ! DO5
S29 = 2, +yBL ! DI2 S63 = 6, A2 ! DO6
AI1
--
PE
N
L
PE
N
L
UC 24 C
AC 115 V
AC 230 V
AI1
+
AI2
--
AI2
+
DI1 DI2 L+ AO
123 456789101112
Slot 1
AI3
Slot 2
AI4
Slot 3
DI3 DO
3
DO
6
DI4
DO
4
DO
5
1234 5 6
not
used
1234
Option module
6DR2800-8J
L+Δy
13 14 15
--Δy
SIP ART DR21 standard controller
6DR2100-5 (AC230 V/115 V)
6DR2100-4 (UC 24 C)
12 3 4
R-- +
Option module
6DR2801-8E
A1
A2
¡
©
¢
£
¥
¦
¤
GND
GND GND
DO
1
DO
2
