6.16 Contact service life of auxiliary and main contacts
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
176 Manual, 09/2017, A5E03656507120A/RS-AE/006

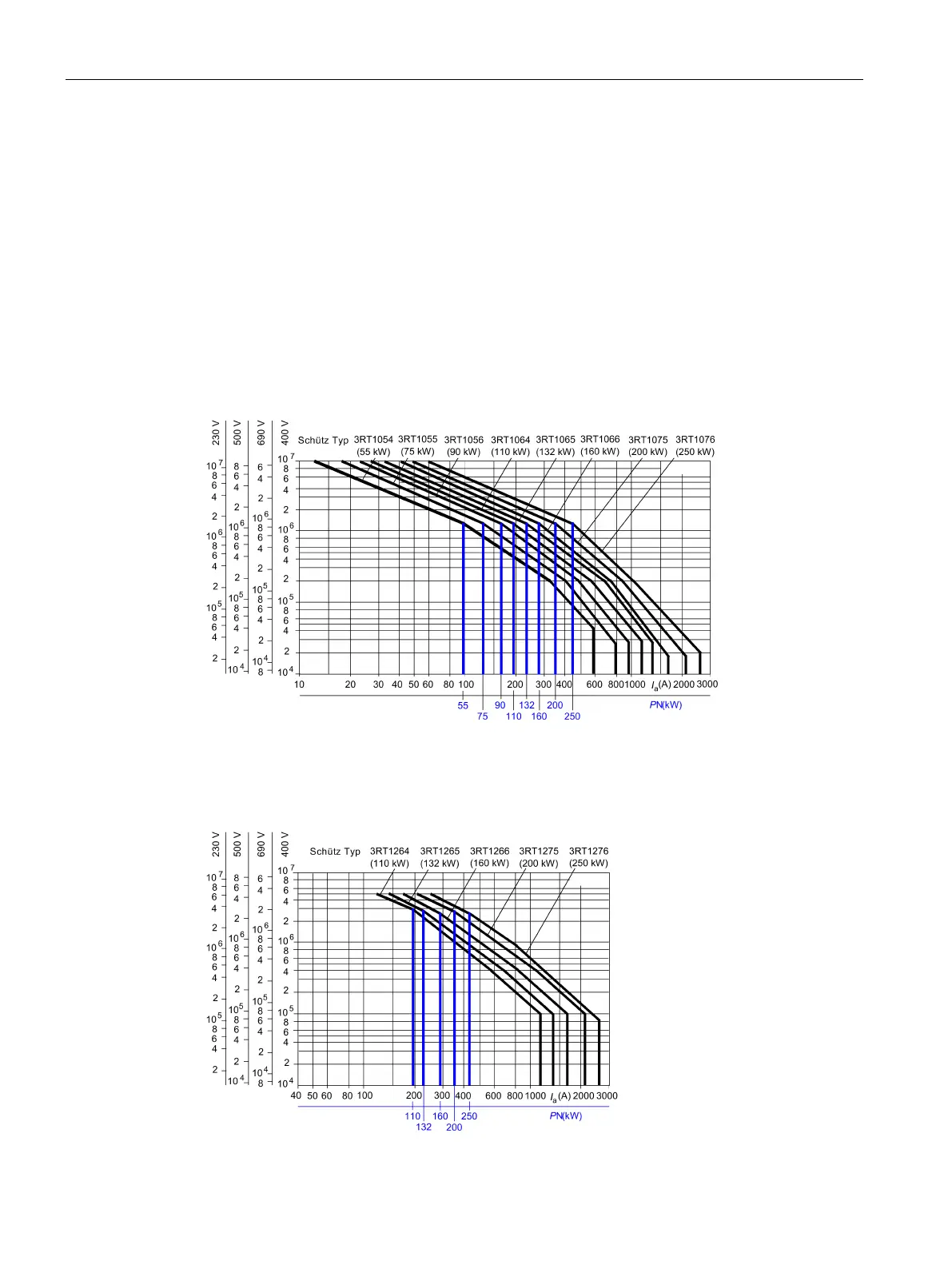

Characteristic curve: Contact service life of the main contacts
The following characteristic curves show the contact service life of contactors when
switching resistive and inductive three-phase loads (AC-1/AC-3) as a function of breaking
current and rated operational voltage. This requires operating mechanisms that switch at
random, i.e. not synchronized with the phase angle of the supply system.
I
a
= Breaking current
I
e
= Rated operational current
P
N
= Rated power of three-phase motors with squirrel-cage rotor at 400 V
Operating cycles at:
3RT12 vacuum contactors
sizes S10 and S12
Operating cycles at:
