Accessories
9.21 Pneumatically delayed auxiliary switch
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
358 Manual, 09/2017, A5E03656507120A/RS-AE/006

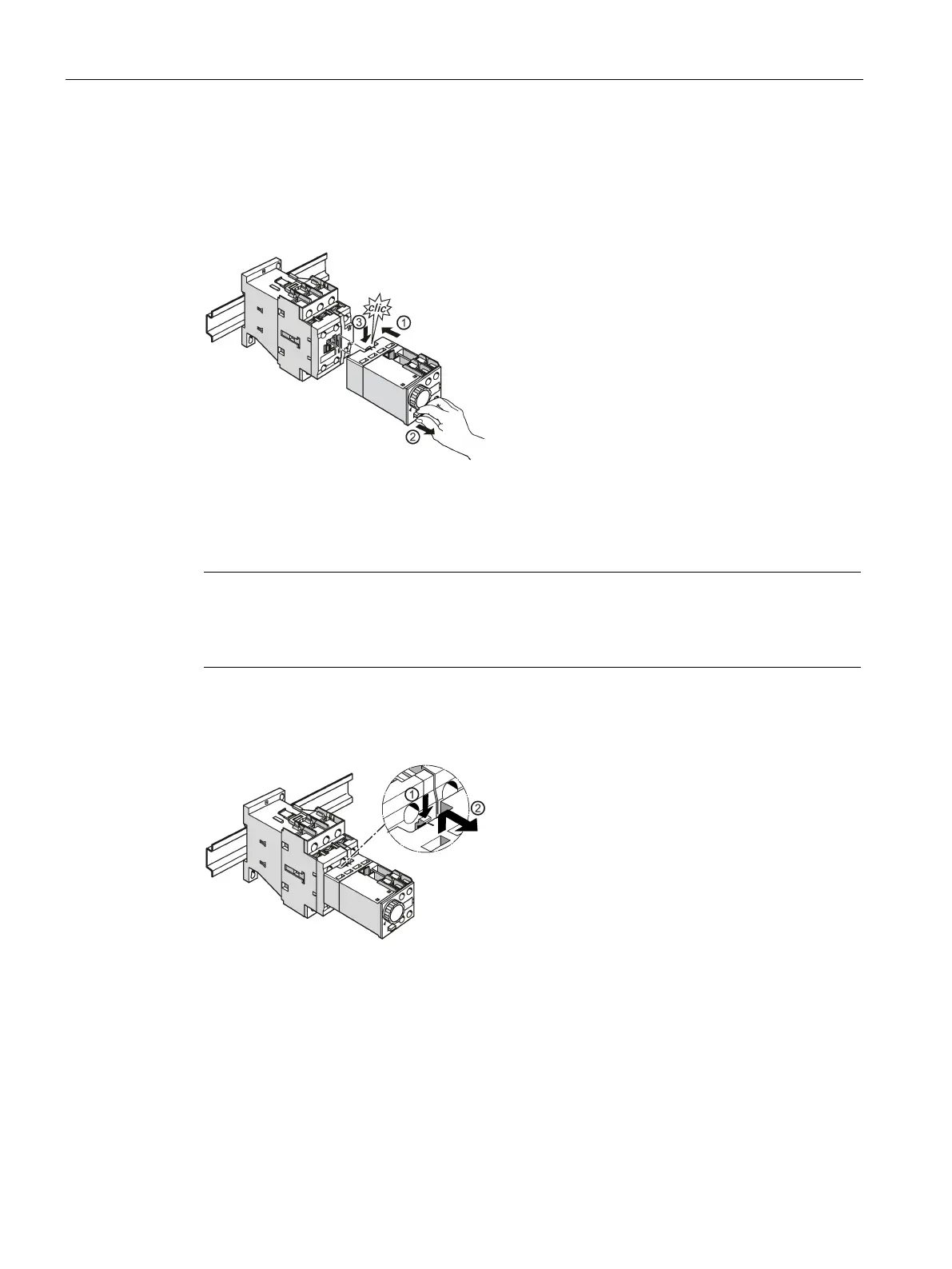

Mounting/Disassembly
Versions of the pneumatically delayed auxiliary switch
Push the pneumatically delayed auxiliary switch, which is attached on the front, into the
location hole on the contactor.
Pull the pneumatically delayed auxiliary switch down until it engages.
Note
The pneumatically delaye
d auxiliary switch is attached on the front of the contactors and
NO contact and 1 NC contact as its auxiliary contacts. If the pneumatically
delayed auxiliary switch is mounted on a contactor, no other auxiliary contacts are permitted.
Disassembling the pneumatically delayed auxiliary switch
Press down the release lever on the pneumatically delayed auxiliary switch.
Pull the pneumatically delayed auxiliary switch toward you and remove it from the contactor.
