Siemens SIRIUS 3RT - 3 RA233 Reversing Contactor Assemblies (Size S2)

Dimension drawings (dimensions in mm)
C.10 3RA23 reversing contactor assemblies
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
Manual, 09/2017, A5E03656507120A/RS-AE/006
537
C.10.3
3RA233 reversing contactor assemblies (size S2)
3RA233.-8XB30-1 reversing contactor assemblies (size S2)

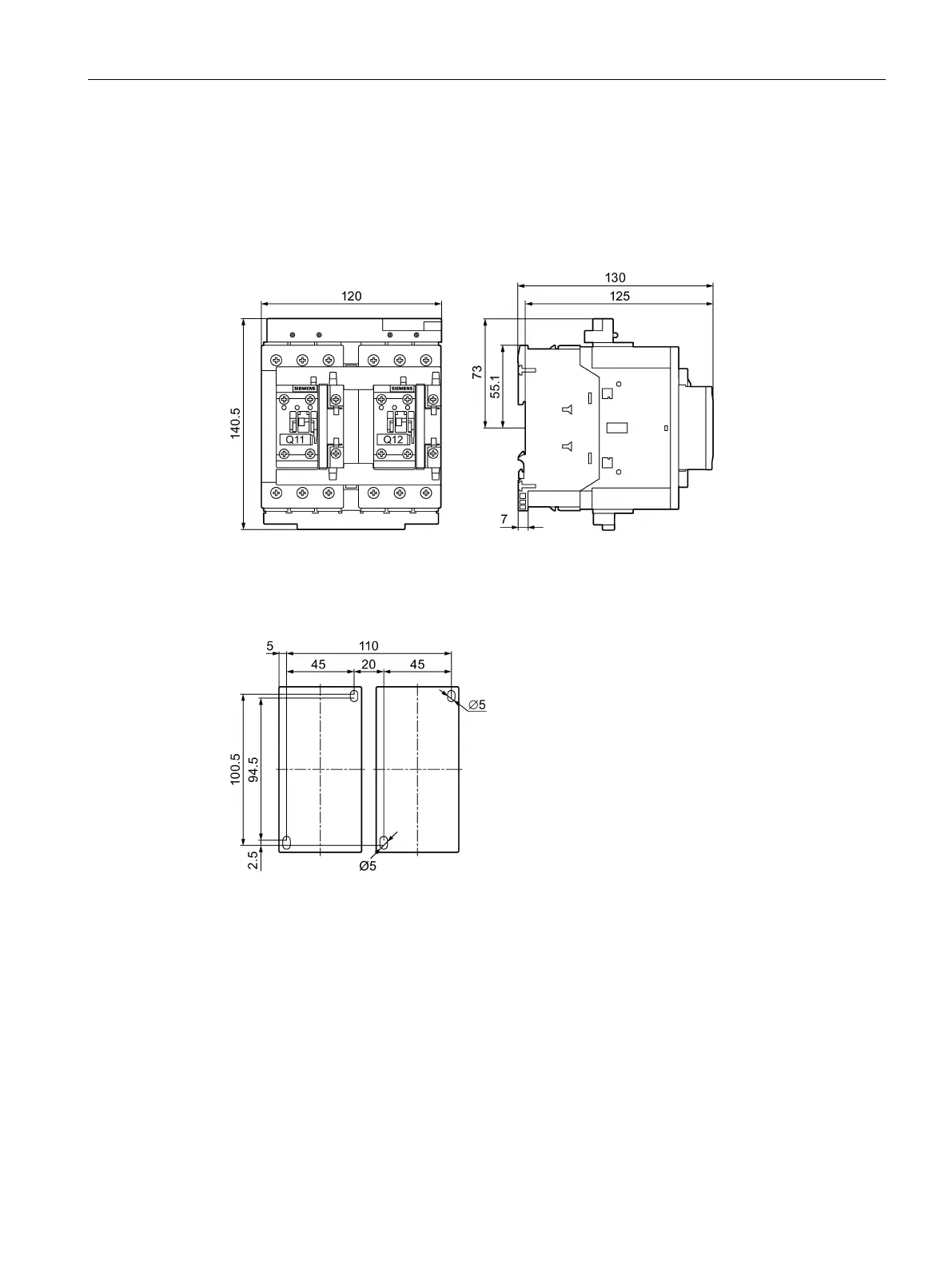

Figure C-55 3RA233.-8XB30-1 reversing contactor assemblies
Drilling diagram for 3RA233.-8XB30-1 reversing contactor assemblies (size S2)
Figure C-56 Drilling diagram for 3RA233.-8XB30-1 reversing contactor assemblies
