Accessories
9.33 Box terminal block (size S6 to S12)
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
Manual, 09/2017, A5E03656507120A/RS-AE/006
455
Mounting
Mounting the box terminal block

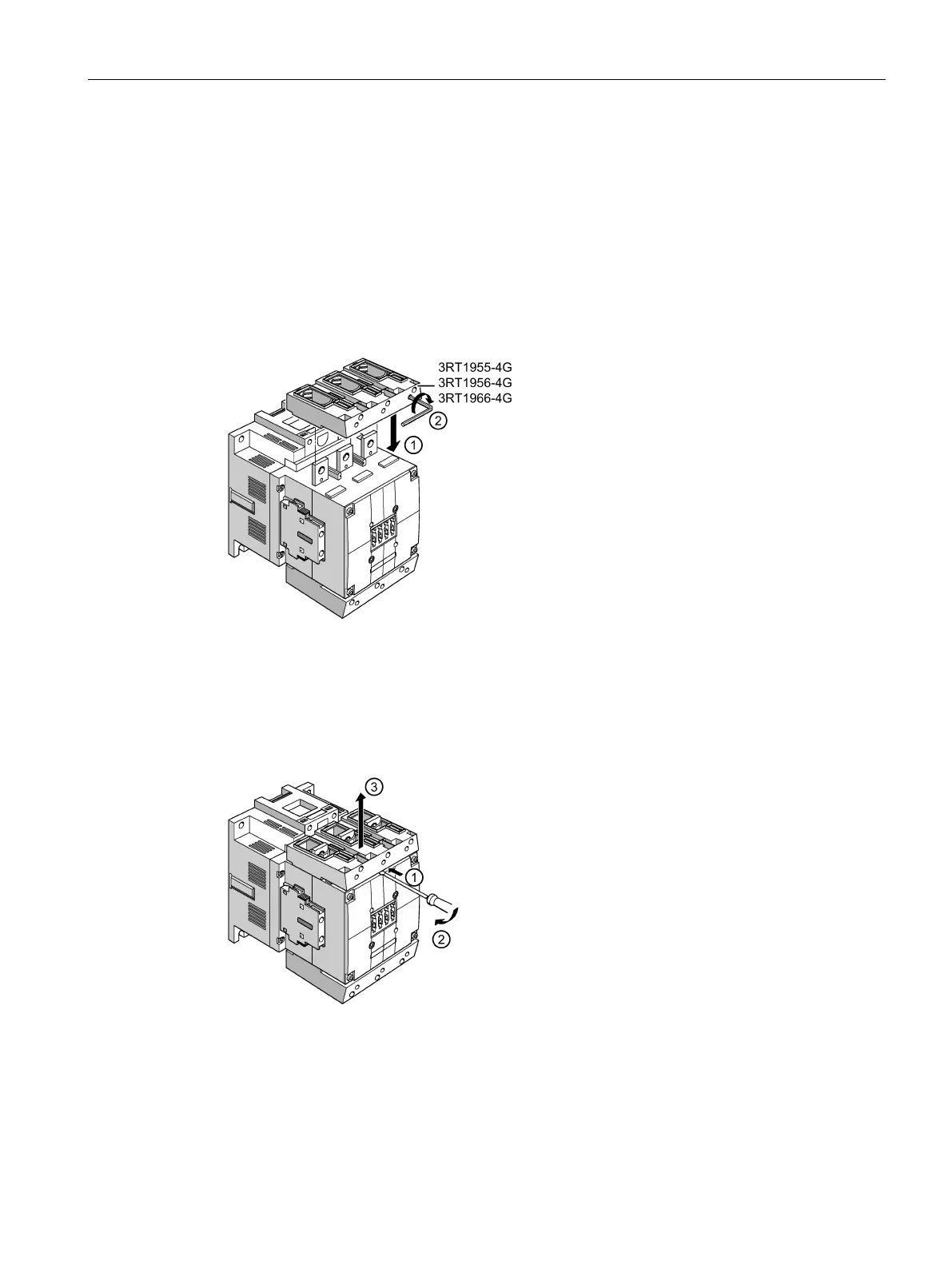

The following figures show how to mount and disassemble the box terminal block onto
the 3RT1.6 / 3RT1.7 contactor in sizes S10 / S12.
Mounting the box terminal block onto the 3RT1.6 / 3RT1.7 contactor
Mount the box terminal block on the contactor.
Screw the box terminal block tight on the contactor. Check whether the box terminal block is
Disassembly of the box terminal block from the 3RT1.6 / 3RT1.7 contactor
Position the screwdriver in the middle of the contactor, as shown in the figure.
Slightly lever open the box terminal block to dislodge it.
Detach the box terminal block from the contactor in the upward direction.
