9.18 Parallel switching connectors
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
Manual, 09/2017, A5E03656507120A/RS-AE/006
353
The parallel connectors of size S00 and S3 can all be reduced by one pole. The illustration
below shows an example of how to mount the 3-pole parallel switching connector with
connection terminal to a contactor of size S00.

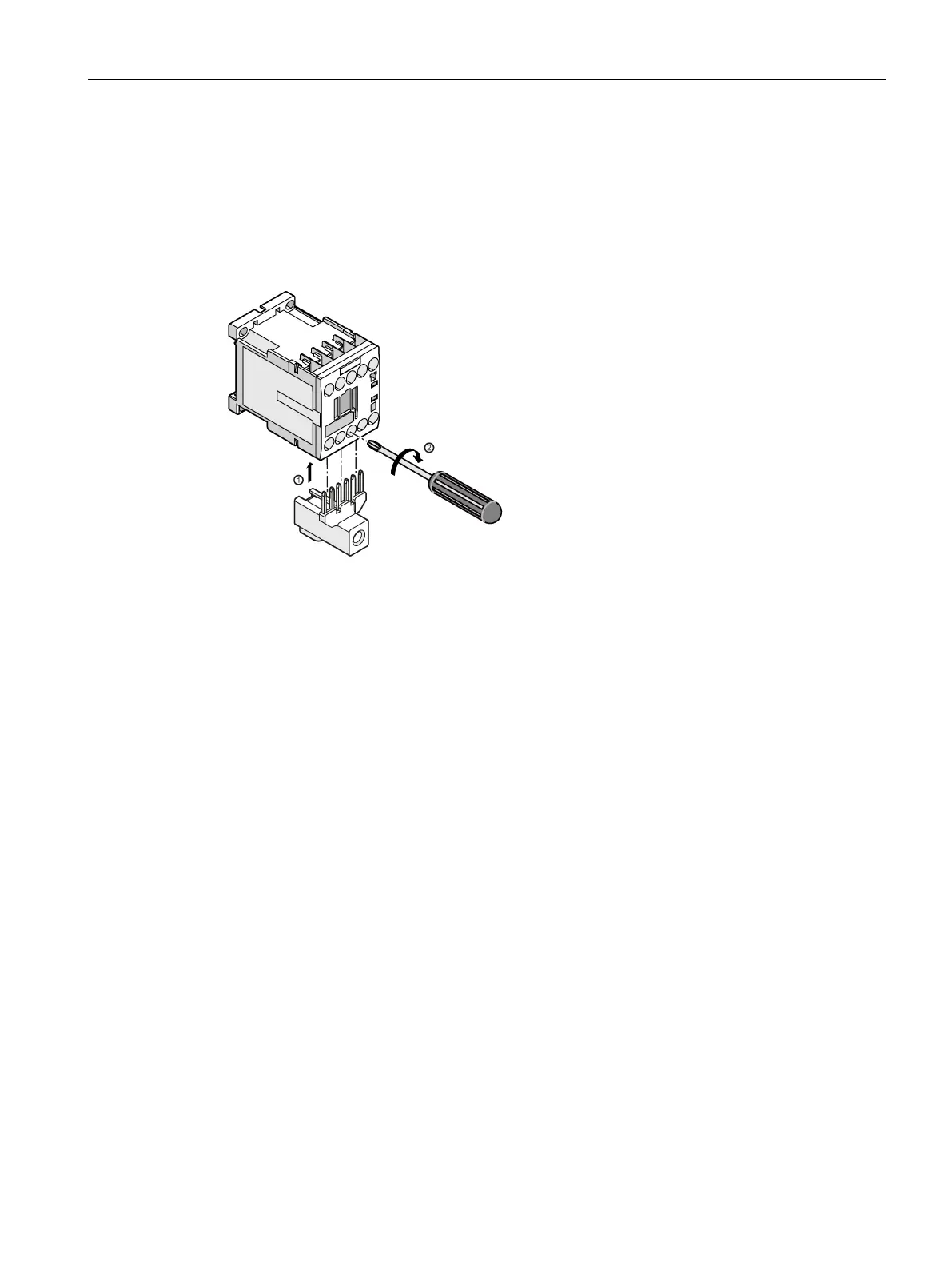

Mounting the 3-pole parallel switching connector with connection terminals
Insert the pins of the parallel switching connector into the contactor's terminal openings from
below until they are securely in position.
Screw the parallel switching connector tight with a screwdriver.
