Siemens SIRIUS 3RT - Mounting Size S6

Accessories
9.29 Wiring kit for contactor assemblies for star-delta (wye-delta) start (sizes S6 to S12).
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
Manual, 09/2017, A5E03656507120A/RS-AE/006
429
9.29.2
Mounting size S6
The contactor assemblies for star-delta (wye-delta) start can be built from contactors with
screw connections or spring-loaded connections:
● Line contactor (Q11): Left
● Delta contactor (Q13): Center
● Star contactor (Q12): Right
This arrangement applies for all installation instructions described in this chapter.

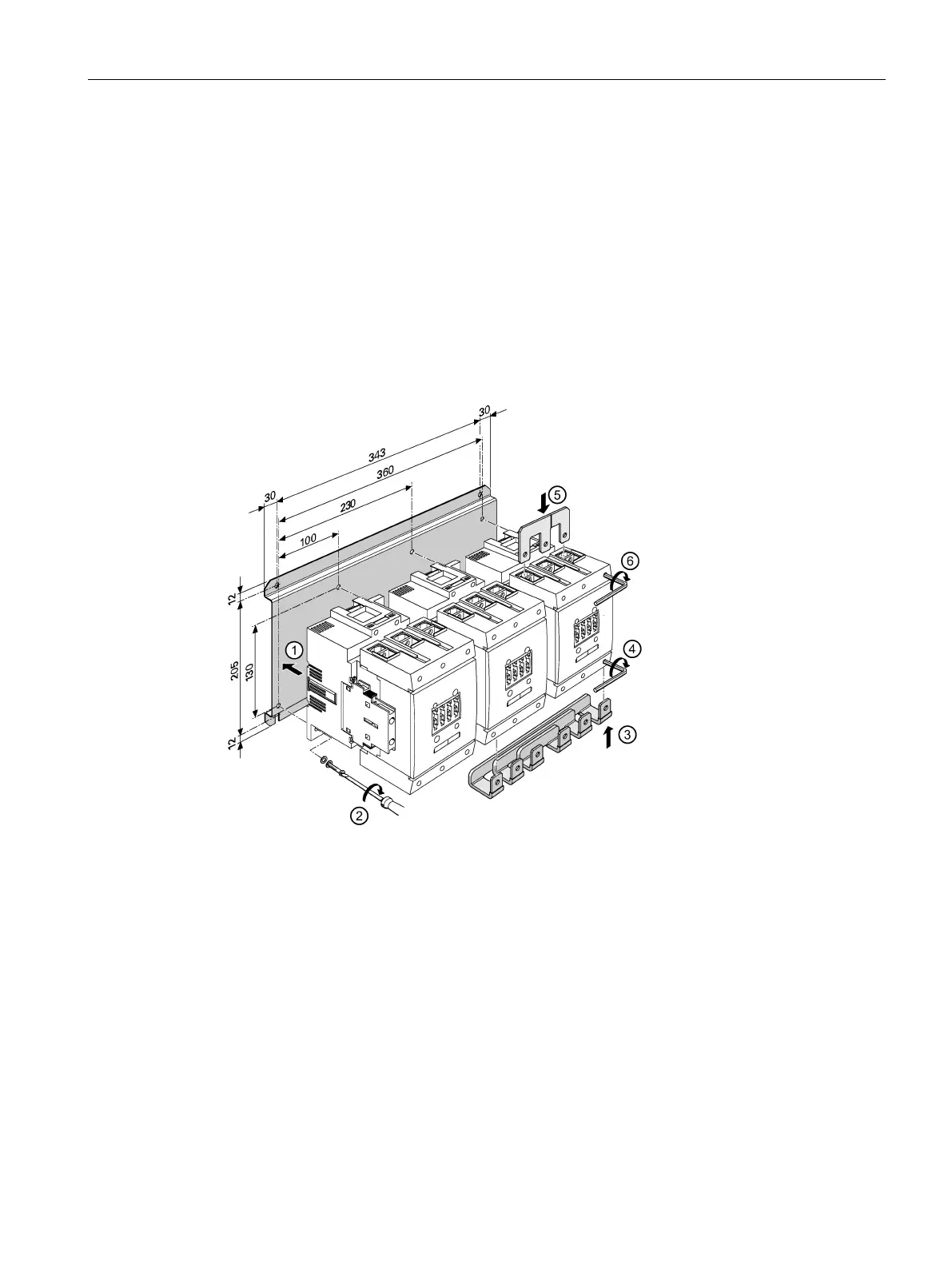

Mounting the contactor assembly for star-delta (wye-delta) start - size S6-S6-S6
①
/
②
Mounting the contactor assembly for star-delta (wye-delta) start on a base plate.
Screws: M6 (6 x)
③
Attach the lower wiring module.
④
Tighten the main terminals.
⑤
Attach the neutral bridge.
⑥
Tighten the main terminals.
