Siemens SIRIUS 3RT - Reversing Contactor Assemblies (S00; S0; S2; S3)

Circuit diagrams
11.4 Reversing contactor assemblies (S00 / S0 / S2 / S3)
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
484 Manual, 09/2017, A5E03656507120A/RS-AE/006
11.4
Reversing contactor assemblies (S00 / S0 / S2 / S3)
Reversing contactor assembly, size S00
3RA231.-....

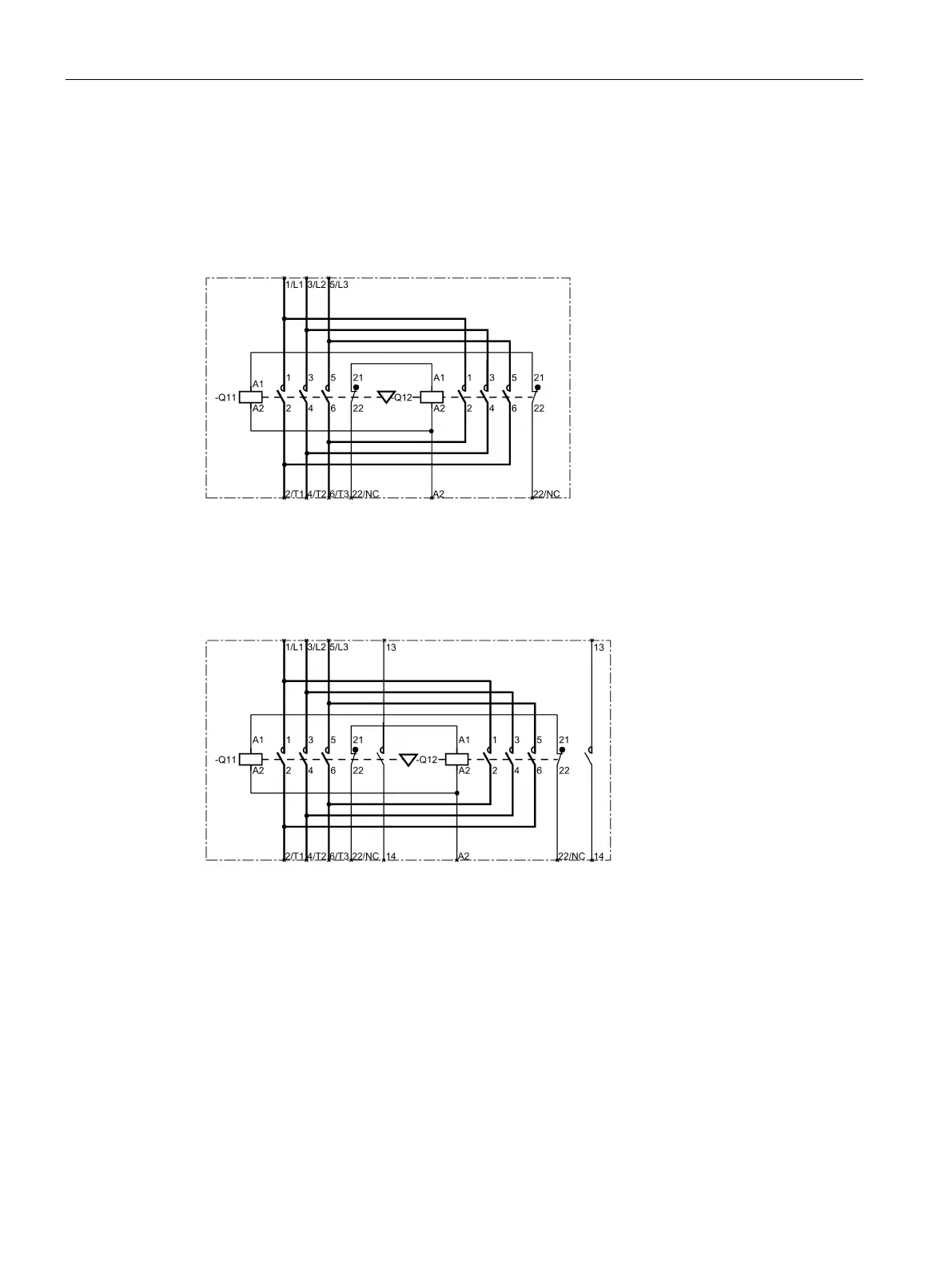

Figure 11-1 Reversing contactor assembly S00
Reversing contactor assemblies, sizes S0, S2 and S3
3RA232.-.... / 3RA233.-.... / 3RA234.-....
Figure 11-2 Reversing contactor assemblies S0, S2 and S3
