Siemens SIRIUS 3RT - 3 RT2.3 Contactors (Size S2)

Dimension drawings (dimensions in mm)
C.4 3RT2.3 contactors (size S2)
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
514 Manual, 09/2017, A5E03656507120A/RS-AE/006
C.4
3RT2.3 contactors (size S2)
3RT2.3.-1 contactors (3-pole) with accessories mounted

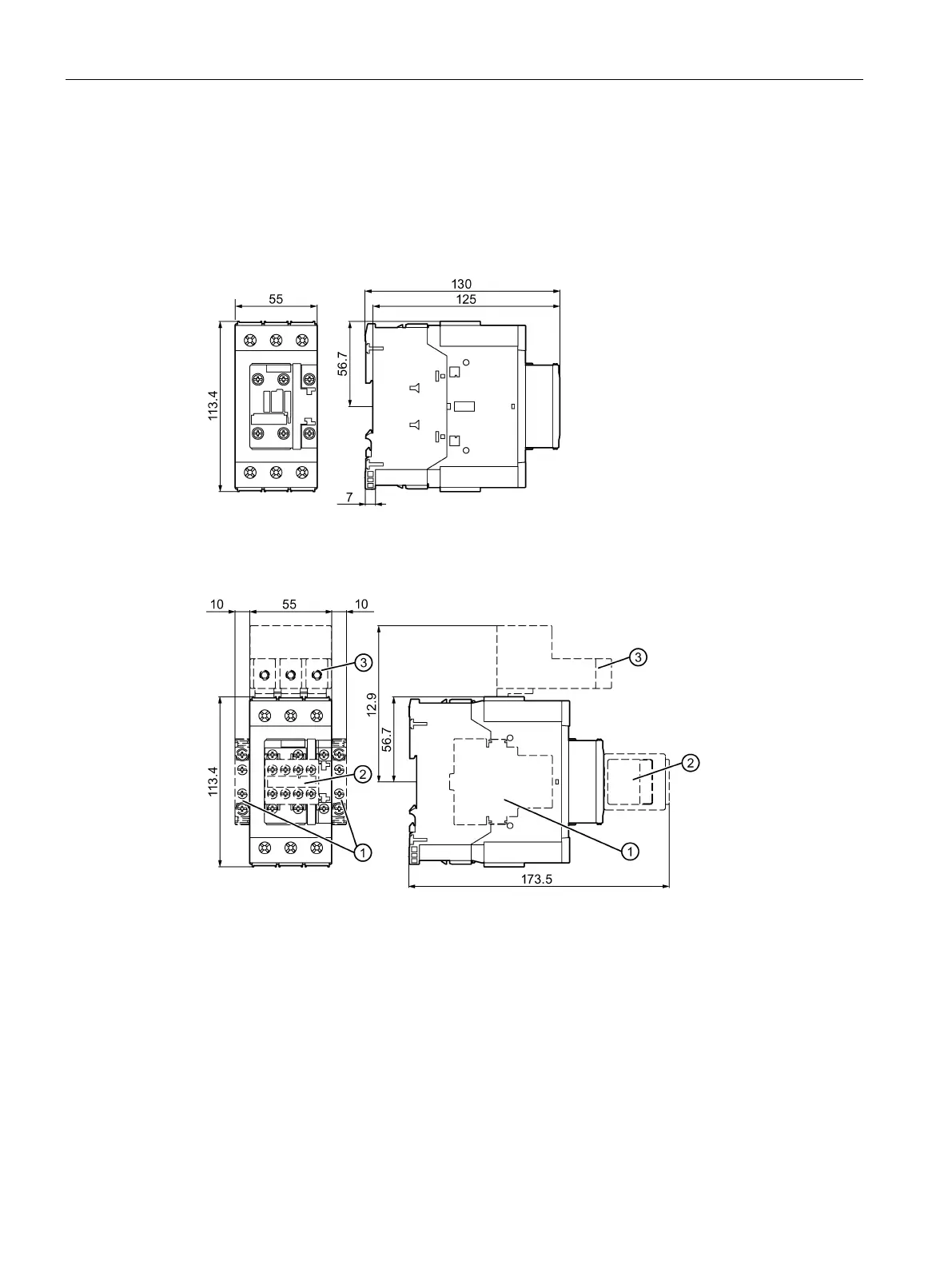

Figure C-23 3RT2.3.-1 contactor (screw-type connection system)
1 Laterally mountable auxiliary
switch block
3RH2921-1DA.. / -1DE..
2 Auxiliary switch block for
mounting on the front
3RH2911-1FA.. / -1GA.. / -1HA.. / -1NF..
3
3-phase infeed terminal
3RV2925-5AB
Figure C-24 3RT2.3.-1 contactors (screw-type connection system) with auxiliary switch blocks
mounted and 3-phase infeed terminal
