Siemens SIRIUS 3RT - 3 RA232 Reversing Contactor Assemblies (Size S0)

Dimension drawings (dimensions in mm)
C.10 3RA23 reversing contactor assemblies
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
Manual, 09/2017, A5E03656507120A/RS-AE/006
533
C.10.2
3RA232 reversing contactor assemblies (size S0)
3RA232.-8XB30-1 and 3RA232.-8XD3.-1 reversing contactor assemblies (size S0, screw-type
connection system)

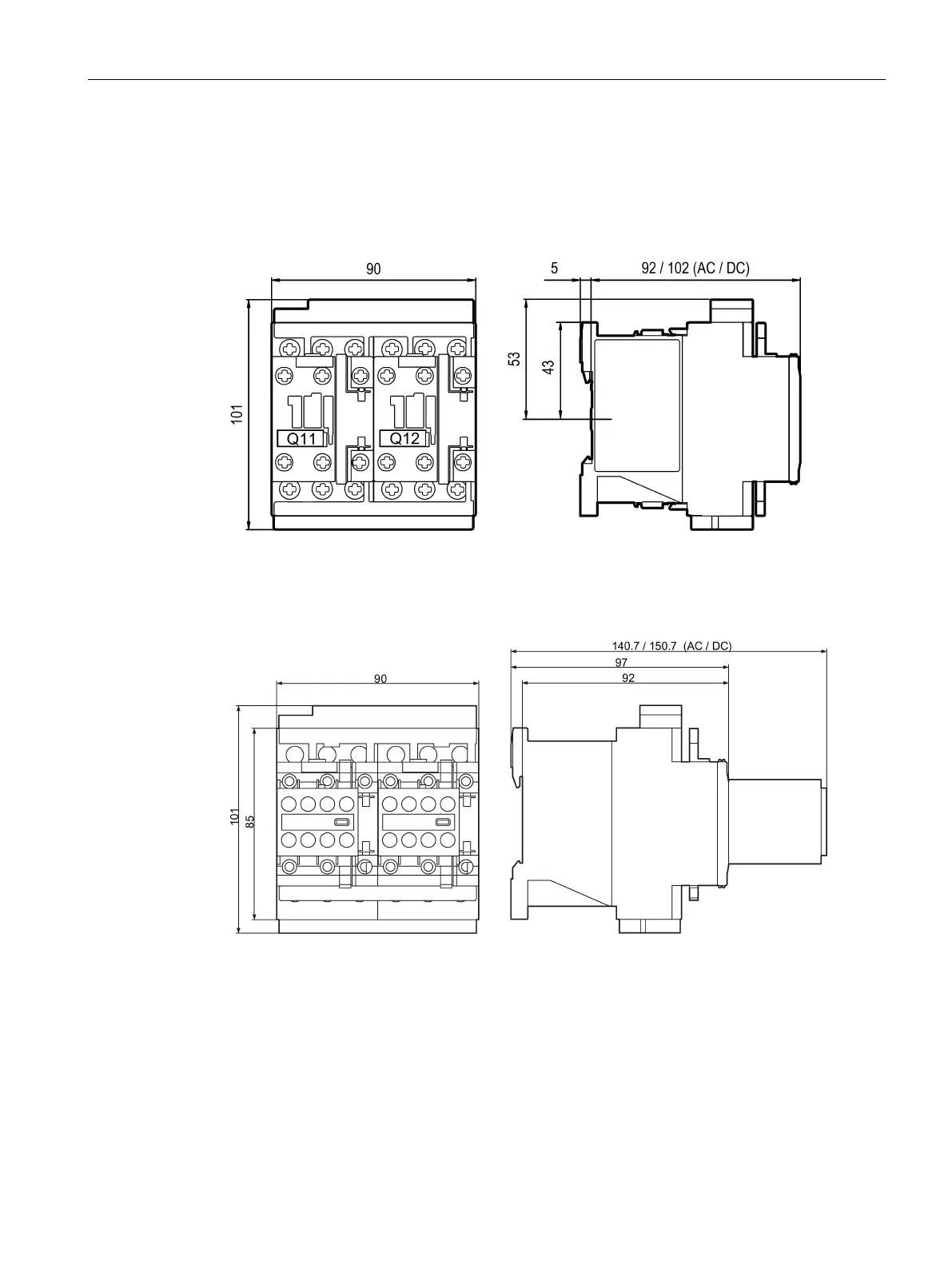

Figure C-49 3RA232.-8XB30-1 reversing contactor assemblies (size S0, screw-type connection
system)
Figure C-50 3RA232.-8XD3.-1 reversing contactor assemblies (size S0, screw-type connection
system)
