Dimension drawings (dimensions in mm)
C.10 3RA23 reversing contactor assemblies
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
534 Manual, 09/2017, A5E03656507120A/RS-AE/006

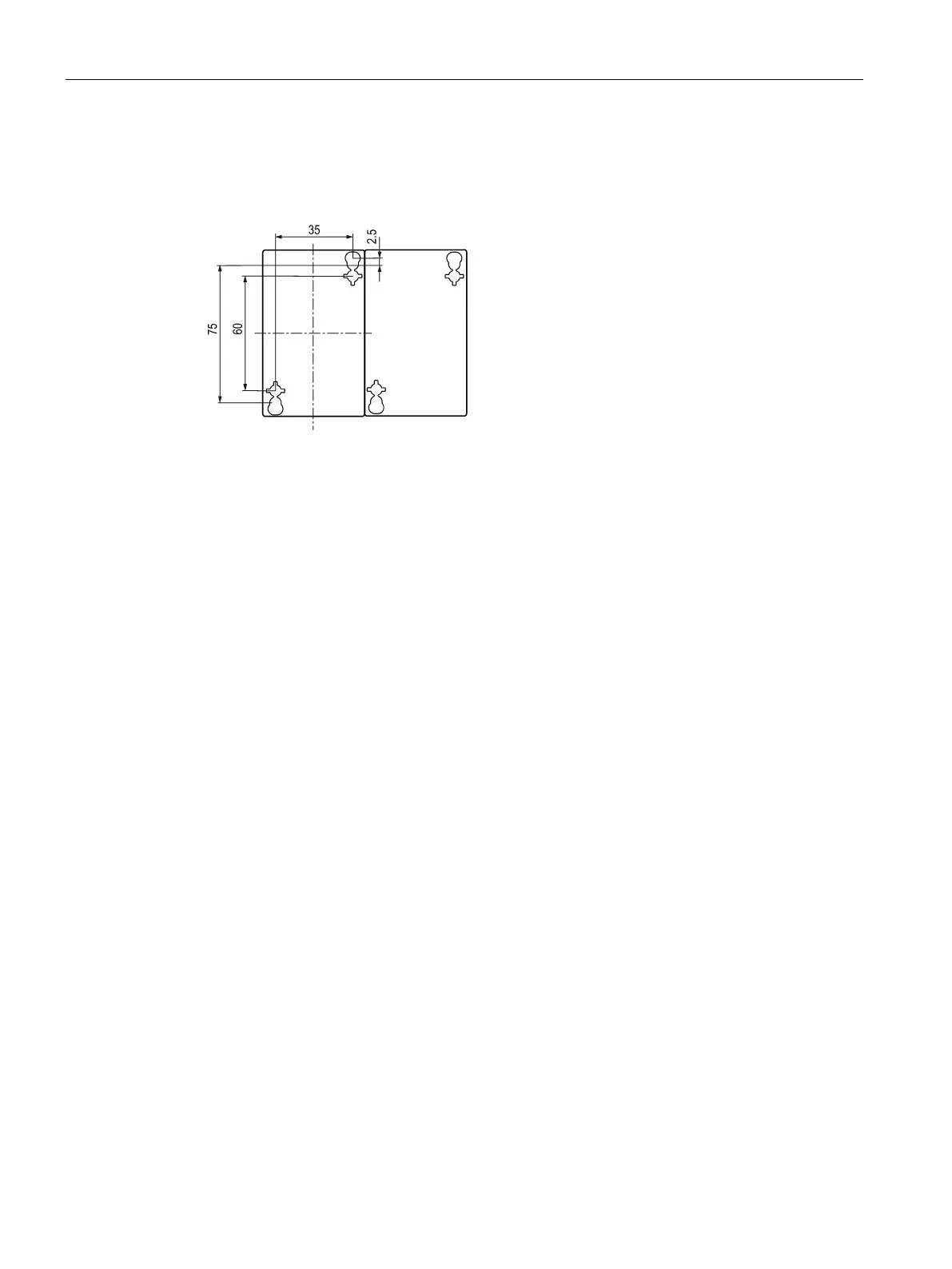

Drilling diagram for 3RA232.-8XB30-1 and 3RA232.-8XD3.-1 reversing contactor assemblies (size
S0, screw-type connection system)
Figure C-51 Drilling diagram for 3RA232.-8XB30-1 and 3RA232.-8XD3.-1 reversing contactor
assemblies (size S0, screw-type connection system)
