Accessories
9.11 LED display indicator module
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
Manual, 09/2017, A5E03656507120A/RS-AE/006
339
Mounting
Mounting the LED display module with reference to size S0
The LED display module is snapped into the location hole on the front of the contactor in
place of the labeling plate.

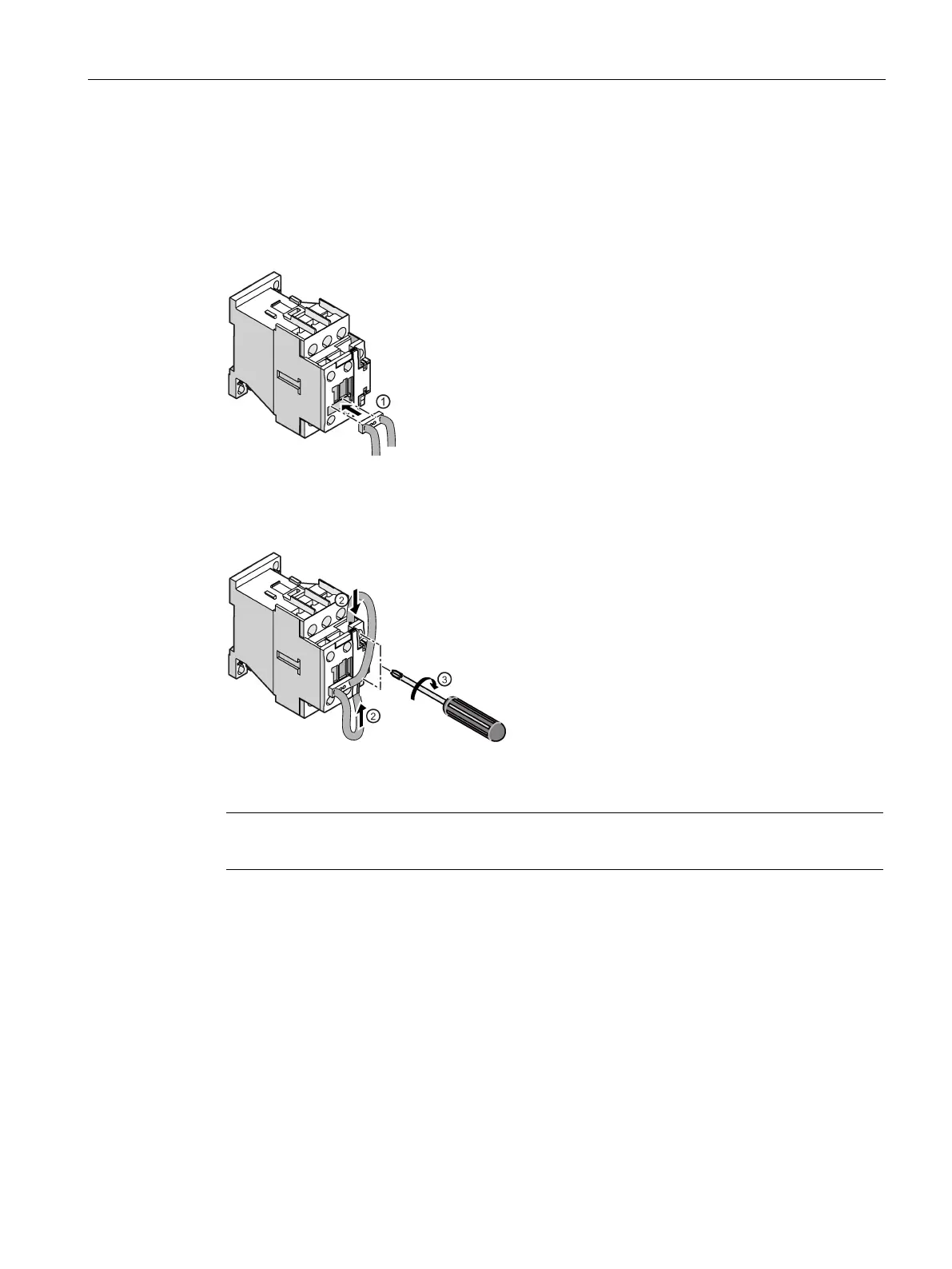

Snap the LED display indicator module into the corresponding location hole provided on the
Thread the cables into coil terminals A1 and A2 of the contactor.
Screw the cables tight with a screwdriver.
S2 / S3, mount the LED display indicator module in the same way.
