Accessories
9.10 Coupling link for PLC
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
Manual, 09/2017, A5E03656507120A/RS-AE/006
335
Mounting and disassembling the 3RH2926-1AP1 coupling module
Mounting
Replacing the removable terminal block

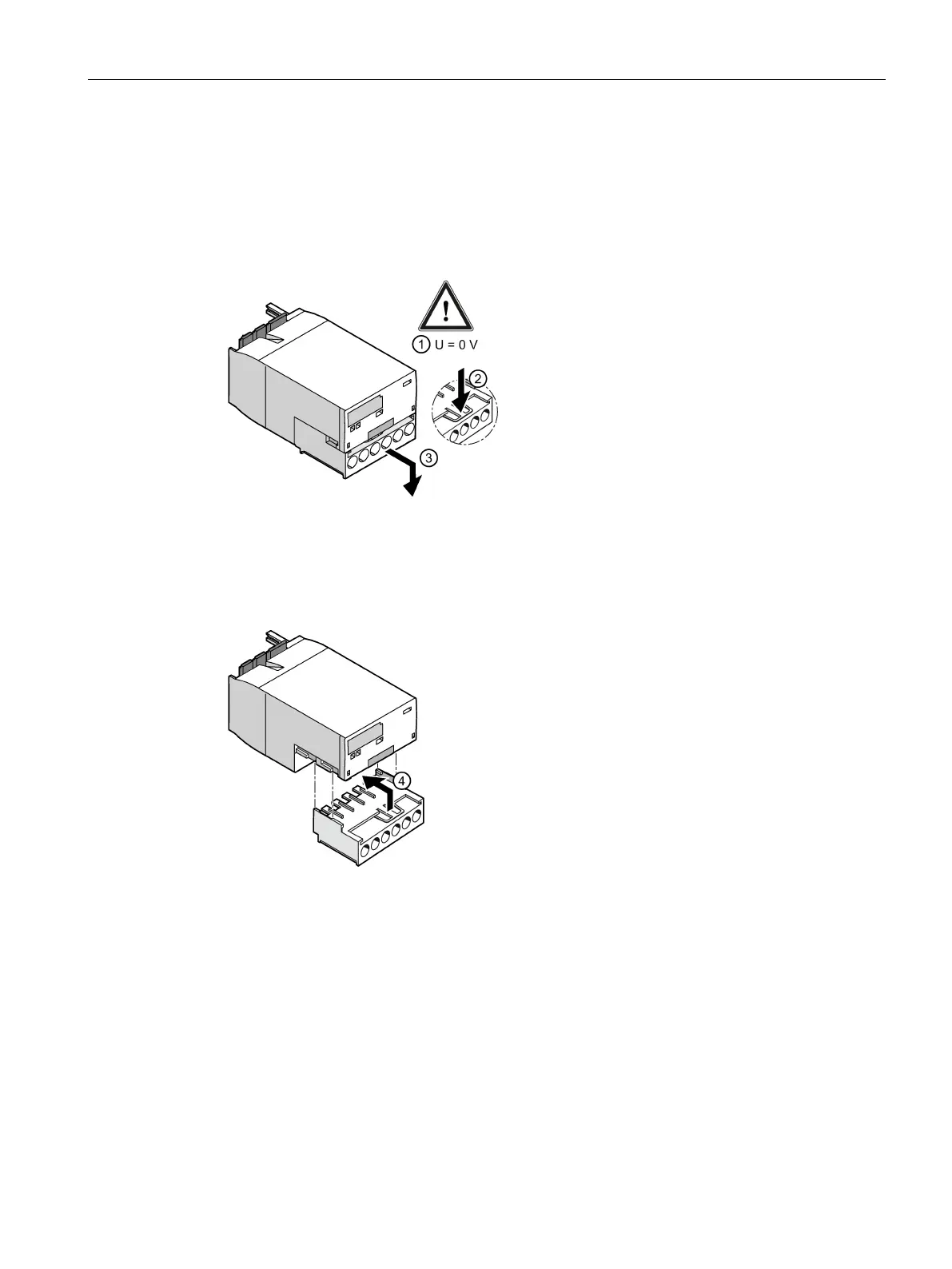

Detach the terminal block:
• Press the lug of the terminal block downwards.
• Pull the terminal block out to the front and then downwards.
Install the terminal block:
• Plug the terminal block onto the coupling module from below.
• Slide the terminal block back until the lug engages.
