Accessories
9.10 Coupling link for PLC
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
336 Manual, 09/2017, A5E03656507120A/RS-AE/006

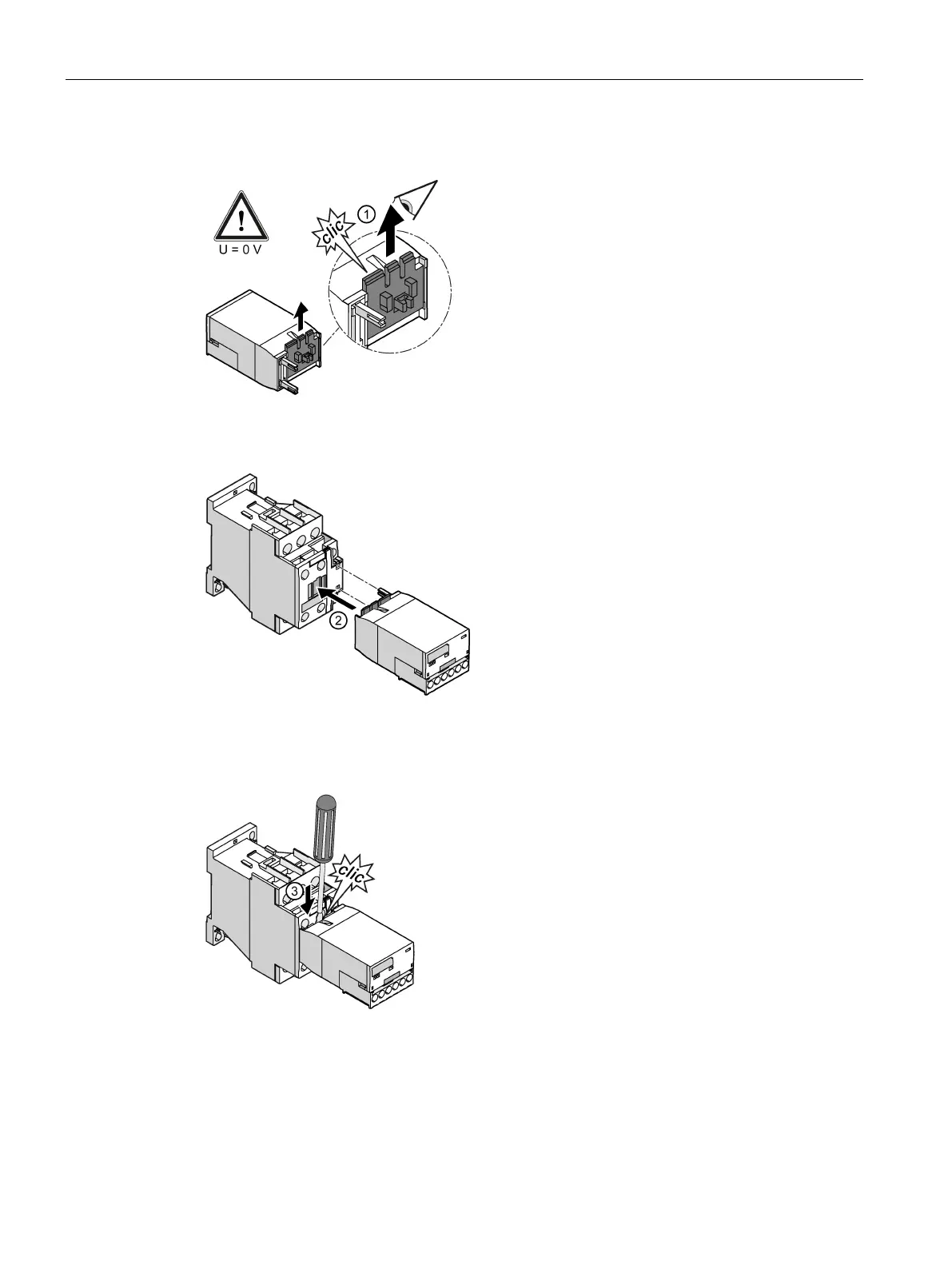

Mounting the 3RH2926-1AP1 coupling module
Pull the rear cover up until it engages.
Attach the coupling module to the coil terminal module using the integrated mounting pins at
Use a screwdriver to press down the cover of the coupling module until it engages.
