Accessories
9.10 Coupling link for PLC
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
Manual, 09/2017, A5E03656507120A/RS-AE/006
337
Disassembling

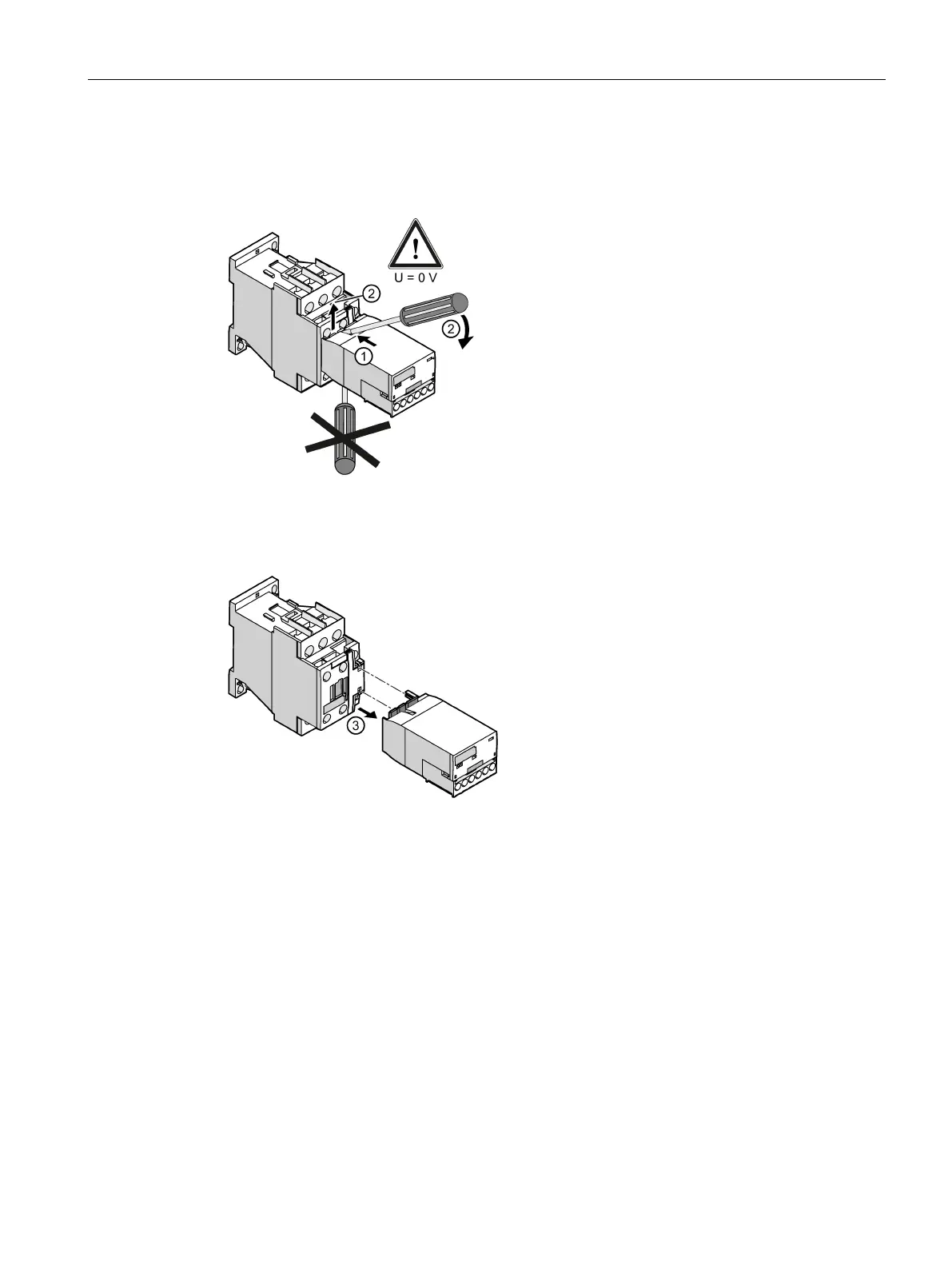

Disassembling using the example of the 3RH2926-1AP1 coupling module.
Apply the screwdriver from above.
With the aid of the screwdriver, pull the rear cover plate of the coupling module upwards.
Pull the coupling module with the integrated mounting pins towards you off the coil terminal
