Dimension drawings (dimensions in mm)
C.10 3RA23 reversing contactor assemblies
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
536 Manual, 09/2017, A5E03656507120A/RS-AE/006
Drilling diagram for 3RA232.-8XB30-2 and 3RA232.-8XD3.-2 reversing contactor assemblies (size
S0, spring-loaded connection system)

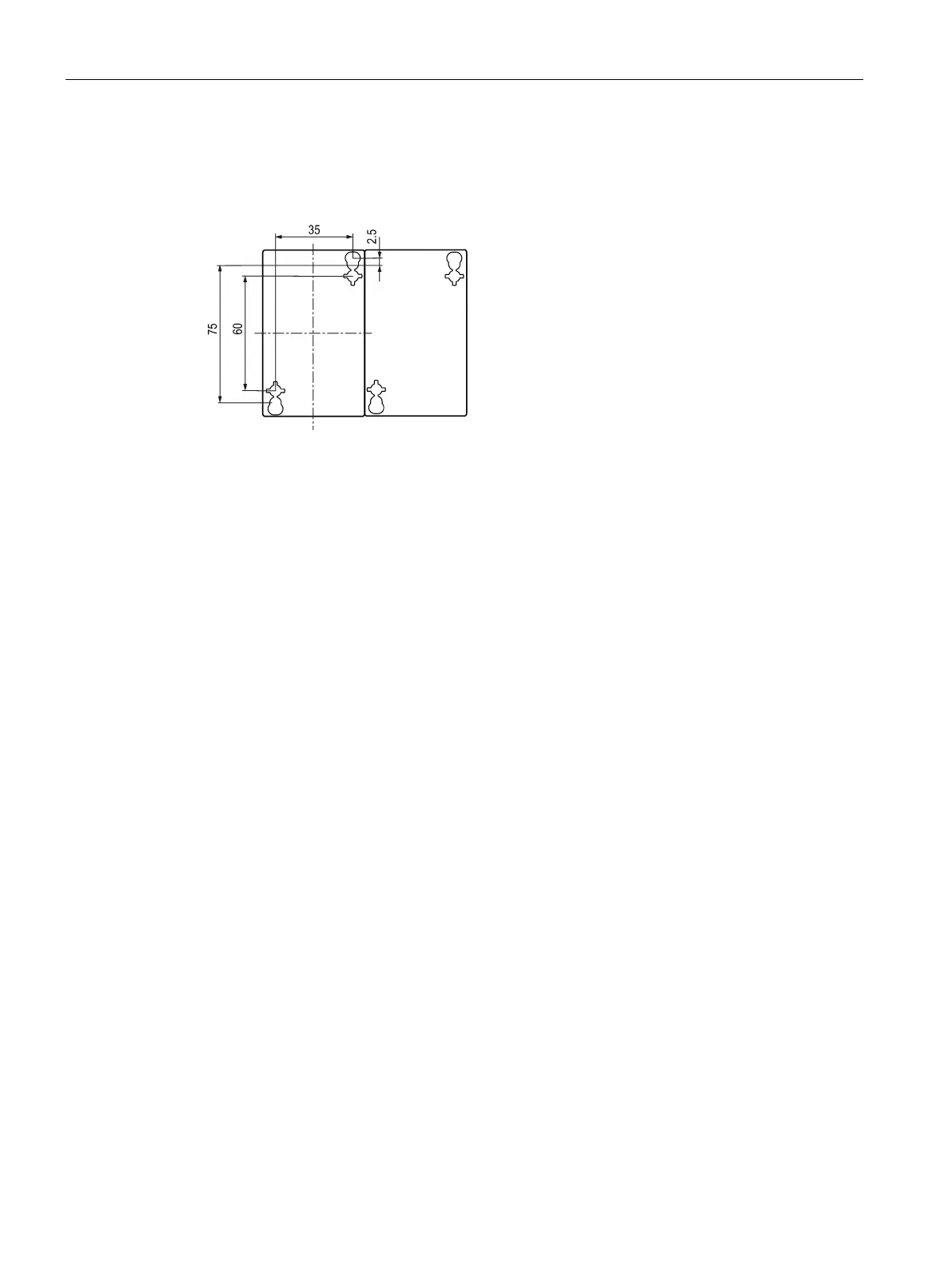

Figure C-54 Drilling diagram for 3RA232.-8XB30-2 and 3RA232.-8XD3.-2 reversing contactor
assemblies (size S0, spring-loaded connection system)
