Accessories
9.3 Auxiliary switch blocks
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
Manual, 09/2017, A5E03656507120A/RS-AE/006
285
Disassembling the front-mounted auxiliary switch - 2- / 4-pole auxiliary switch block (sizes S00 / S0 /
S2 / S3)

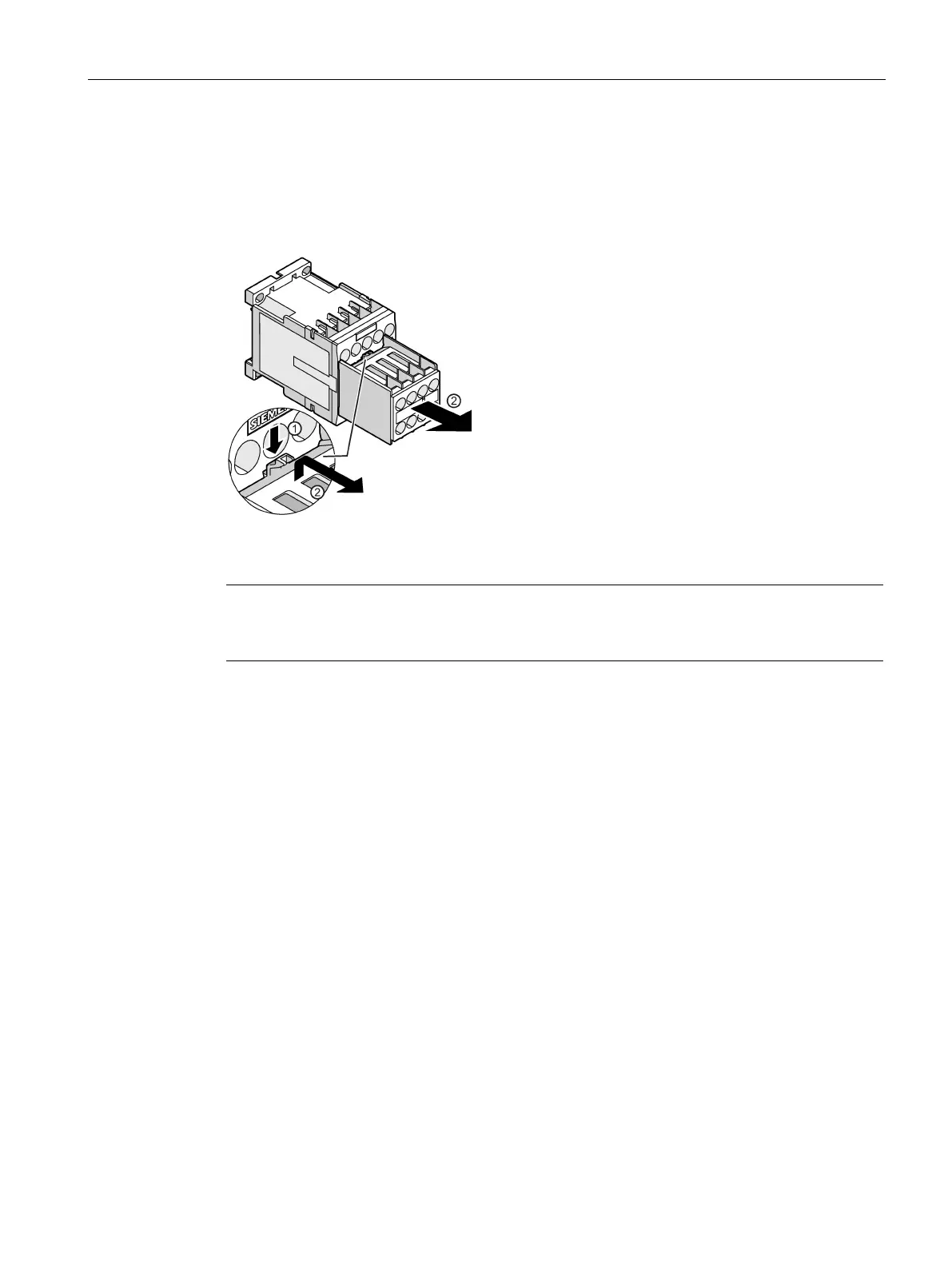

The following illustration shows an example of disassembling size S00.
Sizes S0 / S2 / S3 are disassembled in the same way.
Activate the release lever on the auxiliary switch block.
Push the auxiliary switch block up and pull it forward to remove it from the contactor.
Note
The procedure for mounting/disassembling the 1
-pole auxiliary switch block on the front is
