9.3 Auxiliary switch blocks
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
294 Manual, 09/2017, A5E03656507120A/RS-AE/006

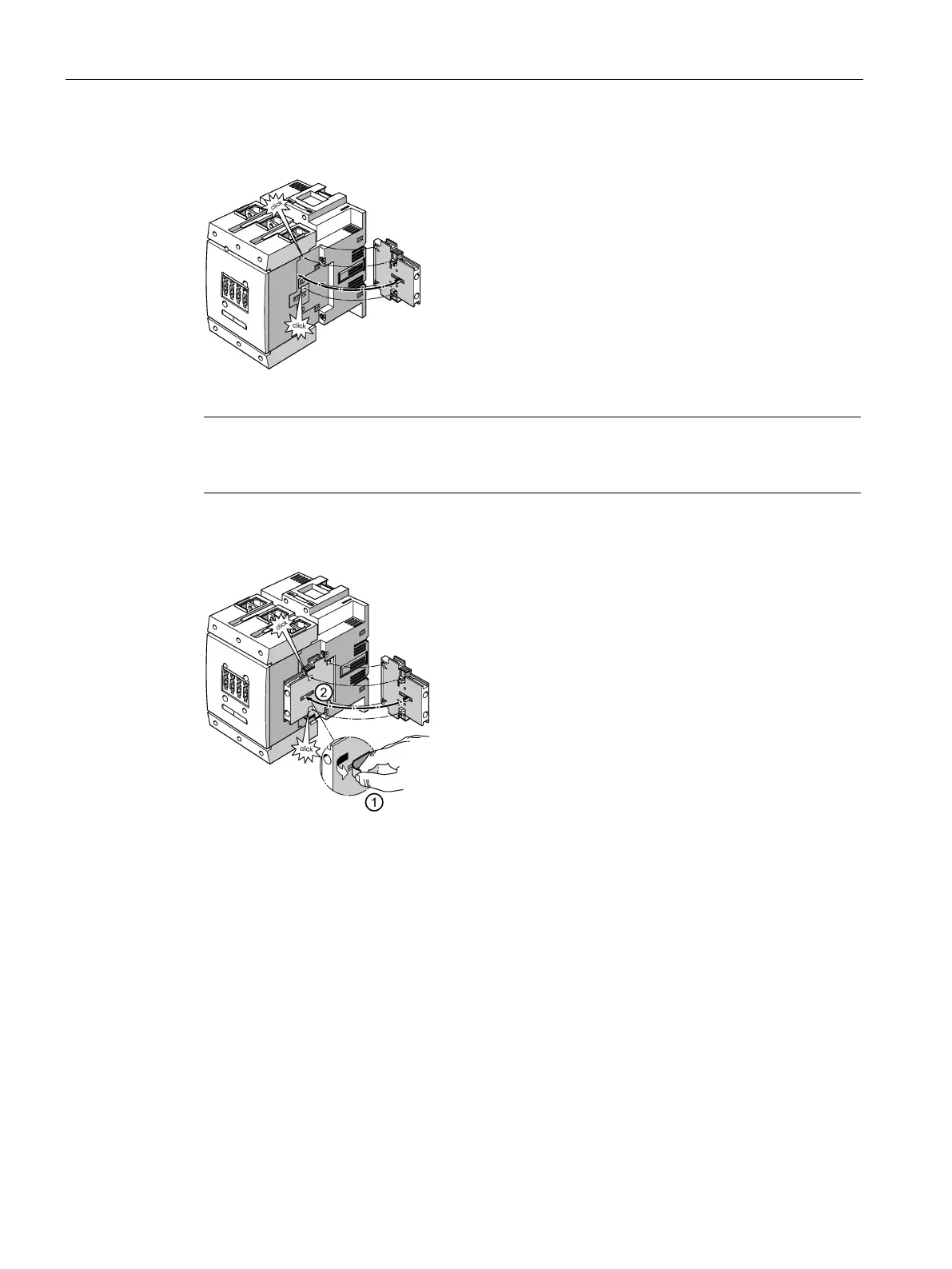

Mounting the lateral auxiliary switch
Attach the lateral auxiliary switch to the contactor and snap it on.
Note
The laterally mountable auxiliary switch blocks according to DIN
EN 50012 can only be used
-pole or 4-pole auxiliary switch blocks are snapped onto the front.
Mounting a second lateral auxiliary switch
Remove the sticker from the laterally mounted auxiliary switch.
Attach the second lateral auxiliary switch to the mounted lateral auxiliary switch and snap it on.
