Commissioning
10.3 Gauge pressure, absolute pressure from differential pressure series, and absolute pressure from gauge
pressure series
SITRANS P DS III with PROFIBUS PA
Operating Instructions, 06/2013, A5E00053276-07
167
10.3
Gauge pressure, absolute pressure from differential pressure series,
and absolute pressure from gauge pressure series
10.3.1

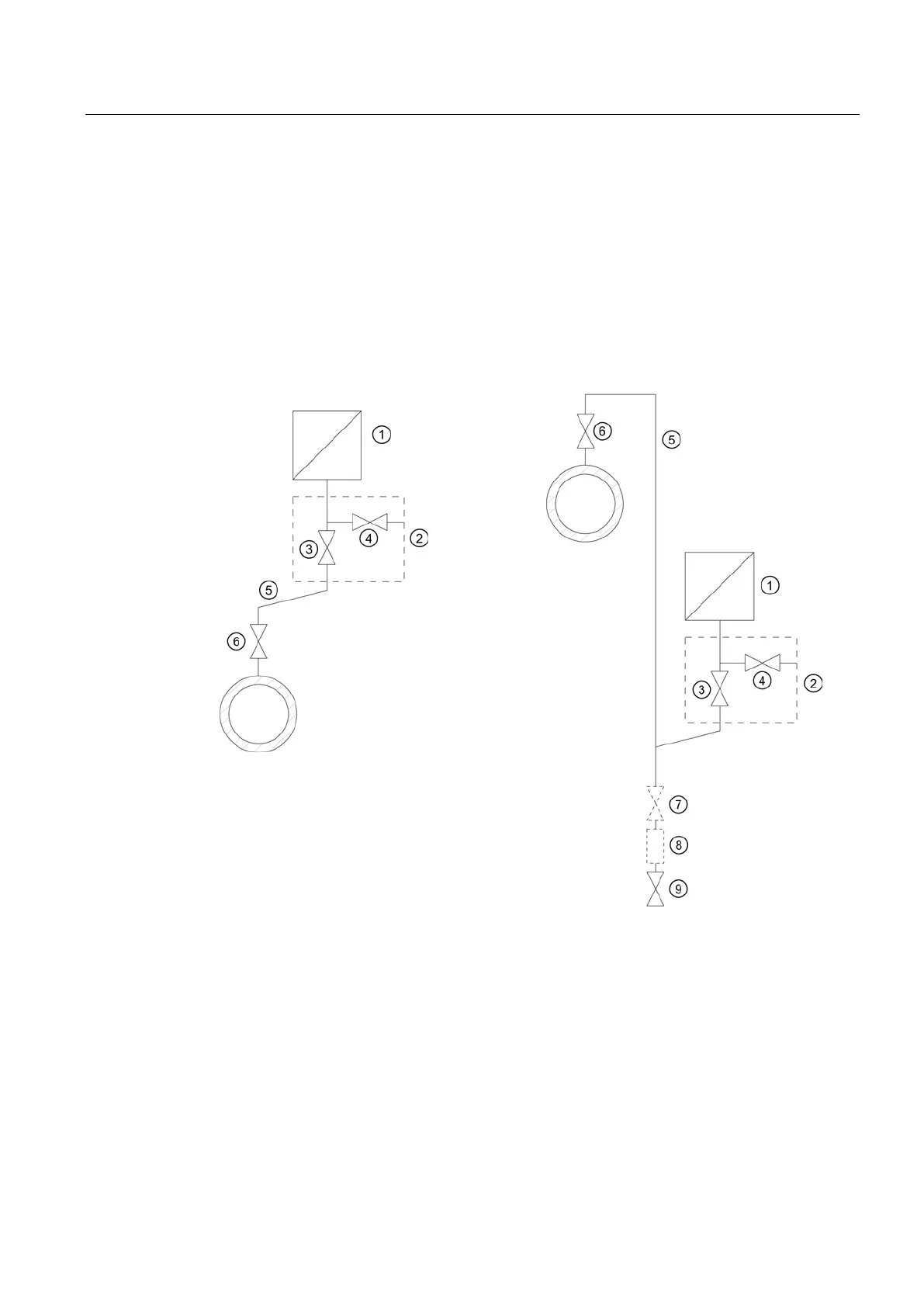

Commissioning for gases
Usual arrangement
Special arrangement
Measuring gases above the pressure tapping
point
Measuring gases below the pressure tapping
point
Pressure transmitter
Pressure line
Shut
-off module
Shut-off valve
Shut
-off valve to process
Shut-off valve (optional)
Shut
-off valve for test connection or for
bleed screw
Condensate vessel (optional)
Drain valve
