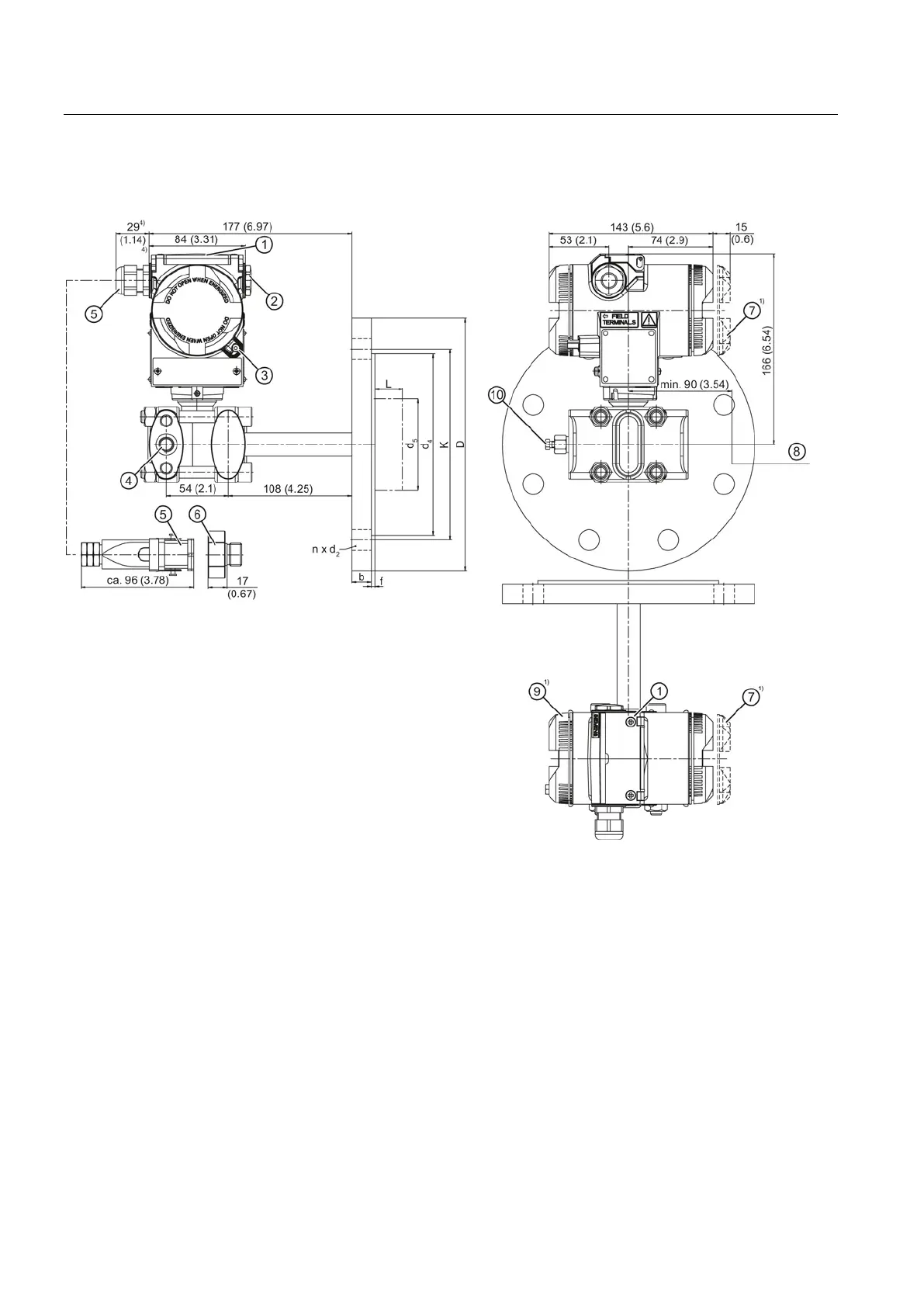

Dimension drawings
14.3 SITRANS P DS III for level
SITRANS P DS III with PROFIBUS PA
226 Operating Instructions, 06/2013, A5E00053276-07
14.3
SITRANS P DS III for level
①
Key cover
②
Blanking plug
③
Cover catch (only for "flameproof enclosure" type of protection)
④
Process connection: Minus side
1
/
4
-18 NPT (EN 61518)
⑤
Electrical connection:
• Pg 13.5 gland (adapter)
2)3)
• M20 x 1.5 gland
3)
•
1
/
2
-14 NPT gland
• Han 7D/Han 8D plug
2) 3)
• M12 connector
⑥
Han 7D/Han 8D adapter
⑦
Electronics side, display (longer for cover with inspection window)
⑧
Space for enclosure rotation
5)
