Dimension drawings

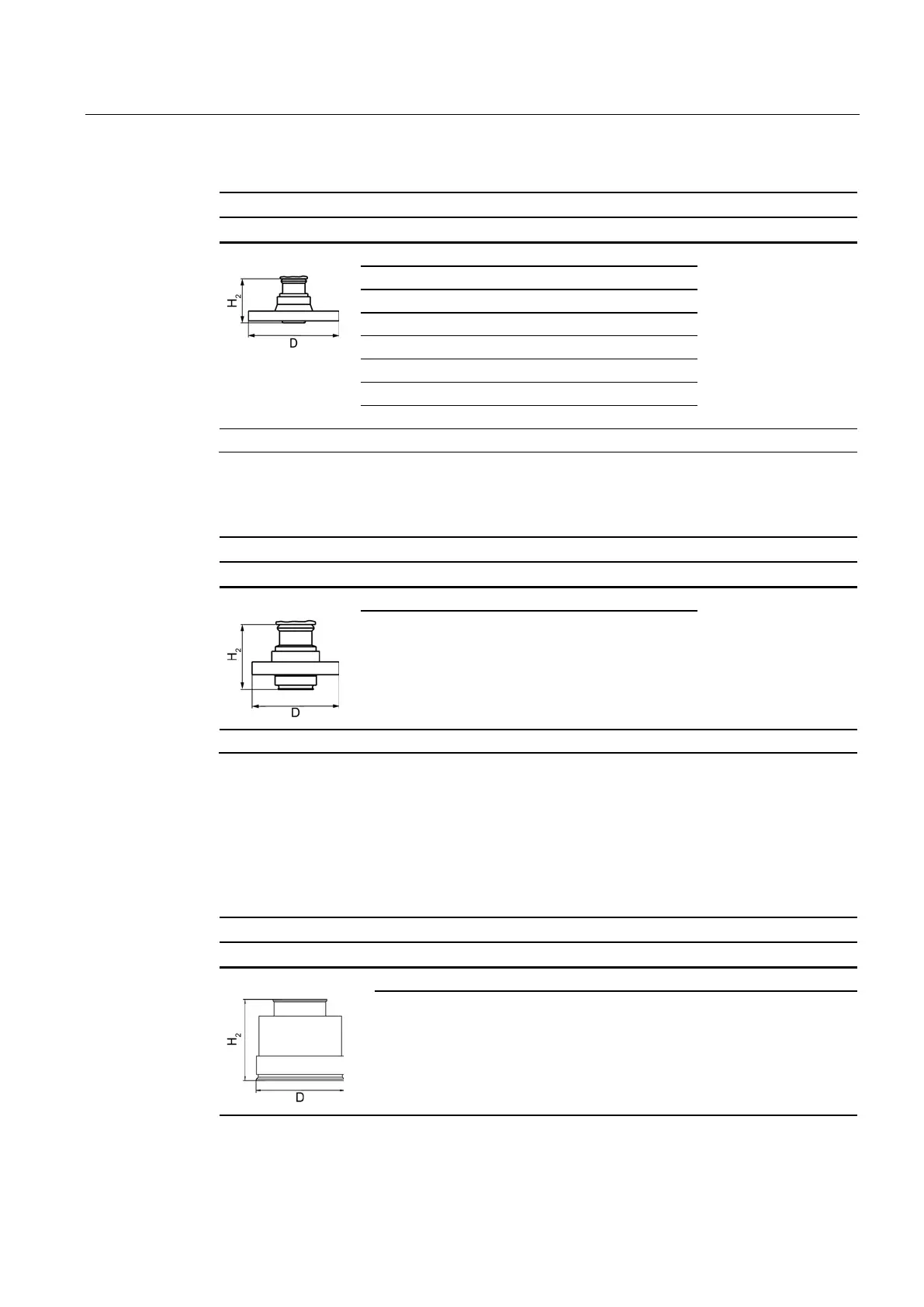

14.4 SITRANS P DS III (flush-mounted)
SITRANS P DS III with PROFIBUS PA
Operating Instructions, 06/2013, A5E00053276-07
233
Connect S
TM
flanged joint
DN
PN
⊘D
H
2
50
16
125 mm (4.9'')
Approx. 52 mm (2'')
65
10
145 mm (5.7'')
80
10
155 mm (6.1'')
100
10
180 mm (7.1'')
2"
16
125 mm (4.9'')
2½"
10
135 mm (5.3'')
3"
10
145 mm (5.7'')
4"
10
180 mm (7.1'')
Approvals
EHEDG
Other connections
BioControl
TM
connector
DN
PN
⊘D
H
2
50
16
90 mm (3.5'')
Approx. 52 mm (2'')
65 16 120 mm (4.7'')
Approvals
EHEDG
14.4.4
PMC Style
Connections for the paper industry
PMC Style Standard
DN
PN
⊘D
H
2
–
–
40.9 mm (1.6'')
Approx. 36.8 mm (1.4'')
M44x1.25 cap nut

Siemens SITRANS P DS III Specifications

General

Type	Pressure Transmitter
Communication	HART, PROFIBUS PA, FOUNDATION Fieldbus
Housing material	Aluminum or Stainless Steel
Measured variable	Pressure
Output signal	4...20 mA HART, PROFIBUS PA, Foundation Fieldbus
Ambient temperature range	-40 to +85 °C
Power supply	10.5...45 V DC
Protection class	IP66, IP67
Process connection	Various
