SDS1000CML+/SDS1000DL+ User Manual 41
■ Slope Trigger：Trigger on positive slope of negative slope according
to setup time of the oscilloscope.
Table 2-19 Slope trigger function menu 1
Option
Setting
Instruction
Type Slope
Trigger on positive slope of negative
slope according to setup time of the
oscilloscope.
Source
CH1
CH2
EXT
EXT/5
Select trigger source.
When
Select trigger condition.
Time
〈Set time〉
Turn the “Universal” knob to set slope
time. Time setup range is 20ns-10s.
Next Page Page 1/2 Enter the second page of slope trigger.

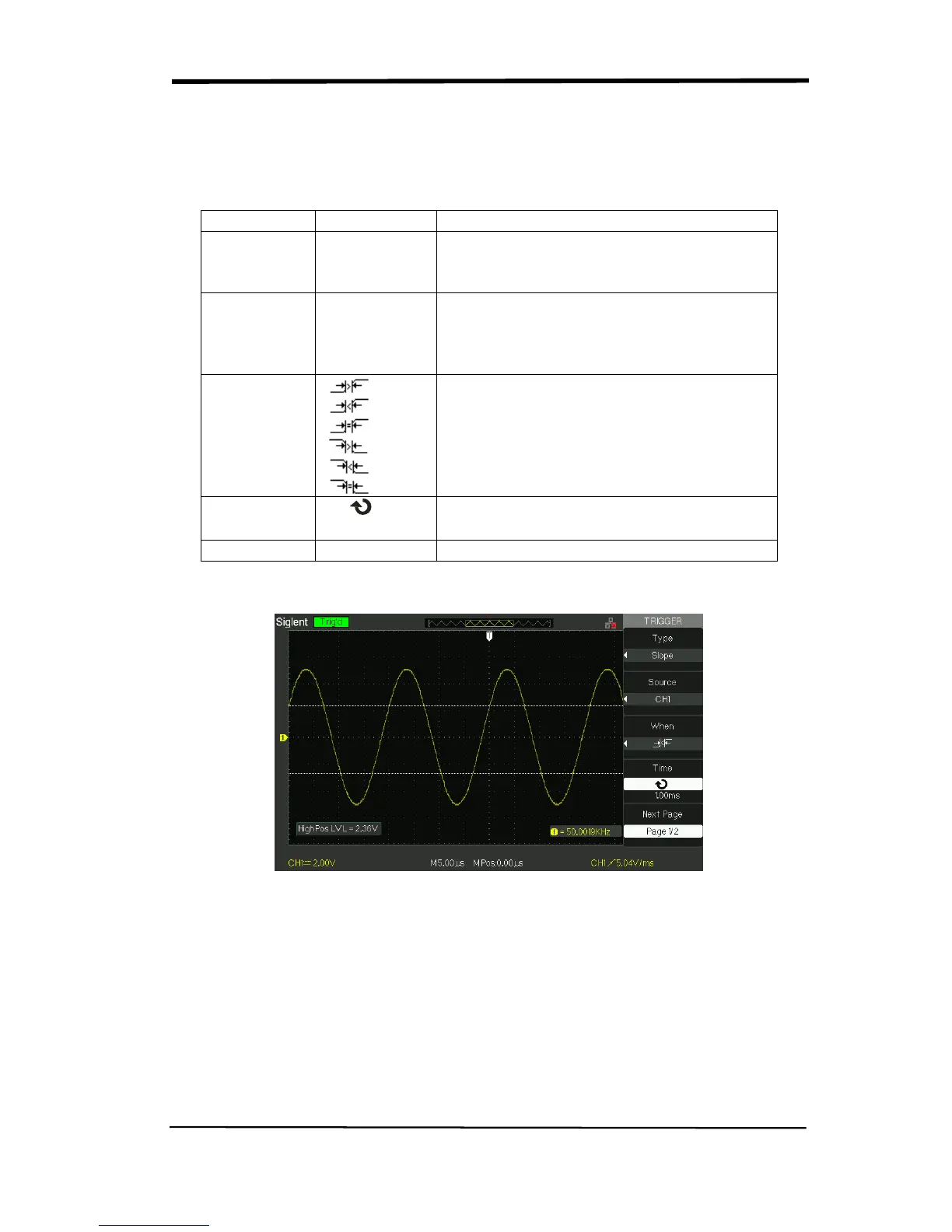

Picture 2.8-6
