Operating Manual - English IDEA

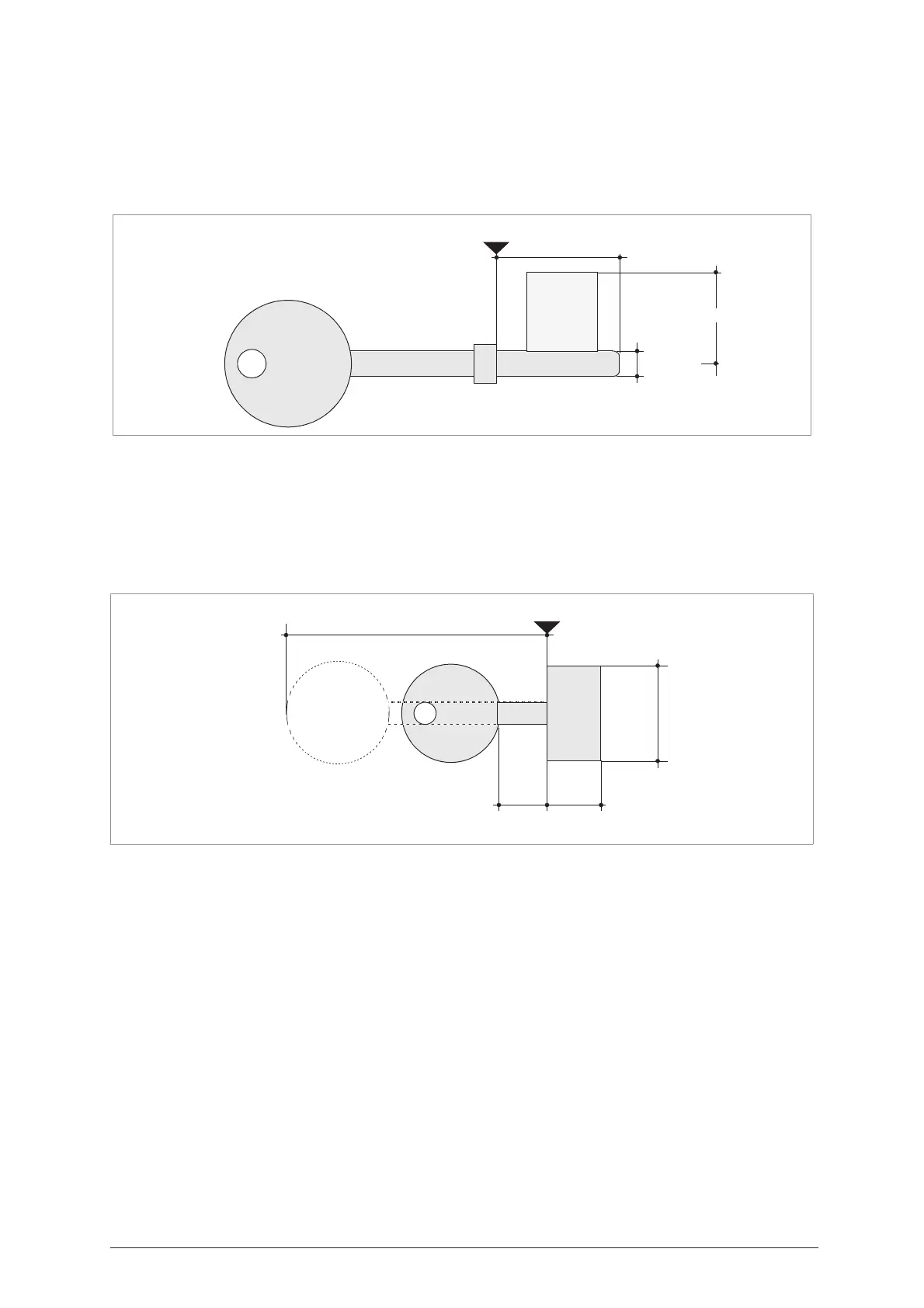

SHOULDER STOP KEYS (E NGLISH TYPE ) ( FIG . 3)
The minimum and maximum dimensions of this type of key are shown in the diagram below.
This class of key includes:
- single bit keys with rim close to the bit
- double bit keys with rim close to the bit
Fig. 3
PUMP KEYS ( FIG . 4)
The minimum and maximum dimensions of this type of key are shown in the diagram below. To cut this type
of key on the IDEA is necessary the optional adaptor D726180ZB.
This class of keys includes
:
- pump keys with round stems (ø max. 7 mm - min.4 mm)
- pump keys with flat stems (7 mm)
Fig. 4
max.26 mm
max.6 mm
max.20 mm
Stop
Stop 3
min.
12 mm
max.
19 mm
max. 22 mm
max. 55 mm
