IDEA Operating Manual - English

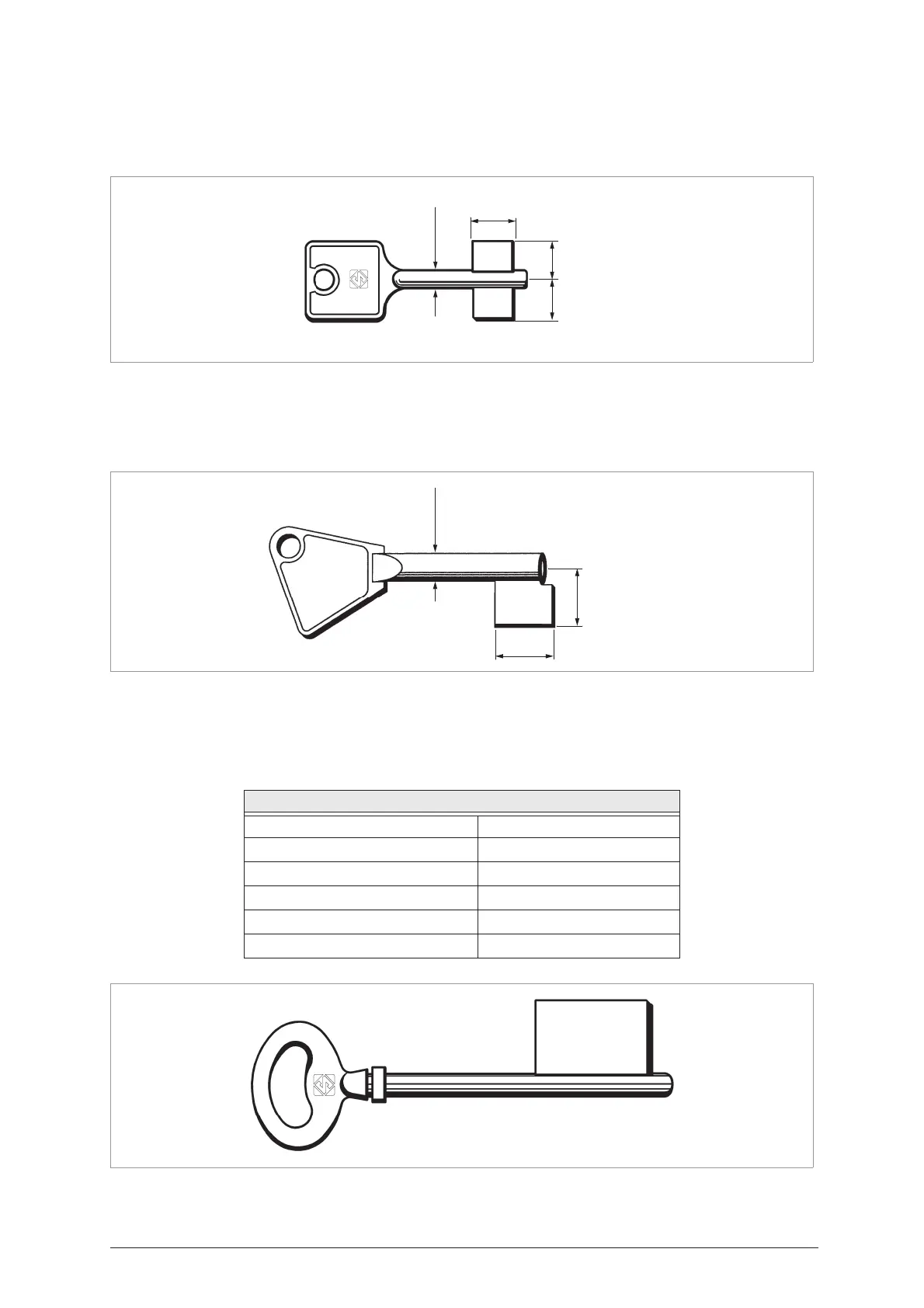

SMALL BIT/DOUBLE BIT KEYS ( FIG . 5)
The minimum and maximum dimensions of this type of key are shown in the diagram below. To cut this type
of key on the IDEA is necessary the optional adaptor D727711ZB (cap. 5.13 a pag. 53).
Fig. 5
SPECIAL BIT FEMALE KEYS ( FIG . 6)
The minimum and maximum dimensions of this type of key are shown in the diagram below. To cut this type
of key on the IDEA is necessary the optional adaptor D728717ZB (cap. 5.14 a pag. 57).
Fig. 6
KEYS WITH REAR STOP ( FIG . 7)
The maximum dimensions of this type of keys are described in the table below. To cut this type of key on the
IDEA is necessary the optional adaptor D727498ZB (cap. 5.12 a pag. 43).
Fig. 7
TYPE OF KEYS
Stem diameter min. 5 mm - max. 7 mm
Collar diameter max. 9 mm
Bit length in reading max. 40 mm
Bit height max. 17 mm / 19,5 mm
Distance from stop to bit min. 6 mm
Head width max. 30 mm
max 4 mm
max 18 mm
max 12 mm
max 12 mm
max 15 mm
max 31 mm
max 7 mm
