1.3 System components
A basic AP35 system consists of the following units (refer to Figure 1-1):
• AP35 Control Unit with accessories
• Heading sensor
• Rudder Feedback Unit with transmission link
• Junction Unit
• Drive unit
The basic system can be expanded with remote control unit, hand held
remote and steering lever.

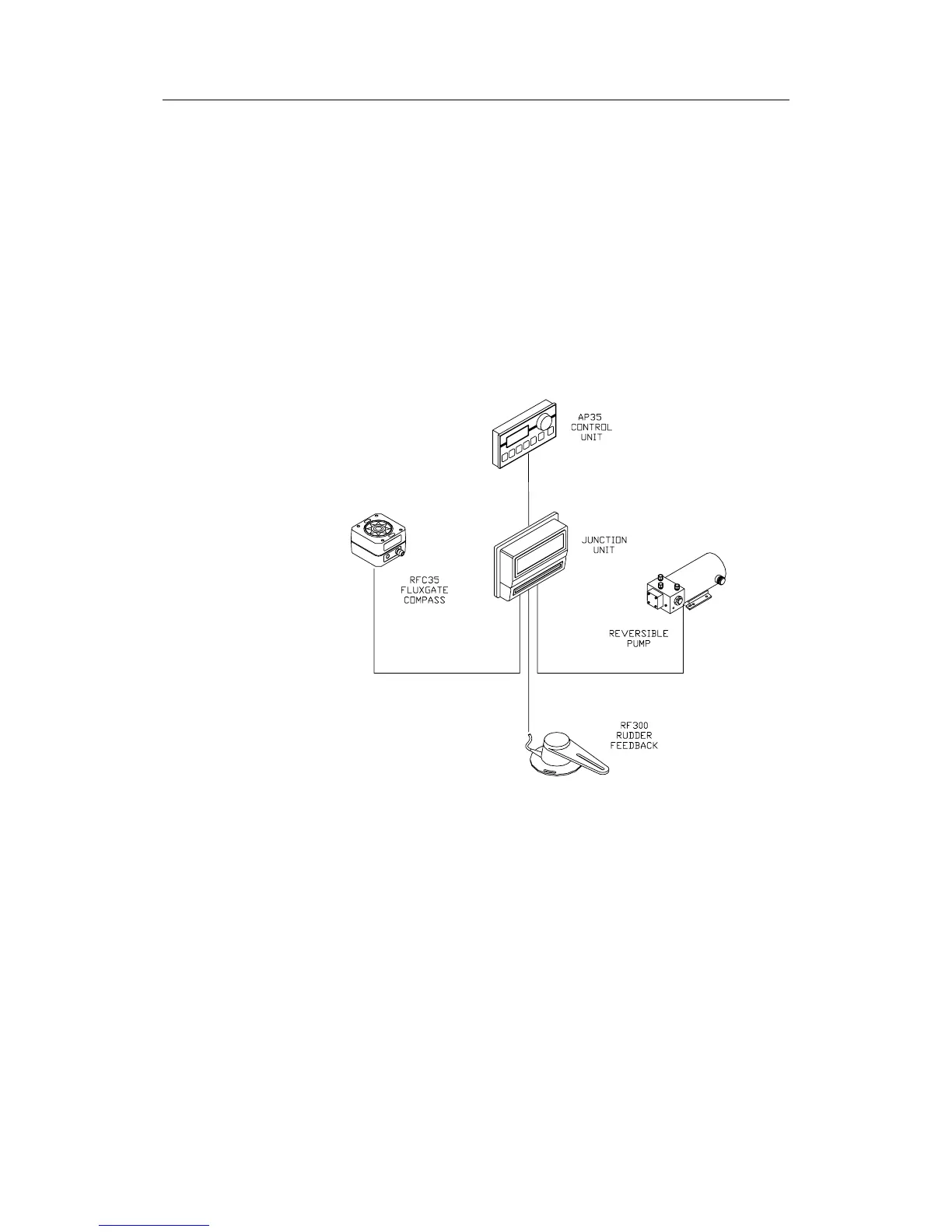

Figure 1-1 AP35 Basic system
1.4 AP35 Control Unit
A compact autopilot control for panel, bulkhead or bracket mounting. Large
LCD display for readout of autopilot data and rotary course selector. It has
two Robnet connectors for system inter- connection and expansion.
