3.7 RI35 Mk2 Rudder Angle Indicator
Dimensions:...............................See Figure 3-5
Weight: ......................................1.0 kg
Supply voltage:..........................12/24V DC –25%/+30%, polarity
independent
Power consumption:..................Max 3 W
Input signal:...............................Frequency 3400 Hz (midship reference),
±20Hz/degree, polarity independent
Current: 0.1 - 1.1mA (midship 0,6mA),
polarity independent
NMEA 0183 RSA (min. 10 Hz)
$--RSA,x.x,A,x.x,A*hh<cr><lf>
Output signal: ............................NMEA 0183 RSA 20Hz:
$--RSA,xx.x,A,,*hh<cr><lf>
Accuracy:...................................±1° (Indicator alone)
Temperature range:....................Storage: –30°C to +80°C
Operating: –10°C to +55°C
Environmental protection:.........IP56
Safe distance to
magnetic compass: ....................0.3 m (1 ft)
Cable: ........................................20 m, single twisted pair (not connected).

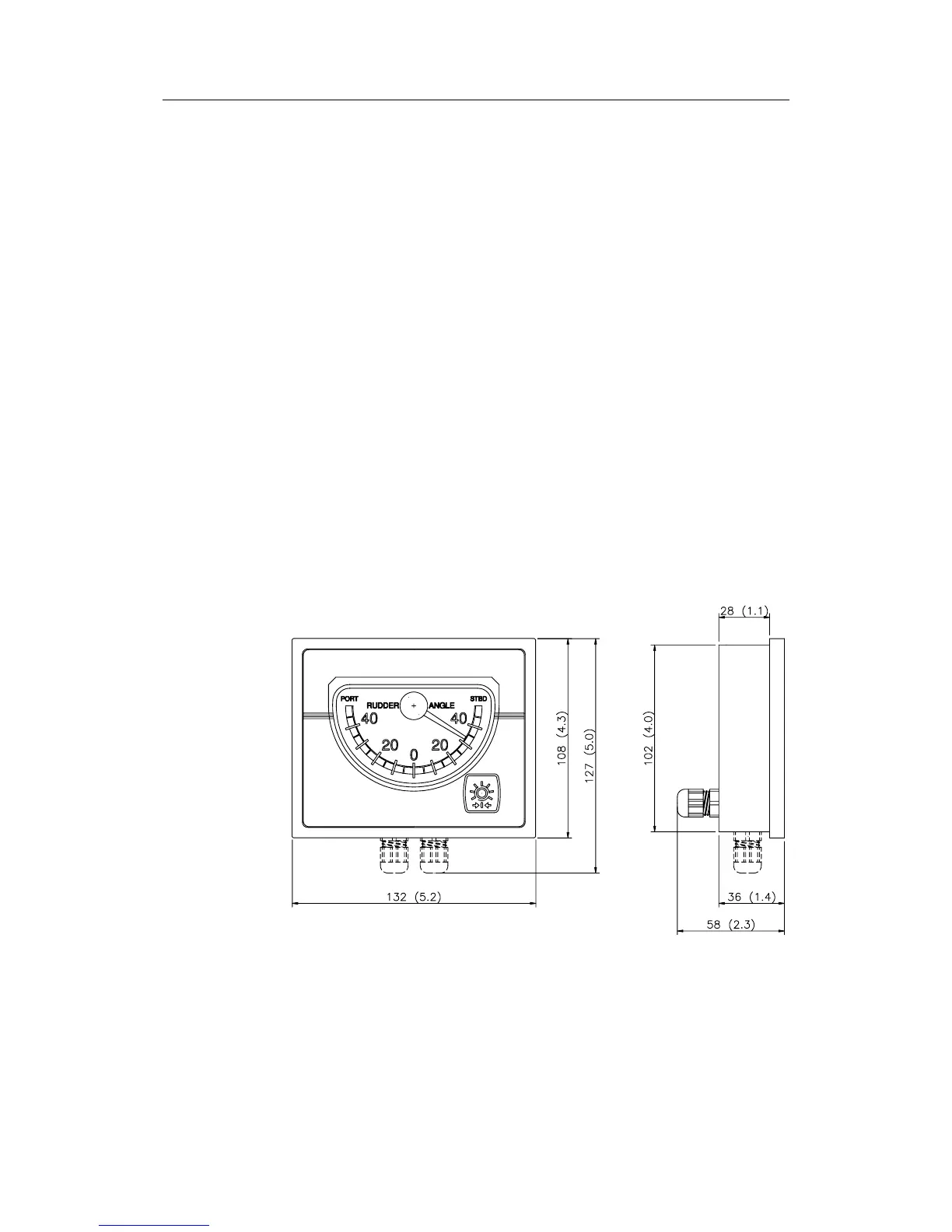

Figure 3-5 RI35 Mk2 Dimensions
