Installation
22083083H 57
HOW TO REMOVE PINS:
Extraction tool
Pull the wire
Insert tool in slot
Note ! For installations that require special cable length, contact your Simrad
distributor for information.
4.11 RFC35 Fluxgate Compass

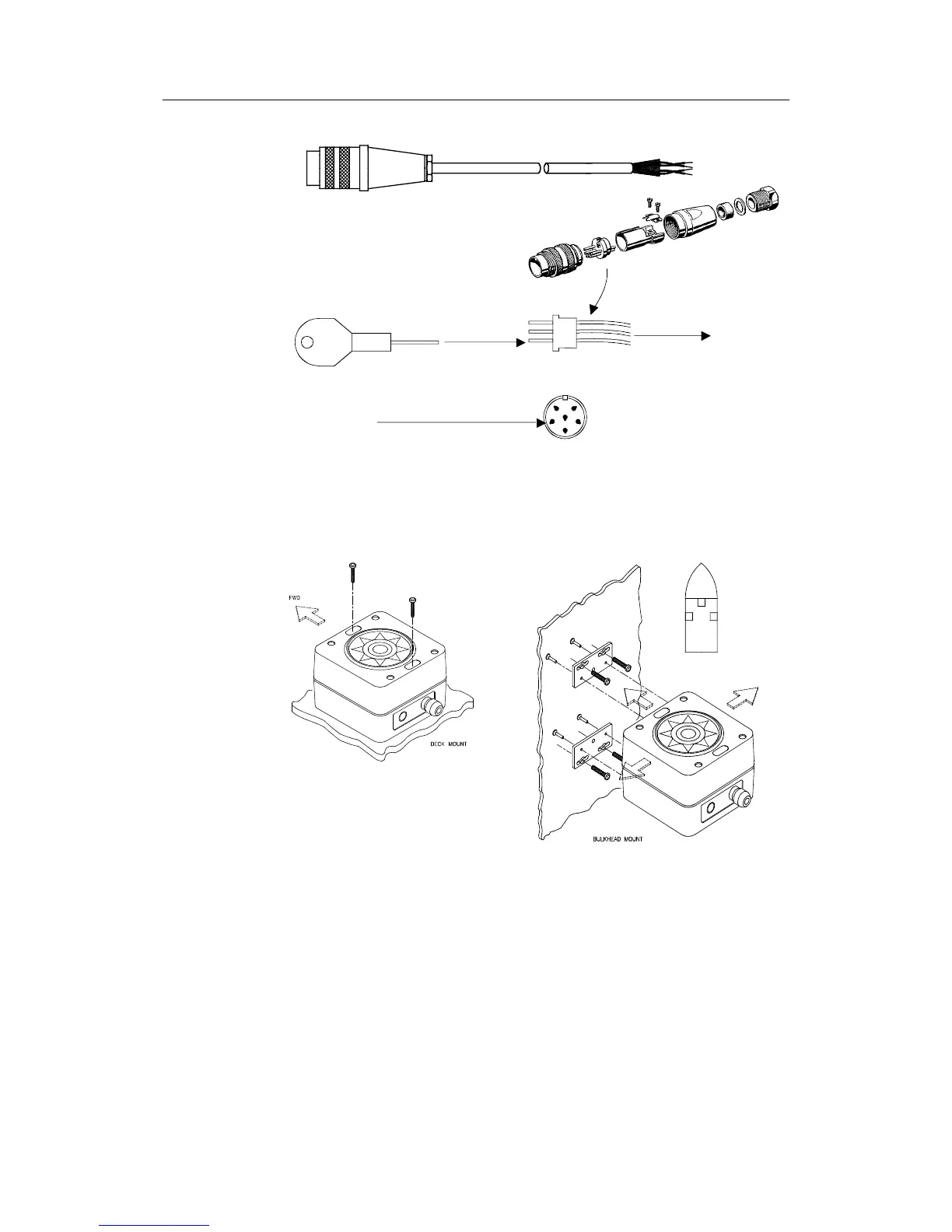

Figure 4-14 RFC35 mounting
The heading sensor is the most important part of the AP35 system and great
care should be taken when deciding the mounting location. As the sensor
heading is displayed on the AP35 Control Unit, the heading sensor can be
mounted at any location where there is a minimum of magnetic interference.
Note ! An autopilot heading sensor should not be installed on the fly bridge or in
the mast.
The RFC35 compass can be deck mounted or on the bulkhead, athwart ship
or along ship. The heading offset feature in the AP35 will compensate for
the mechanical offsets that may be a result of the selected location and
orientation of the RFC35.
