3.4 RFC35 Fluxgate compass
Dimensions:....................................See Figure 3-4
Weight: ...........................................0,9 kg (2,0 lbs)
Supply and output:..........................Polarity independent 2-wire supply with
superimposed pulse width modulation
Automatic Performance:
Calibration: .............................Automatically activated by control head
Gain compensation: ................Automatically adjusted continuously
Repeatability:..................................± 0.5 degrees
Roll/Pitch:.......................................± 35 degrees
Accuracy:........................................<1° (rms)
Cable supplied:...............................15 m shielded cable
Temperature range:
Operation: ...............................0 to +55 °C (+32 to + 130 °F)
Storage:...................................–30 to +80 °C (–22 to +176 °F)
Environmental Protection:..............IP56
Mounting: .......................................Deck or bulkhead
Material: .........................................Black ABS

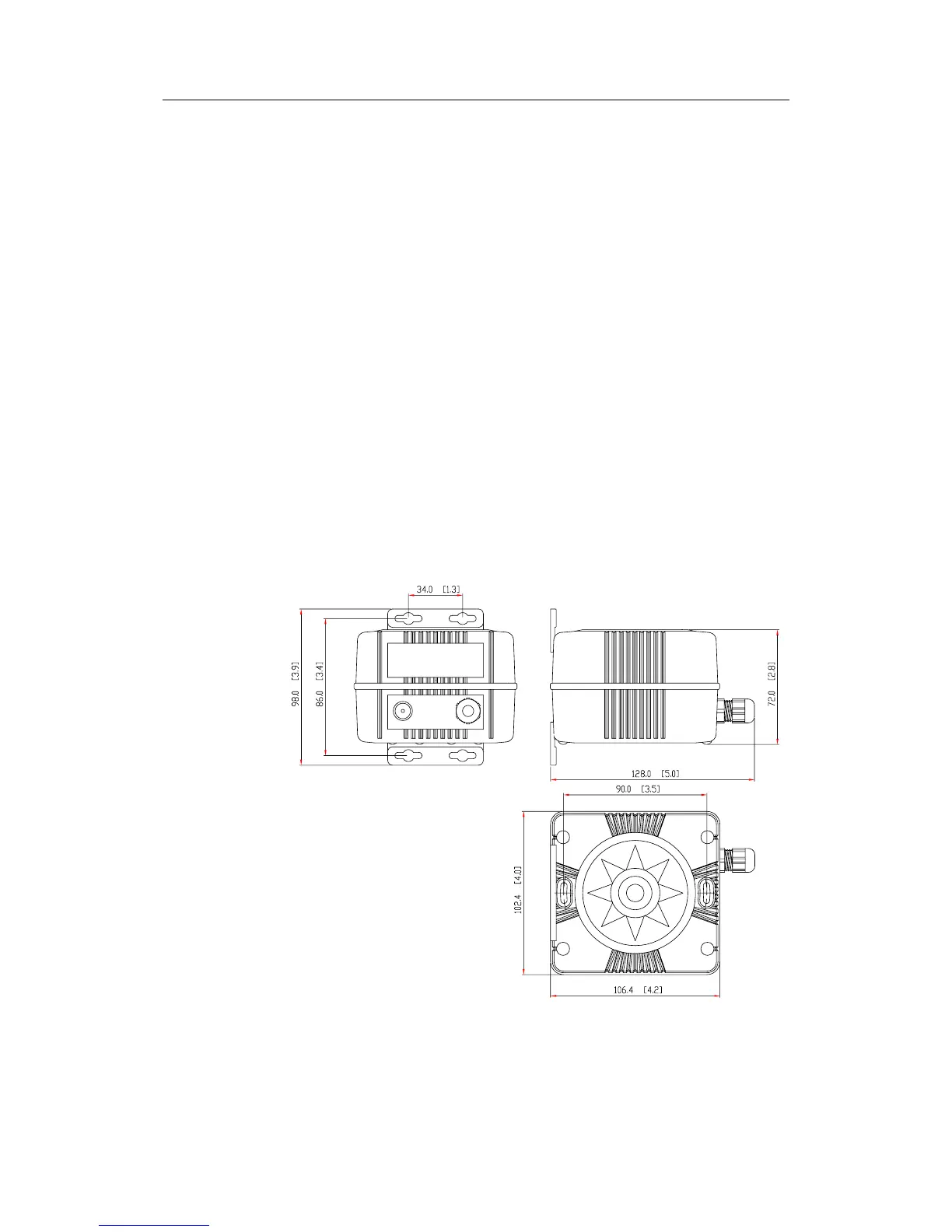

Figure 3-4 RFC35 Fluxgate Compass – Dimensions
