Simrad AP35 Autopilot
30 22083083H
3.2 AP35 Control Unit
Dimensions:....................................See Figure 3-1
Weight: ...........................................0,9 kg (2.0 lbs)
Display:
Type:.......................................Backlit LCD matrix display
Resolution:..............................80 x 32 pixels
Color:..............................................Black
Illumination: ...................................Adjustable in 10 steps
Environmental Protection:..............IP56
Safe distance to compass:...............0.5 m (1,6 ft)
Temperature:
Operating: ...............................0 to +55 °C (+32 to +130 °F)
Storage:...................................–30 to +80 °C (–22 to +176 °F)

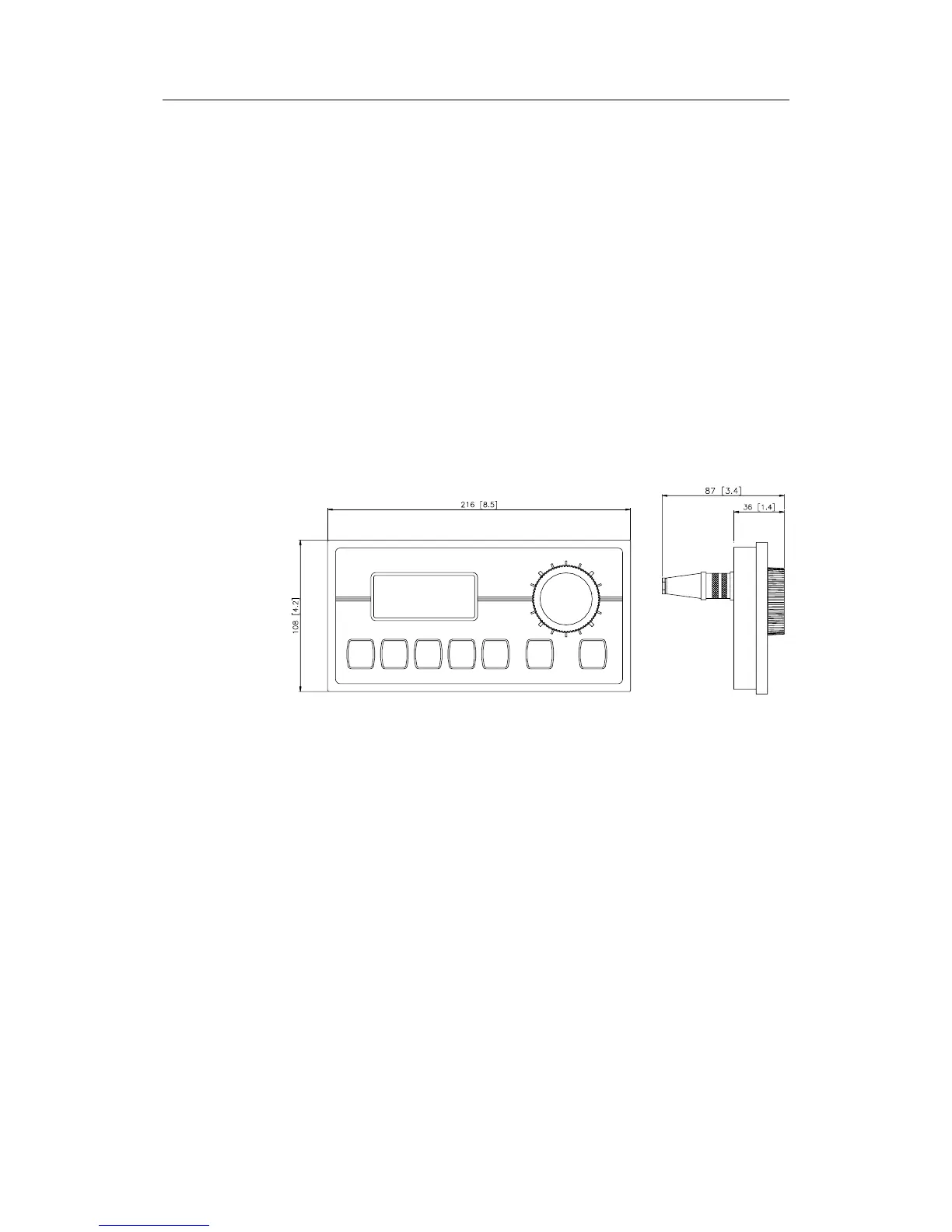

Figure 3-1 AP35 Control Unit - dimensions
Drw. no. N3-208305
3.3 Junction units
Dimensions:....................................See Figure 3-2 and Figure 3-3
Weight:
J300X/J3000X ........................1,3 kg (2,9 lbs.)
J300X-40 ................................2,8 kg (6,2 lbs)
Supply voltage:
J3000X....................................10-28V DC
J300X/J300X-40.....................10-40V DC
Reverse voltage protection .............Yes (not J300X-40)
Power consumption: .......................5 Watt (electronics)
Clutch/bypass load: ........................Max 1,5 Amps
Motor / solenoid drive: ...................10 A continuous, 20 A for 5 seconds
Heading Sensor input: ....................Composite pulse width modulated
Rudder feedback input: ..................Frequency signal, 3400 Hz., 20 Hz/deg.
Rudder feedback units:...................RF300 or RF45X
