Simrad AP35 Autopilot
70 22083083H
Note!
Lock nut on mounting
screw (pos. 1) for
transportation only. To be
removed before mounting.

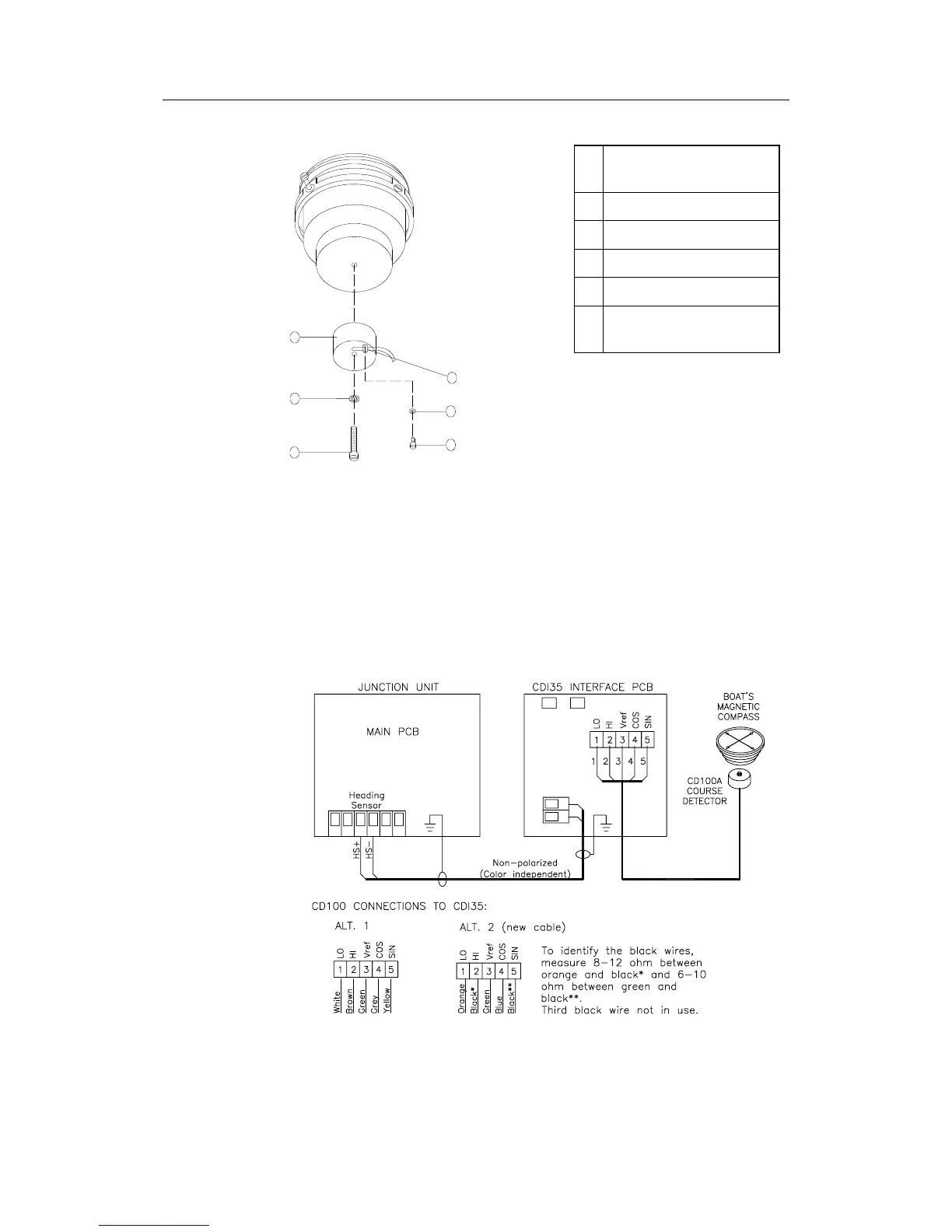

Figure 4-32 CD100A mounting
4.31 CDI35 Interface
Locate the CDI35 as close to the compass as possible so that there will be no
problem finding it in the event of a service.
Put the two fixing screws in the slots and secure the unit to the bulkhead.
Open the unit to access the screw terminals.
Connect the cables as shown on the diagram below.
Figure 4-33 CDI35 connection
Note ! CD100 has a connector that has to be cut off the cable.
1 Screw M6x25mm, non
magnetic
2 Washer, non magnetic
3 Course detector
4 Cable clamp, nylon
5 Washer, non magnetic
6 Screw M3x10mm, non
magnetic
3
2
1
4
5
6
