36 22083083H
3.9 RF45X Rudder Feedback Unit
Dimensions:....................................See Figure 3-8
Protection: ......................................IP56
Ambient temperature:.....................–10 - +55°C
Operating voltage: ..........................12V DC (autopilot supplied)
Frequency output, Feedback: .........3400Hz (midship reference)
Port: +20Hz/degree, stbd: -20Hz/degree
Current output, Indicator ................0.1mA - 1.1mA
Capacity:.........................................5 indicators in series
Rudder angle: .................................±45°
Cable length:...................................2 m (6 ft)

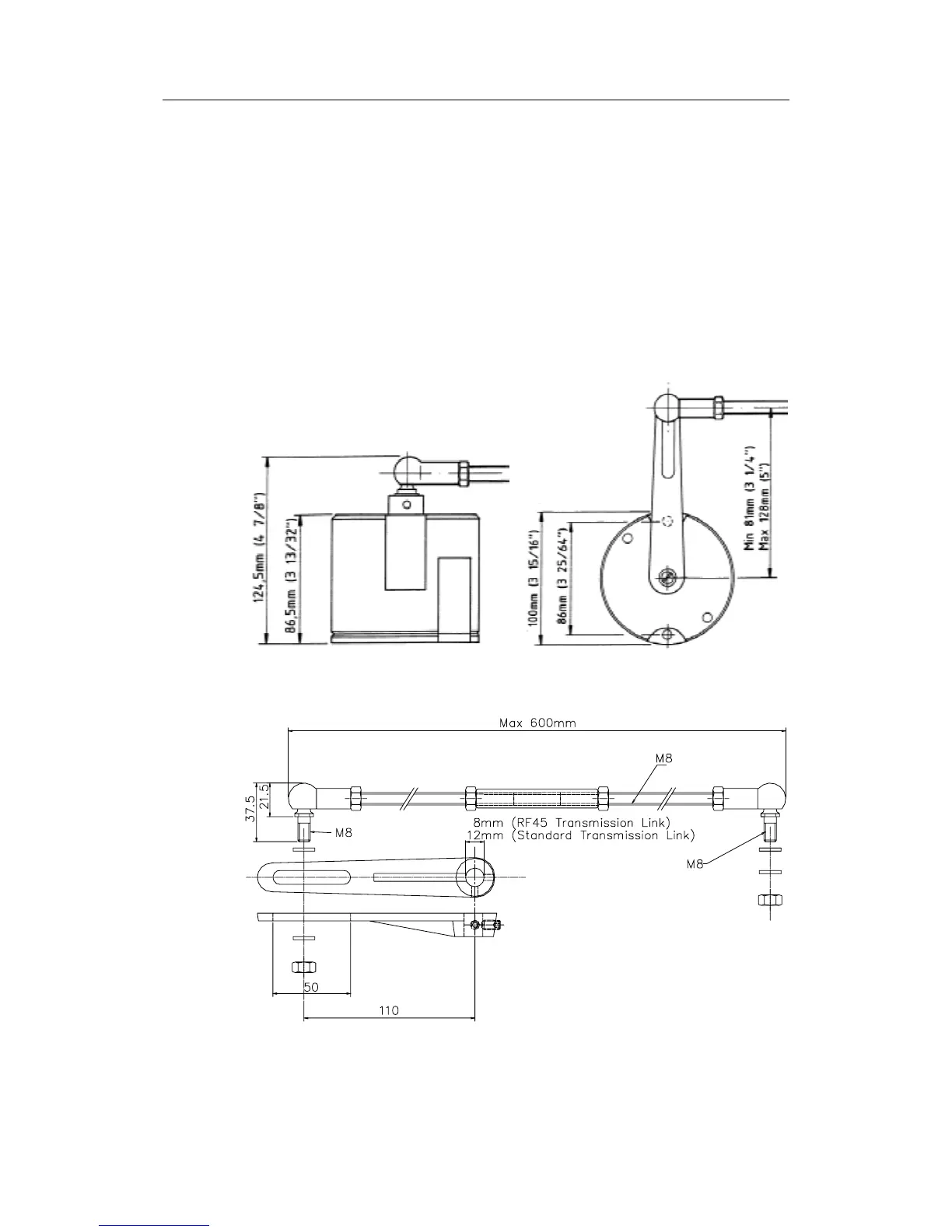

Figure 3-8 RF45X Rudder Feedback Unit
Figure 3-9 RF45 Transmission Link
