Simrad AP35 User Manual

Operation
22083083H 17
2.3 Follow-Up steering

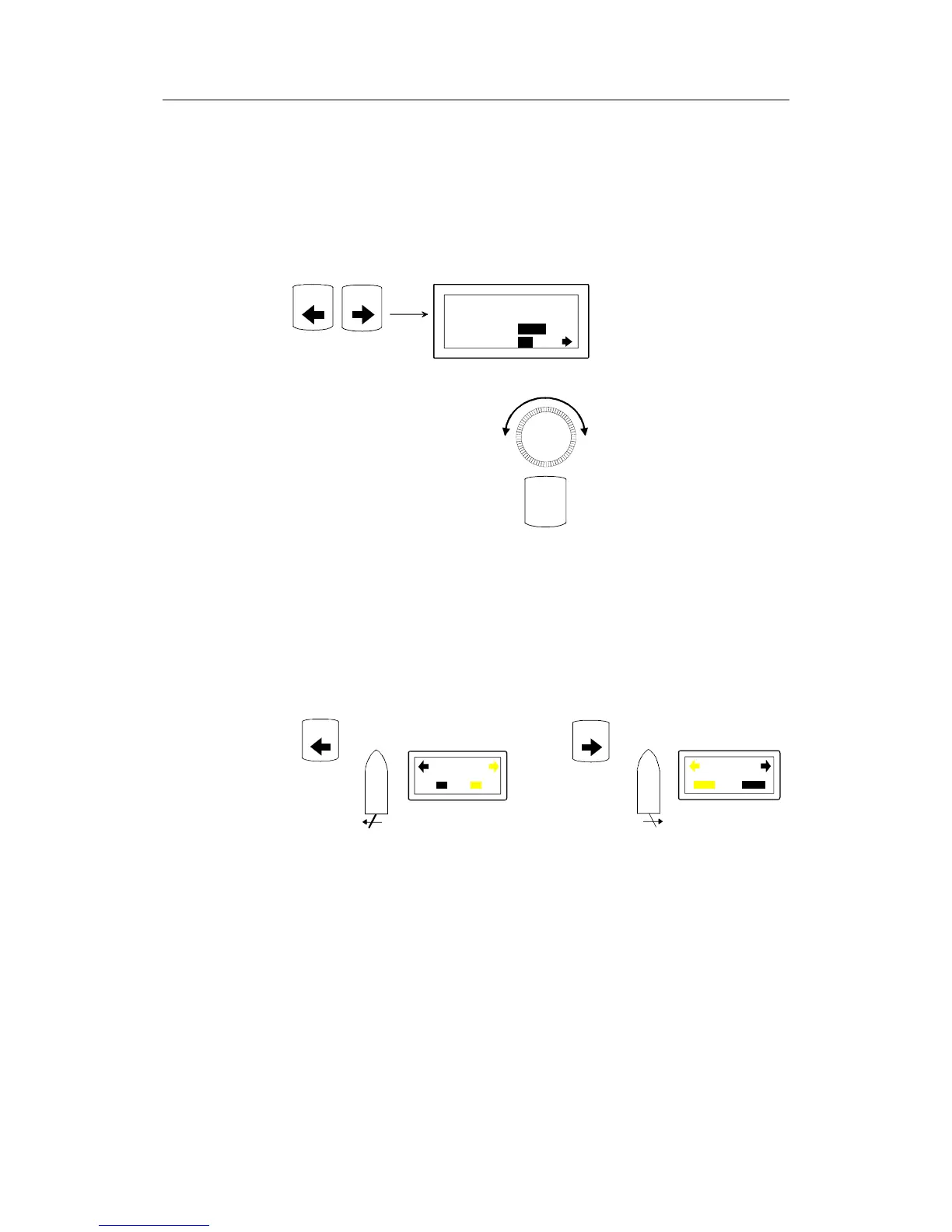

When both the PORT and STBD push buttons are pressed simultaneously
the AP35 is set to Follow-Up steering mode and rudder commands can be set
by the course dial. One revolution of the dial equals 45° rudder command.
The rudder will move to the commanded angle and stop.
Press both buttons
simultaneously to
activate Follow-Up
FU
22
12
STBD
PORT
Follow-Up mode.
Commanded rudder angle:
22° to stbd.
Rudder angle:12
P
S
Use course knob to
command rudder angle.
STBY
OFF
Return to manual control in
STBY by pressing the
STBY button.
WARNING ! While in Follow-Up mode, you cannot take manual control of the
vessel.
2.4 Non-Follow-Up steering
In STBY mode, when the PORT or STBD push button is pressed separately,
the actual rudder angle is shown on the secondary display and the rudder will
move as long as the button is pressed.
03
NFU
A
ctivates
PORT
Rudder
command
05
NFU
Activates
STBD
Rudder
command
Actual rudder angle
Actual rudder angle
PORT
STBD
2.5 NFU Steering lever
In STBY mode the rudder will move as long as the lever is offset to Port or
Starboard
2.6 NFU Push button remote control
In STBY mode the rudder will move as long as the Port or Starboard button
is pressed.
Note ! When a NFU steering lever or remote control is operated, the control unit(s)
become "Inactive".
