Simrad AP35 Autopilot
92 22083083E
• The identification tag indicates:
- Name of unit
- Simrad Egersund part number
- Software version
Caution ! Make sure that the right EPROM
is mounted in the actual unit.
EPROM for AP35 Control Unit: P/N 22082978
EPROM for J300X, J300X-40 and
J3000X Junction units: P/N 22081640
• After change of EPROM, perform a master reset as
described on page 78.
Modification on AP35 PCB
Refer to our Technical bulletin no. 10/97. The modification is valid from
PCB S/N 913 and onwards. Modified PCBs are not compatible with former
S/N code ---A70 of the control unit. All AP35 Control Units from S/N
905A71 onwards have got modified PCBs, and accordingly they have got
the new A71 code.
It is important to notice that PCBs with revision D are not compatible with
PCBs having revision C or earlier. As a consequence the following must be
observed:
1. Control units with S/N code A71 must have PCBs with revision D.
2. Control units with S/N code A70 must have PCBs with revision C or
earlier.

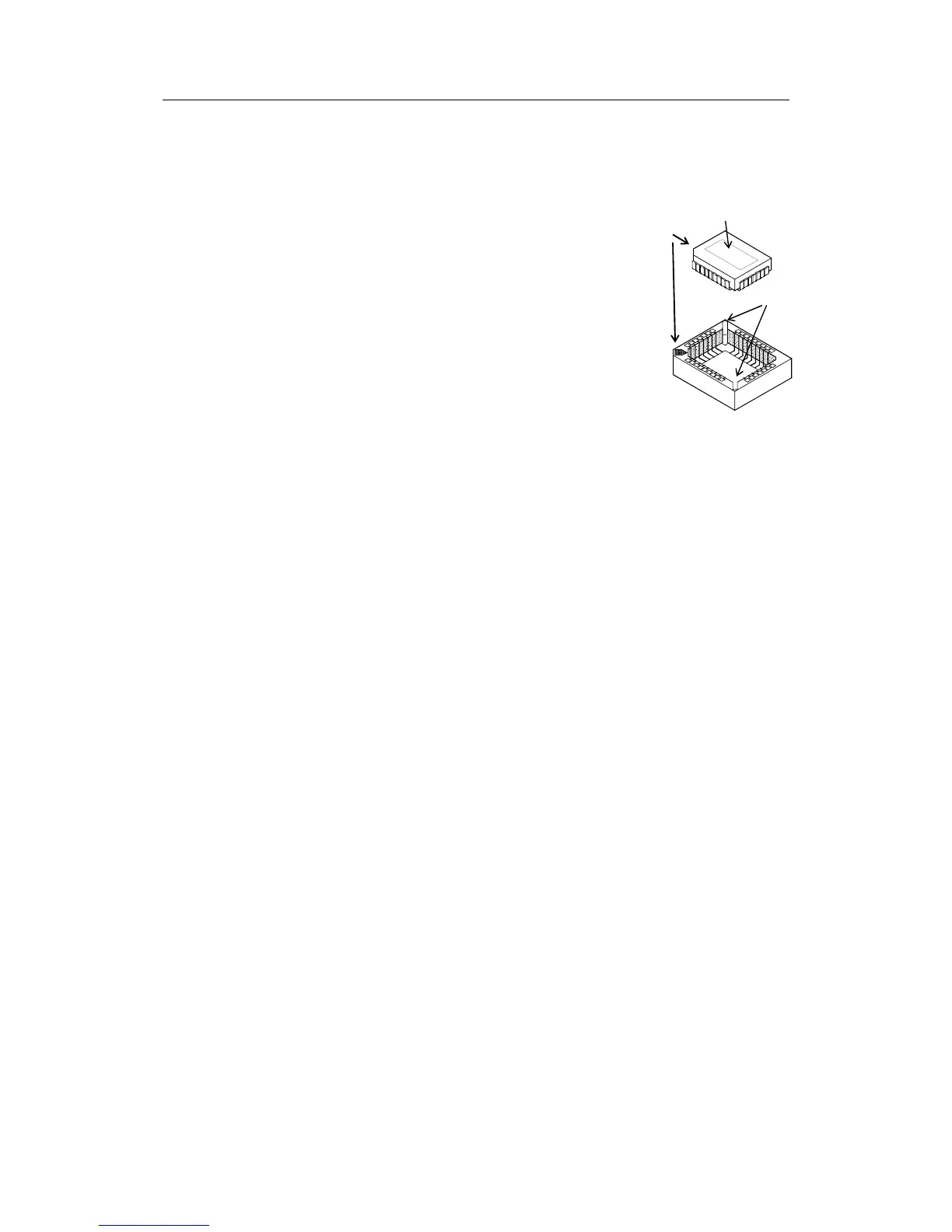

Cut-off
corner
Identification
tag
Slots
