4.21 Additional NMEA output on Port 2
Output signal Output terminal Output sentence
Continuous output of
compass heading on 10 Hz
(10x/sec.) NMEA format
Junction unit, Power PCB,
NMEA2, TX2+, TX2–
HDT (True) or HDG
(Magn.) depending
on heading source.
4.22 NMEA Compass in
POWER PCB
TB8
TB9 TB10
RX2
RX2+
NMEA
Input2
J300X / J300X-40 JUNCTION UNIT
NMEA
COMPASS

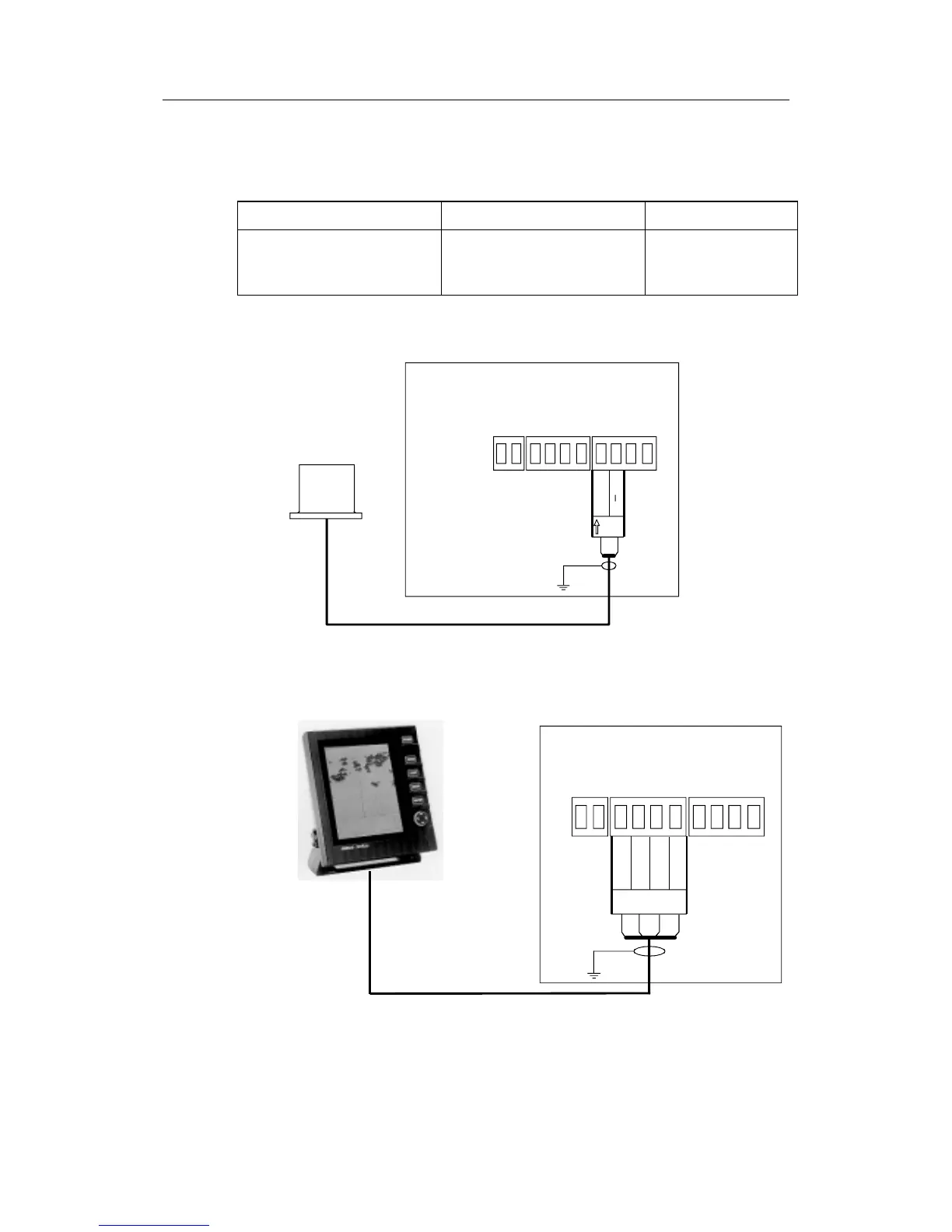

Figure 4-23 NMEA compass connection
4.23 Radar Clock/Data
J300X JUNCTION UNIT
POWER PCB
Radar
TB8
TB9
TB10
Data_h
Data_c
Clk_h
Clk_c
ANRITSU
OR
FURUNO
RADAR
Figure 4-24 Radar Clock/Data connection
