3.15 FU50 Steering Lever
Dimensions:.......................See Figure 3-14.
Handle can be mounted pointing upwards or
downwards.
Weight: ..............................1.2 kg (2.6 lbs.) including cable
Material: ............................Polyacetal (POM)
Environmental protection:.IP56
Power consumption: .........3W
Safe distance to compass:..0.15 m (0.5ft.)
Temperature:
Operating:................–10 to +55°C (+14 to +130°F)
Storage: ...................–30 to +80°C (–22 to +176°F)
Cable: ................................10 m (33 ft.) cable with three twisted pairs of
wire run through a cable gland (see Figure 3-14).
Alternatively the cable gland can be mounted on
the back cover.
Max. rudder command angle: Equal to physical stop minus 2°
Autopilot interface:............Via proprietary Robnet™ bus.
Accuracy:...........................±1° within ±40° of mid-position at 25°C.

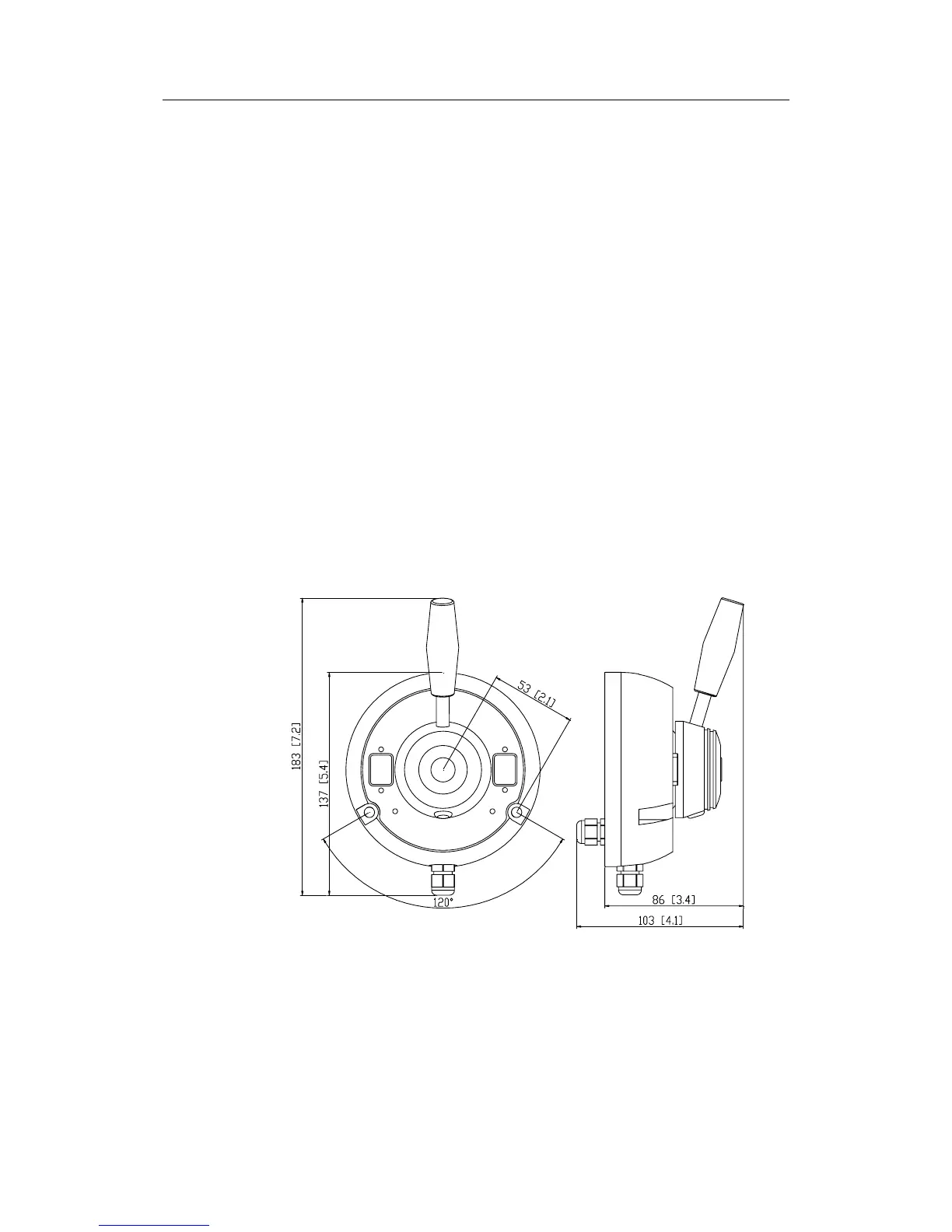

Figure 3-14 FU50 Dimensions
