Simrad AP35 - Figure 3-2 J300 X;J3000 X Junction Unit - Dimensions; Figure 3-3 J300 X-40 Junction Unit - Dimensions

Technical Specifications
22083083H 31
NMEA input/output ports:..............J3000X: 1 (one)
J300X, J300X-40: 2 (two)
External Alarm: ..............................Open collector
Temperature range:
Operation: ............................... 0 to +55 °C (+32 to +130 °F)
Storage:...................................–30 to +80 °C (–22 to +176 °F)
Mounting: .......................................Bulkhead mount
Material: .........................................Anodized aluminium and black ABS
cover

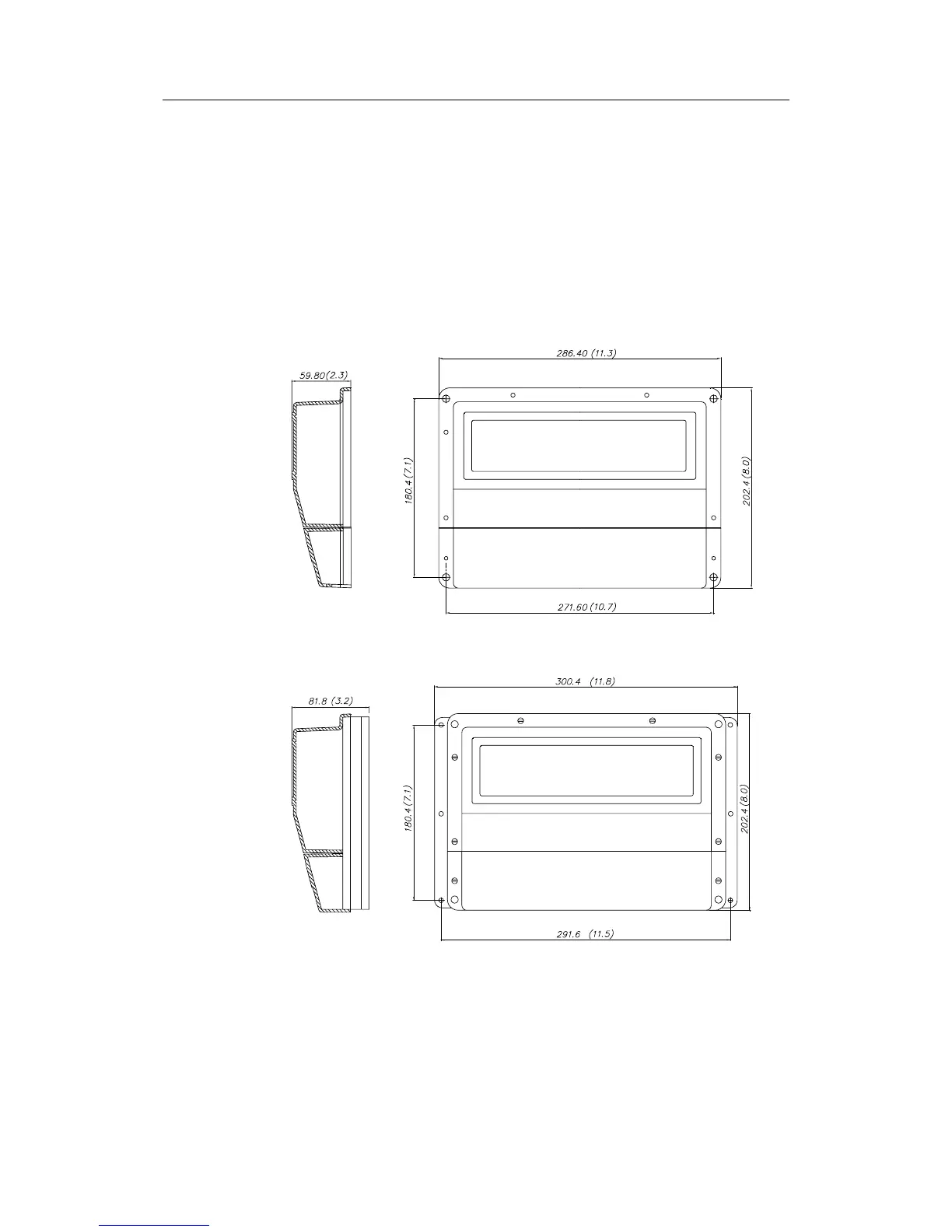

Figure 3-2 J300X/J3000X Junction Unit - Dimensions
Figure 3-3 J300X-40 Junction Unit - Dimensions
