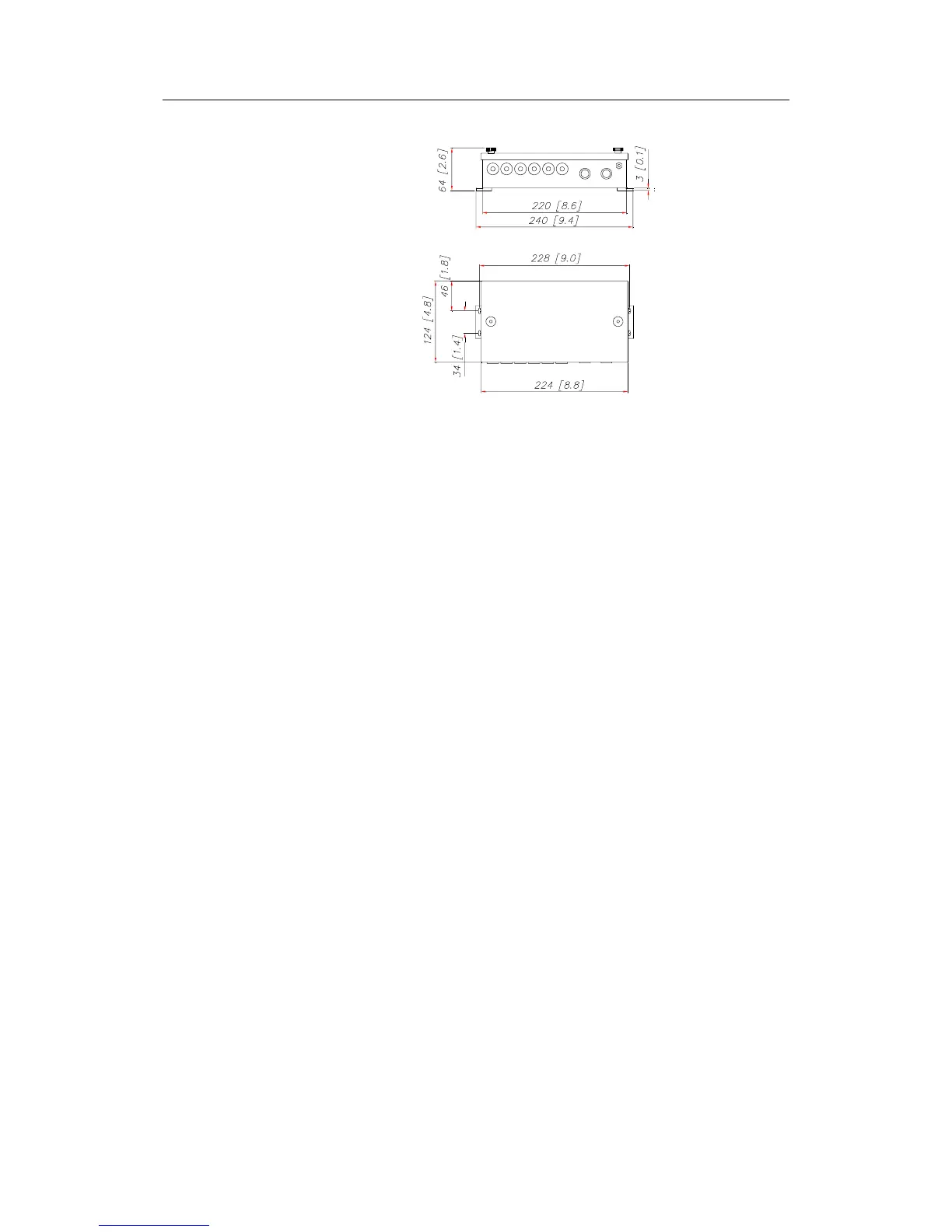

Figure 3-11 CI300X and NI300X - Dimensions
3.12 NI300X NMEA Interface
Dimensions:....................................See Figure 3-11
Weight: ...........................................0,9 kg (2,0 lbs)
Power consumption:.......................3 W
NMEA183 input/output:.................4 ports, max output load 20 mA
Heading output: ..............................Simrad/Anritsu and Furuno radar display
(clock/data, 0-5V, 50 msec.)
NMEA instrument supply: .............12V DC, max 0.25A
Robnet network interface: ..............2 network connectors
Cable inlets:....................................Rubber glands for cable diam 10-14 mm
Mounting: .......................................Bulkhead mount
Material: .........................................Epoxy coated aluminium
Environmental Protection:..............IP44
Temperature range:
Operation: ............................... 0 to +55 °C (+32 to +130 °F)
Storage:...................................–30 to +80 °C (–22 to +176 °F)
3.13 S35 NFU Steering Lever
Dimensions: ........................ See Figure 3-12
Weight: ............................... 1.4 kg (inclusive cable)
Max. inductive load:............ 4A/24V DC, 60mA/110V AC, 25mA/220V AC
Temperature range:.............. Storage: –30 to 80° C
Operation: –10 to 55° C.
Environmental protection:... IP56
Safe distance to compass:.... 0.5 m (1,6 ft.)
Power consumption (light): . 6 mA
Cable: .................................. 10 m cable with six wires connected through
bottom gland
Note ! Cable gland may be moved to the back side.
