Simrad AP35 User Manual

Installation
22083083H 73
DOCKSIDE
SETTINGS?
LANGUAGE ?
INTERFACE
SETUP?
SEA-TRIAL
SETTINGS?
INSTALLATION
MENU
SET RUDDER ZERO ?
RFC COMP. CALIBRATION ?
COMPASS OFFSET
AUTOMATIC TUNING ?
GPS 1
GPS 2
LC 1
LC 2
NAV 1
NAV 2
INSTR
RFC
MAGN
FLUXG.
GYRO
NMEA
INSTR
RADAR: Anritsu
Furuno
BOAT TYPE
DRIVE UNIT VOLTAGE
RUDDER FEEDBACK CALIBRATION ?
TURN RUDDER MAX STBD
TURN RUDDER MAX PORT
AUTOMATIC RUDDER TEST ?
TRANSITION SPEED
AUTOTRIM WORK
INITIAL RUDDER
MASTER RESET OF MEMORIES ?
SEA-TRIAL ITEMS
INTERFACE ITEMS
DOCKSIDE ITEMS
ENGLISH
NORSK
FRANCAIS
ESPANOL
ITALIANO
NEDERLANDS
SVENSKA
DEUTSCH
LANGUAGE ITEMS
ENTER INSTALLATION SETTINGS MENU BY PRESSING
AND HOLDING THE NAV BUTTON FOR 5 SECONDS
ENGLISH
SOFTWARE
PROGRAM
DATE
VIEW
PARAMETERS ?
RUDDER LO
CONT. RUDD. LO
AUTOTRIM LO
RUDD. LIM LO
RUDDER HI
CONT RUDD. HI
AUTOTRIM HI
RUDD LIM. HI
RUDDER WORK
PARAMETER ITEMS
Not e:
Dockside, Interface
and Seatrial Menus accessible
only i n STBY mode
Mode i n
STBY ?
YesNo
Output:
Input:
STBD
STBD
STBD
SELECT OR CONFIRM BY
ROTARY COURSE SELECTOR
GO TO NEXT MENU ITEM
BY PRESSING STBD BUTTON
REVERT TO PREVIOUS
MENU ITEM
SYMBOLS
PORT
STBD
STBD
STBD

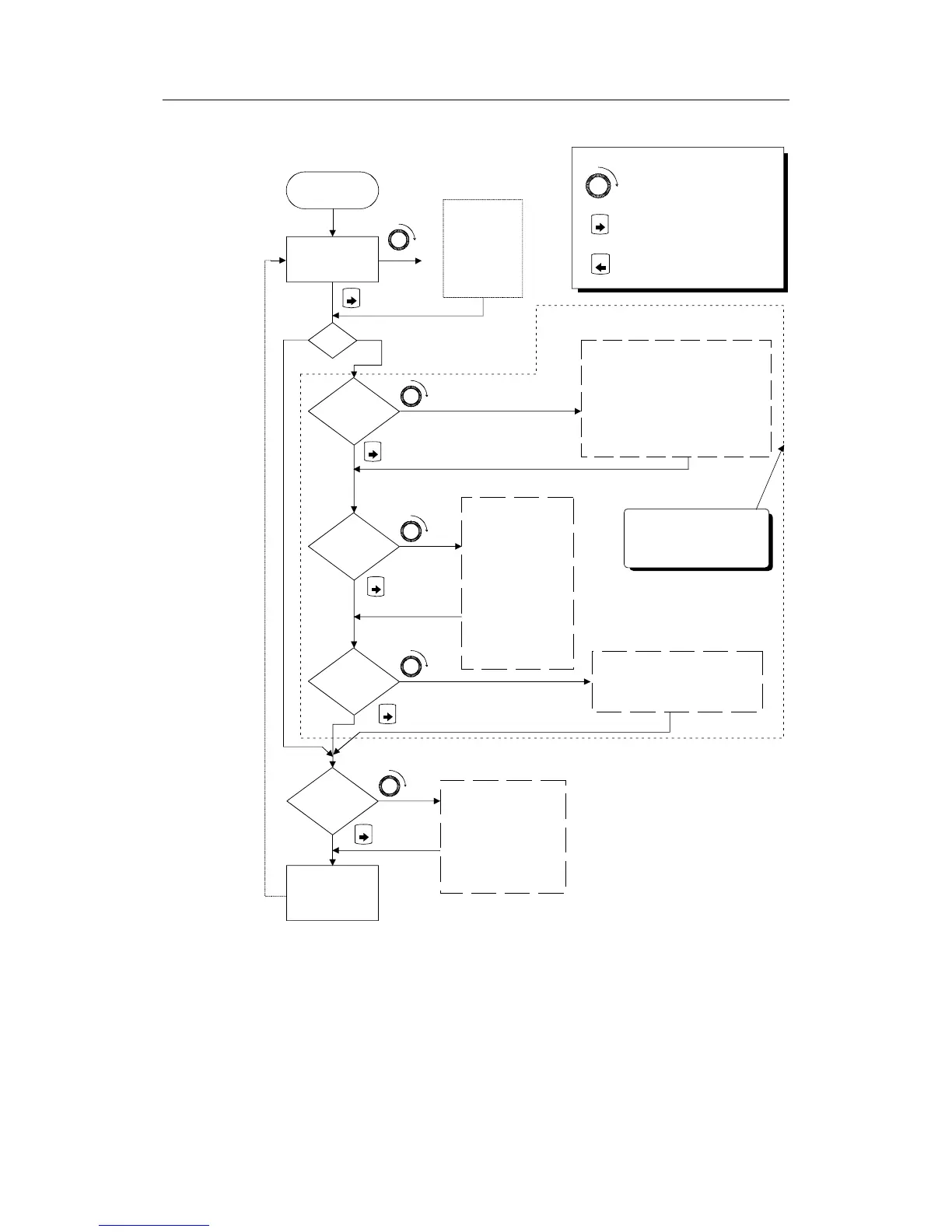

Figure 4-34 Installation settings menu
Dockside settings
The following menu items are accessible and can be set up in the Dockside
Setup Menu:
• Boat type
• Drive Unit voltage
• Rudder Feedback calibration
