© Jun 2022 6-12 TB24 Plus&26J Plus Maintenance Manual
REPAIR PROCEDURES
Table 6-5
NO. DESCRIPTION
1 Breather Plug
2 Screw
3 Standard Spring Washer
4 Motor Seat
5 O-ring
6 Spring
7 Piston
8 O-ring
9 Retainer Ring
10 O-ring
11 Retainer Ring
12 Outer Friction Disc
13 Inner Friction Disc
14 Adjuster Shim
15 Backing Plate
16 Standard Retainer Ring for Hole
17 Thread Plug
18 Compound Gasket
19 Brake Housing

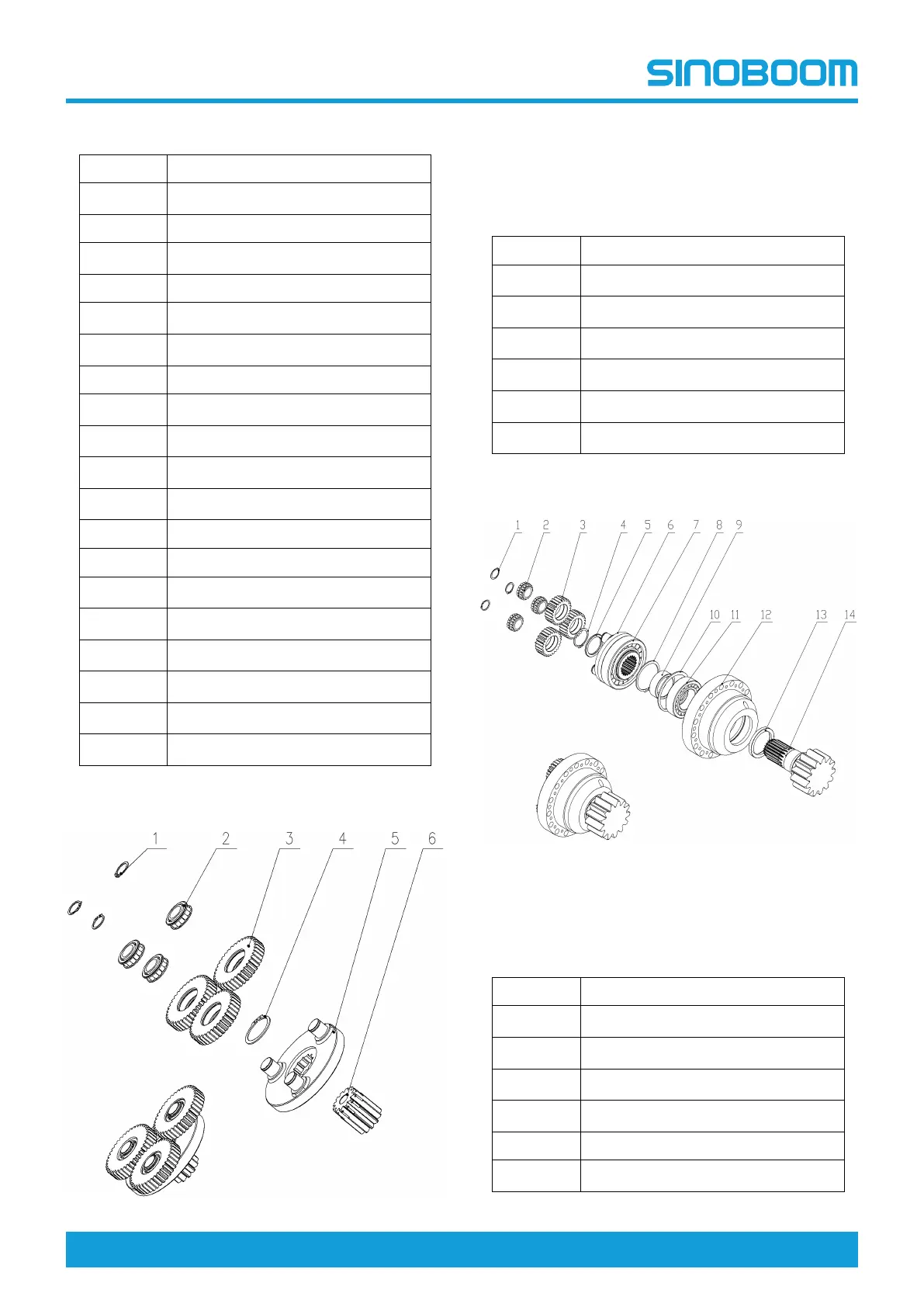

Figure 6-19 First Stage Planetary Gear Set
Assembly
Table 6-6
NO. DESCRIPTION
1 Standard Retainer Ring for Shaft
2 Bearing
3 First Stage Planet Gear
4 Retainer Ring for Shaft
5 First Stage Planet Gear Carrier
6 Second Stage Sun Gear
Figure 6-20 Second Stage Planetary Gear Set
Assembly
Table 6-7
NO. DESCRIPTION
1 Retainer Ring for Shaft
2 Bearing
3 Second Stage Planet Gear
4 Retainer Ring for Shaft
5 Gasket
6 Second Stage Planet Gear Carrier
To Next Page
