REPAIR PROCEDURES

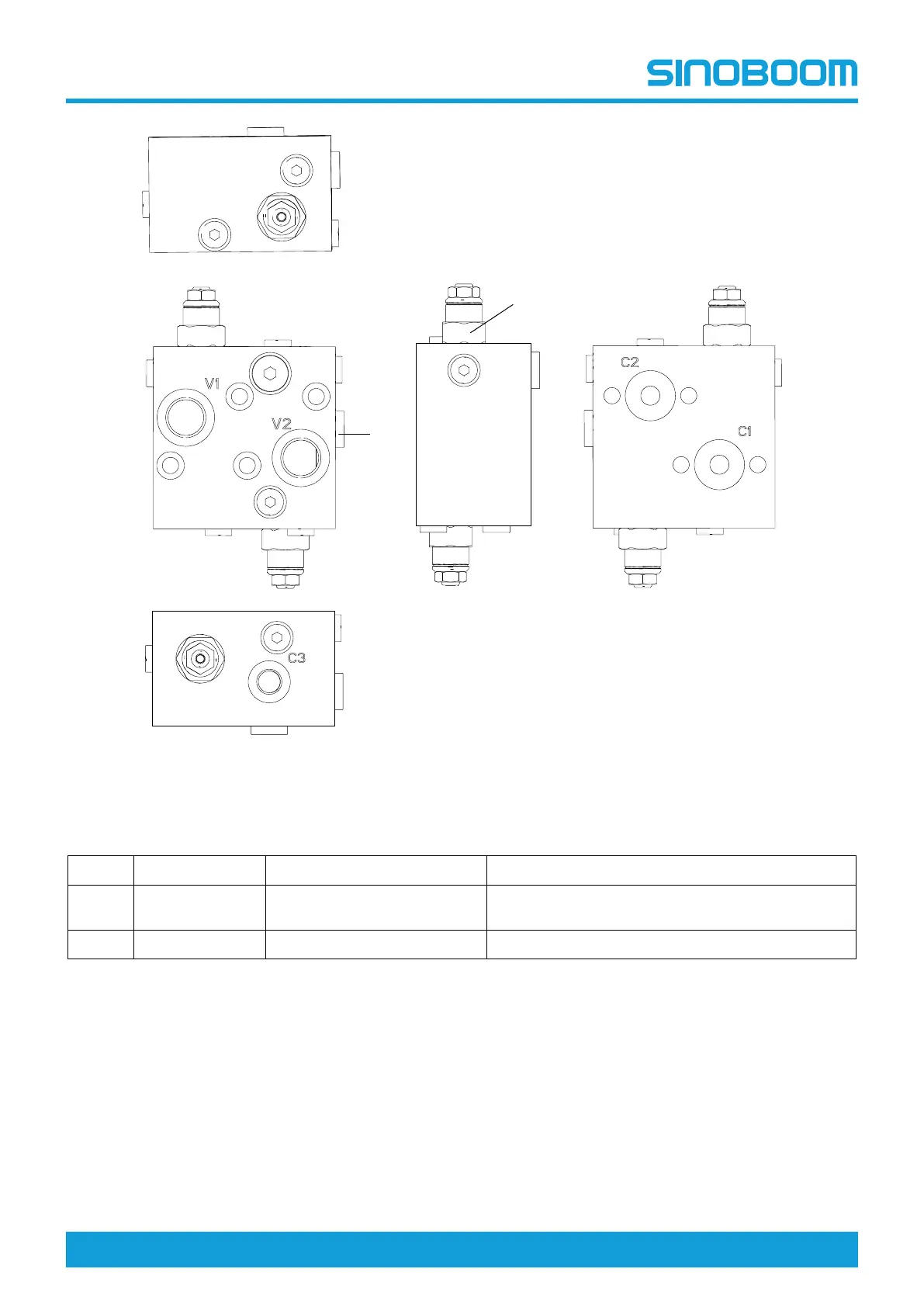

Figure 6-28 Slewing buffer valve （PN.202040003061）
Table 6-11 Slewing buffer valve （PN.202040003061）
NO. NAME
TORQUE
FUNCTION
1
Counterbalance
valve
40～45Nm (30～33ft-lb)
Maintain a balanced load
2 Shuttle valve \ Switch oil lines
1
2
