REPAIR PROCEDURES
TB24 Plus&26J Plus Maintenance Manual 6-21 © Jun 2022

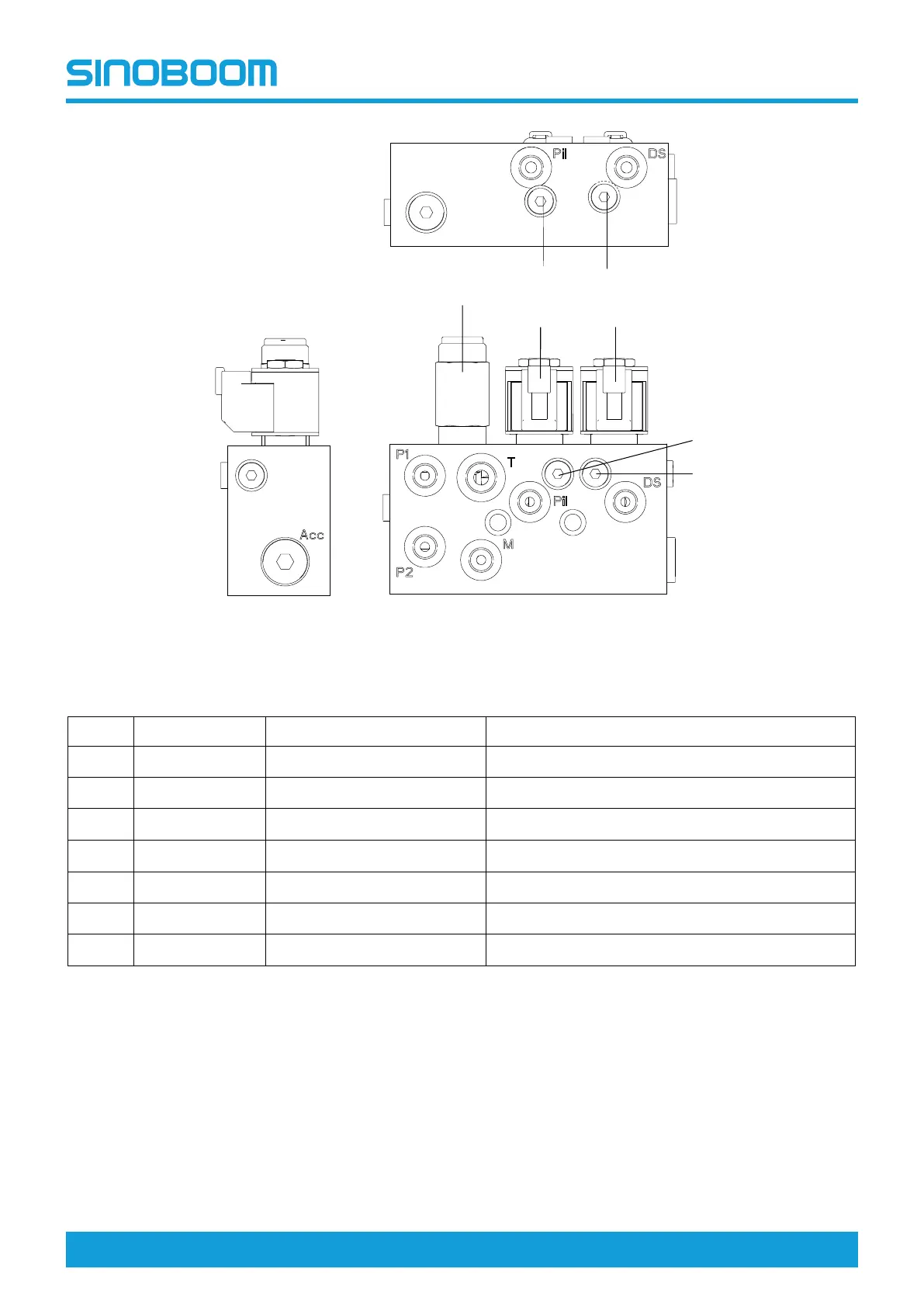

Figure 6-29 Brake/2-speed control valve (PN.202040000006)
Table 6-12 Brake/2-speed control valve (PN.202040000006)
NO. NAME
TORQUE
FUNCTION
1
Reducing valve 33.9Nm (25ft-lb) Control the braking/2-speed pressure
2
Damper
\ \
3–1 Solenoid valve
27.1Nm (20ft-lb) Control braking
3–2 Solenoid valve
27.1Nm (20ft-lb) Control high/low speed switching
4
Damper
\ \
5
Damper
\ \
6
Damper
\ \
1
2
3-1
4
6
5
3-2
