REPAIR PROCEDURES

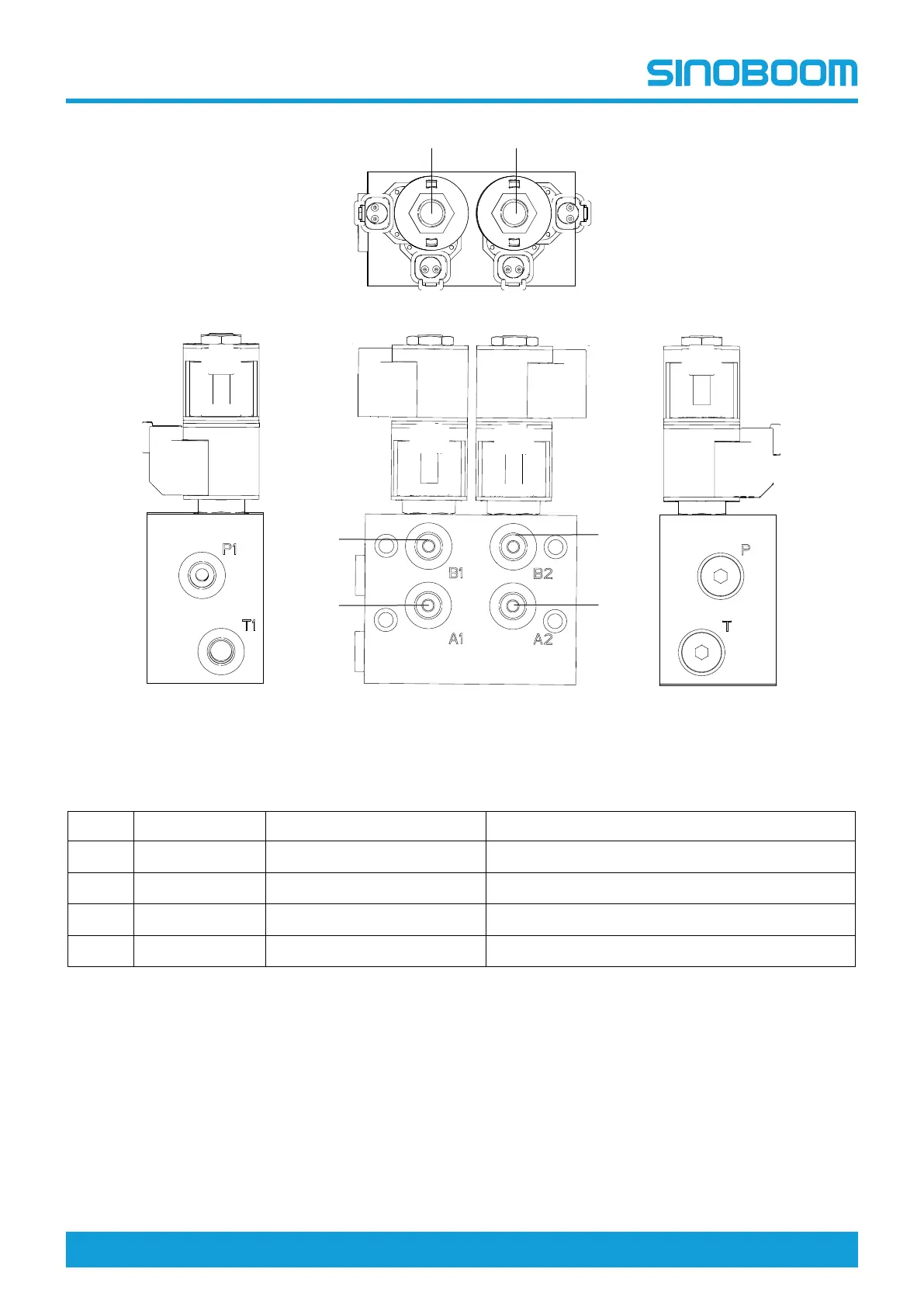

Figure 6-32 Platform duplex manifold (PN.202040000329)
Table 6-15 Platform duplex manifold (PN.202040000329)
NO. NAME
TORQUE
FUNCTION
1–1
Solenoid valve
40～45Nm (30～33ft-lb) Control jib lifting\lowering direction
1–2 Solenoid valve
40～45Nm (30～33ft-lb) Control platform rotation direction
2
Damper 5Nm (9ft-lb)
\
3
Damper 5Nm (9ft-lb)
\
2
2
3
3
1-1 1-2
