119

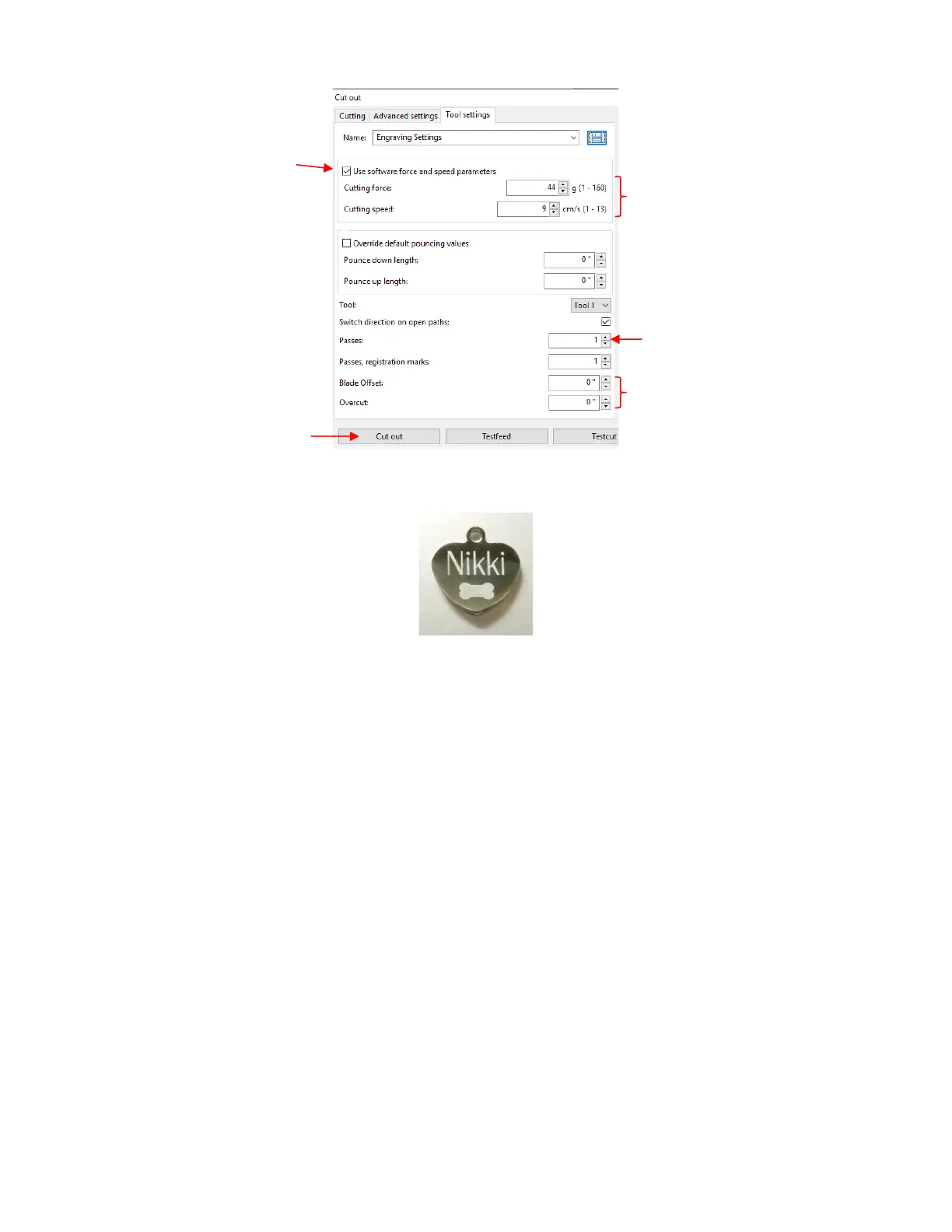

• After entering all settings, click on Cut out and the engraver will engrave the pattern onto the metal tag:

Mark this option

Enter Force and Speed

for engraving

Leave these set to 0

Enter Passes

Click on Cut out to start

the engraving process
