Skyjack SJ16 Service Manual

20
213558ADA
SJ12, SJ16

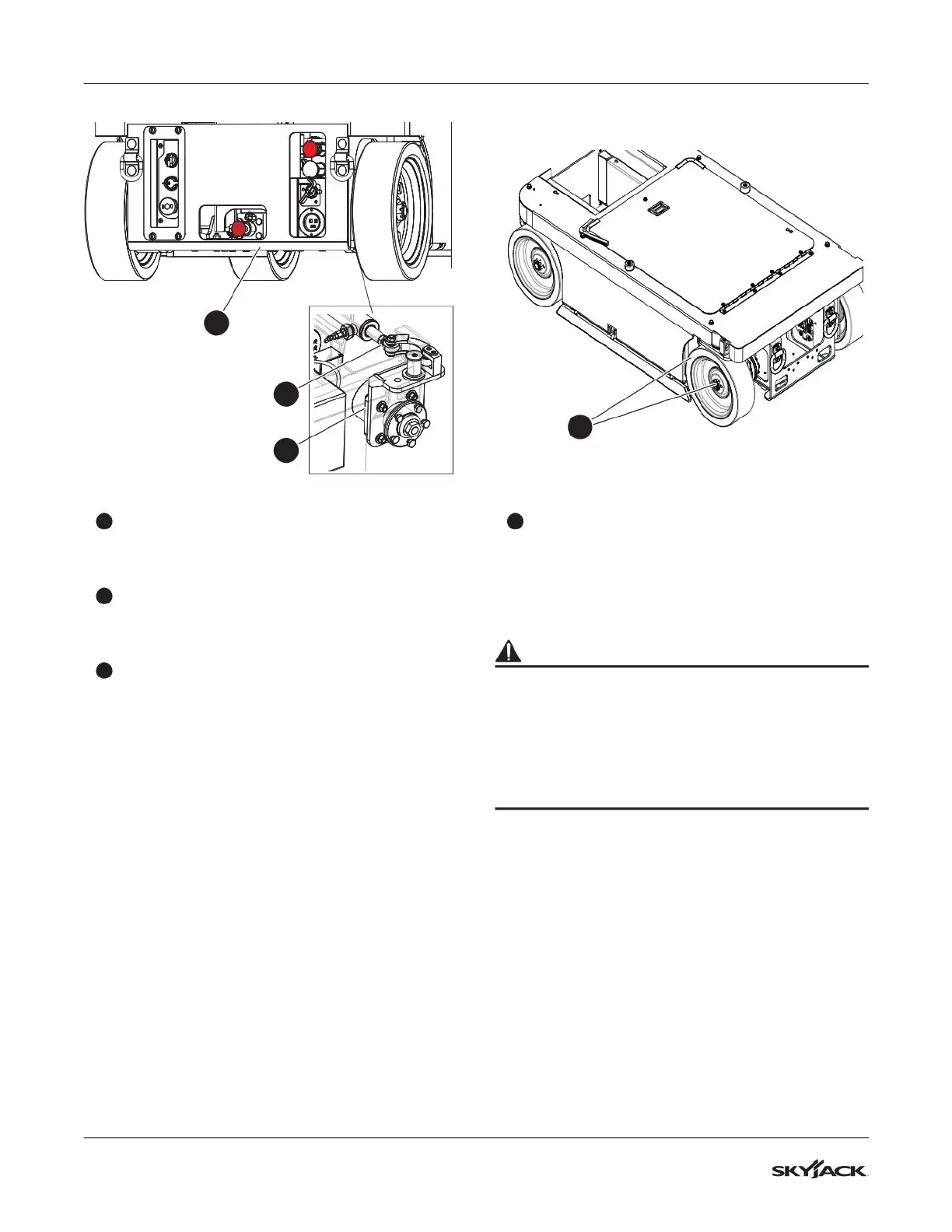

Section 1 – Scheduled Maintenance Base inspections
5
Base Weldment (B)
▪
There are no cracks in the welds or structure.
▪
There are no signs of deformation.
6
Grease points (B)
▪
Make sure there is no visible damage.
▪
Make sure there is no dirt or blockages.
7
Brakes (B, C)
▪
B - Frequent/periodic/pre-delivery Inspection
▪
Make sure there are no loose or missing
fasteners.
▪
Make sure there is no visible damage.
▪
C - Annual Inspection
▪
Make sure that the disc show no signs of wear
and/or physical damage
▪
Replace the disc or pin brakes if necessary.
8
Wheel/tire assembly (B, C)
A small amount of wear is permitted. But if any of the
wear or damage meets the criteria mentioned below,
the tire should be replaced.
WARNING
Do not use tires other than the tires that Skyjack
specifies for this MEWP. Do not mix different types
of tires or use tires that are not in good condition.
Only replace the tires with the same types that are
approved by Skyjack. The use of other tires can
make the MEWP less stable. If you do not obey,
there is a risk of death or serious injury.
8
5
7
6

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
