SMC Networks HRS012-A-10 Series User Manual

HRX-MM-N007
Chapter 4 Service Procedure
HRS Series 4.5 Replacement Procedure
4-17

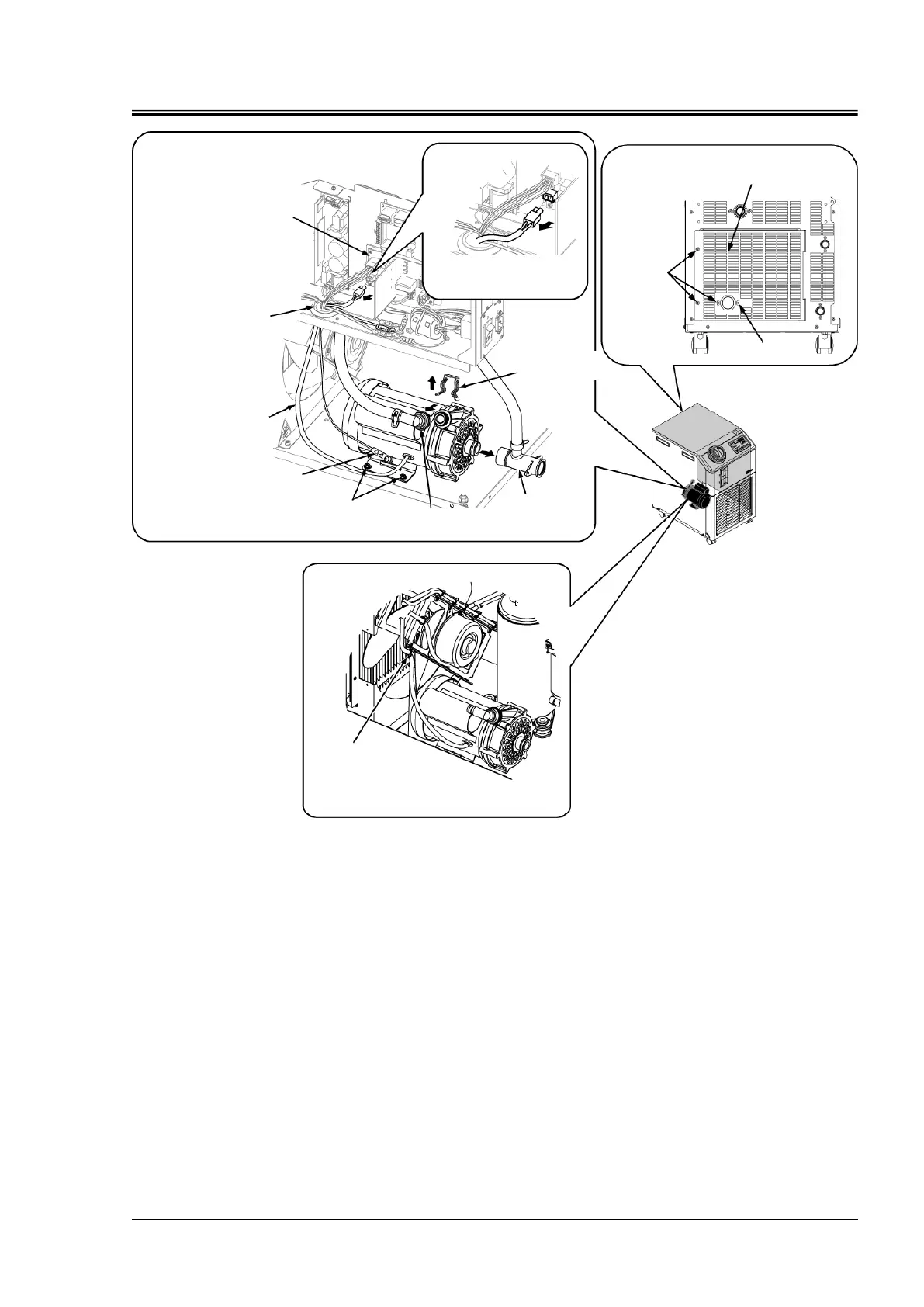

Fig. 4.5-3 Removal of pump
3 ． Support panel
Screw
7 ． Clip
7 ． Fitting B
5 ． Ground cable
Pump cable
Grommet
Power board
6 ． Fitting A
4 ． Removal
of connector
8. Bolt ×4
Screw
4 ． Cable tie
[For HRS030]
