13.4.2 SIM Power connections

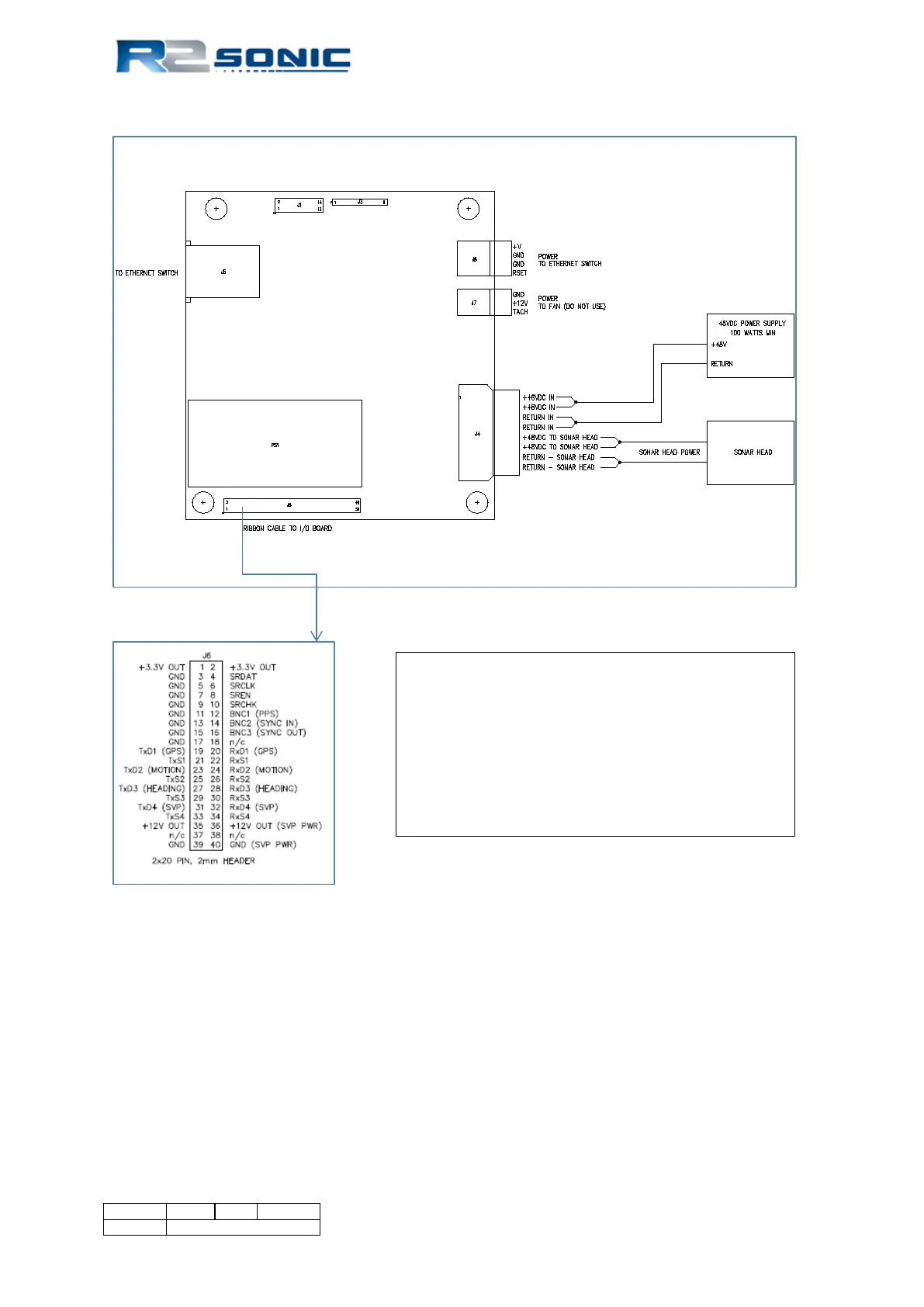

Figure 151: SIM Controller Power Connections
Figure 152: J6 Connector on SIM Controller board
The mating connector for J4:
Molex 43645-0800 (8-way Micro-FIT 3.0)
Molex 43030-0009 (socket contacts)
Molex 63819-0000 or 63811-2800 (crimping tool for socket contacts)
The mating connector for J6:
Amp 2-111623-4
Any 2mm 2x20 header connector may be used for this part.
1mm pitch ribbon cable is also required
Page 158 of 210
Version 5.0 Rev r002
Date 05-08-2014
Part No. 96000001
