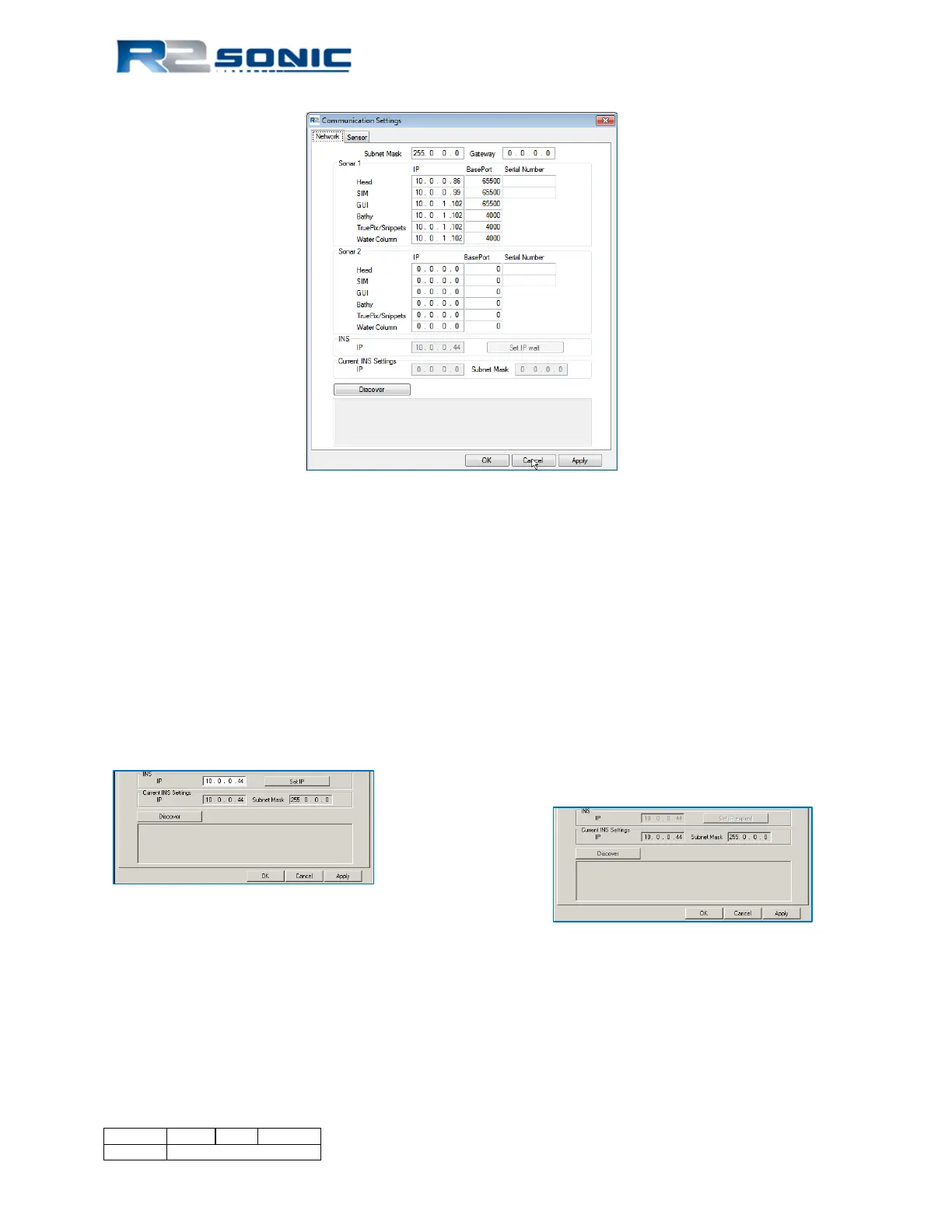

Figure 32: Sonic Control Network setup
Until the correct serial numbers are entered, there will be no communication. Once the correct
serial numbers are entered, click Apply and dots will be visible in the wedge display signifying
communication is established. Using Discover will guarantee that the serial numbers will be entered
correctly and verify Ethernet communication between devices.
5.3.2.2 INS Addressing
When using the I2NS system, the INS default IP is 10.0.0.44. Initially, the INS will not be ready to
receive an IP address. The ‘Set IP becomes active when the INS is ready to accept an IP (after one to
two minutes). When the time period, to set the IP address is over, the button changes to ‘Set IP
Expired’.
Figure 33: Set INS IP
Figure 34: Set IP Time Expired
Page 44 of 210
Version 5.0 Rev r002
Date 05-08-2014
Part No. 96000001
